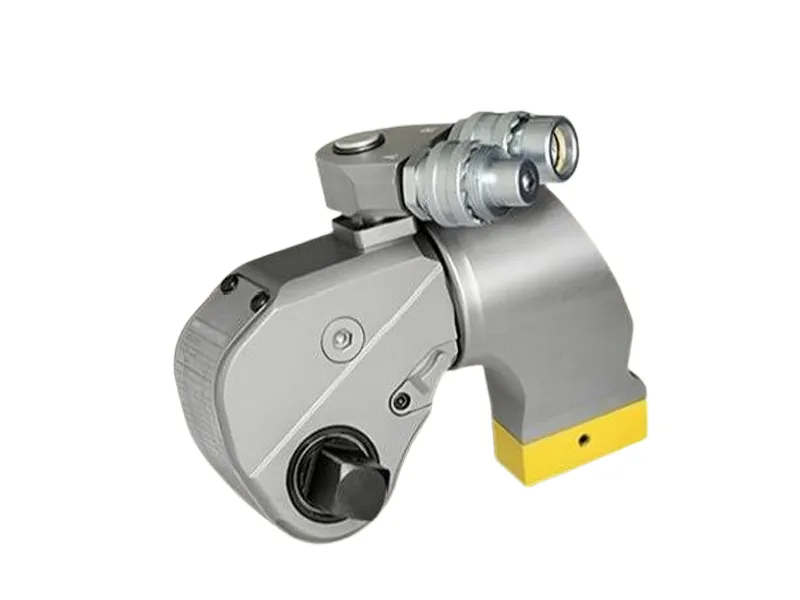

IBT series is a professional-grade hydraulic torque wrench that Jucai primarily targets the international market with. Made of aluminum-titanium alloy, an aviation material, this hydraulic torque wrench is lightweight yet highly durable.
Notably, the IBT series hydraulic torque wrenches come in 10 standard models ranging from 112N.m to 72000N.m. Its wide range of applicable specifications and extensive bolt coverage reflects Jucai's solid foundation and professionalism in international bolt services. Jucai provides global after-sales service and has complete supply capabilities. It has obtained both the German TUV certification and the EU CE certification.
Selection table for IBT series hydraulic torque wrenches:
Model | 07IBT | 1IBT | 3IBT | 5IBT | 8IBT | 101BT | 15IBT | 20IBT | 25IBT | 35IBT | 501BT |
Torque Range (N.m) | 112~1120 | 183~1837 | 451~4512 | 752~7528 | 1078~10780 | 1551~15516 | 2094~20942 | 2666~26664 | 3472~34725 | 4866~48666 | 7200~72000 |
Bolt specification (M) | 14~30 | 16~36 | 22~48 | 27~56 | 30~64 | 36-72 | 39~80 | 42~90 | 48~100 | 64~120 | 72~125 |
| Weight (Kg) | 1.8 | 2.5 | 5 | 8 | 11 | 15 | 22 | 26.5 | 35 | 50 | 87 |
Drive Shaft | 3/4” | 3/4” | 1” | 1-1/2" | 1-12" | 1-12" | 2” | 2-1/2" | 2-1/2" | 2-1/2" | 2-1/2" |
IBT Series Hydraulic Torque Wrench Size Chart:
Model | L1 | L2 | H1 | H2 | H3 | H4 | R | R1 | R2 | R3 |
07IBT | 110.8 | 139.3 | 42 | 65.8 | 76.2 | 108.1 | 75 | 20.5 | 68.3 | 25 |
1IBT | 144.5 | 173.5 | 50 | 72 | 96 | 131 | 91.5 | 26 | 85 | 29 |
3IBT | 178 | 229 | 68 | 95 | 127 | 176.5 | 123.5 | 34 | 114 | 40 |
5IBT | 210.5 | 270.5 | 80 | 123 | 149 | 199 | 140 | 39 | 137 | 46.5 |
8IBT | 222 | 293 | 90 | 134 | 167 | 217 | 165 | 47 | 153 | 47 |
10IBT | 245.5 | 317.5 | 100 | 142 | 182 | 232 | 178 | 51 | 154 | 58.5 |
15IBT | 292.8 | 361.3 | 112 | 167.4 | 206 | 276.4 | 188.5 | 56 | 174.2 | 67.1 |
201BT | 307.5 | 383.5 | 120 | 183 | 220 | 270 | 213 | 59 | 186 | 71 |
25IBT | 323 | 401 | 137 | 200 | 247 | 297 | 228 | 66 | 199 | 72.5 |
35IBT | 372.5 | 496.5 | 153 | 216 | 282 | 332 | 243.5 | 77 | 241 | 89.5 |
50IBT | 400 | 516 | 160 | 223 | 291 | 341 | 258 | 81 | 259 | 97.5 |
Maximum working pressure is 70MPa, with an accuracy of ±3%.
With a total of 10 models ranging from 112 to 72000N.m, it is the product with the most complete range of models and the widest bolt coverage among similar products on the market.
360°*180°rotating oil pipe joint, with no space constraints for use.
Square drive connects to a high-strength socket for work, and the bolt has a wide range of adaptability.
Trigger-type latch allows the 360° unadjusted reaction arm to be placed on any fixed pivot point.
Aluminium-titanium alloy one-piece body, coupled with the high-strength and high-toughness new anti-loose joint, ensures smooth oil flow.
