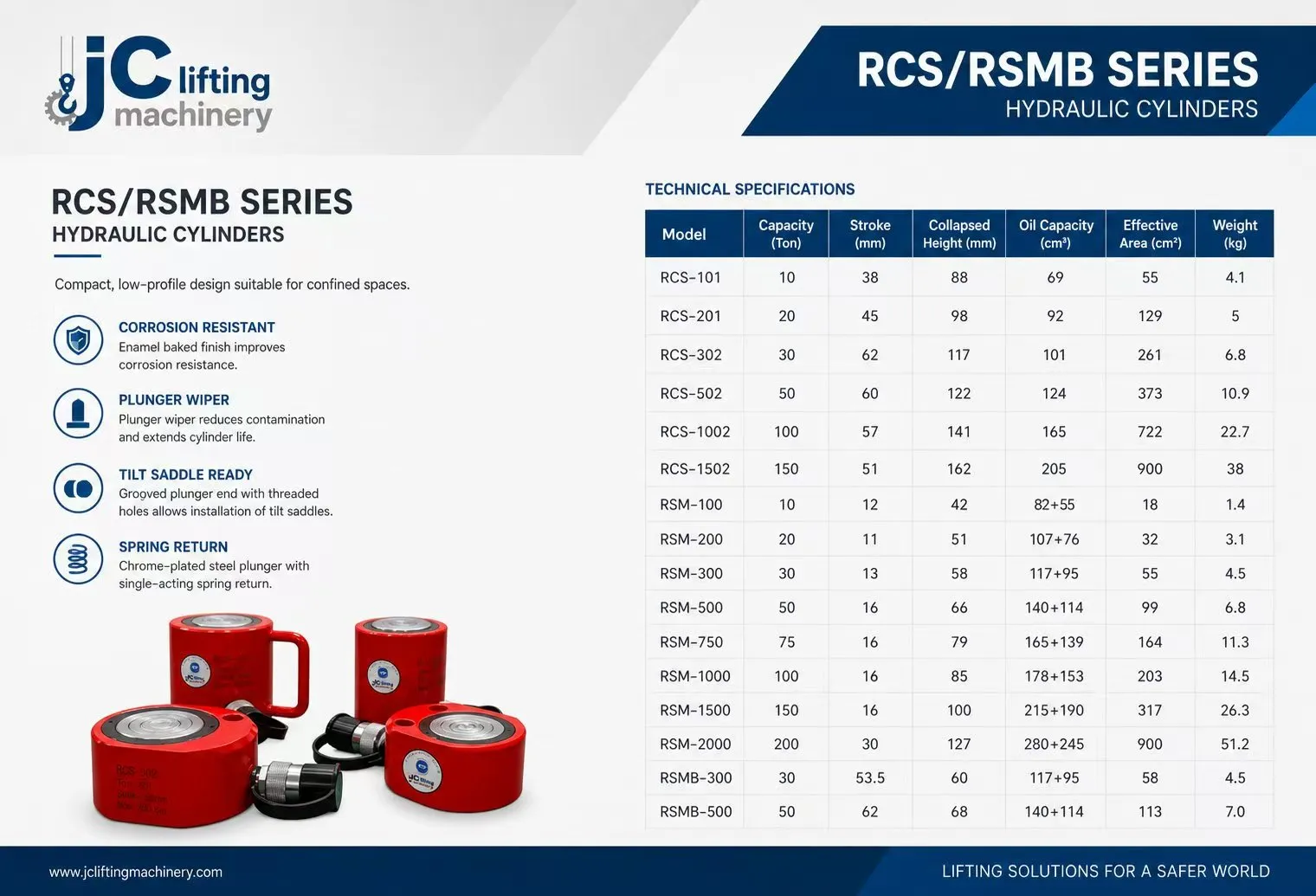

Compact, low-profile design suitable for confined spaces.
Enamel baked finish improves corrosion resistance.
Plunger wiper reduces contamination and extends cylinder life.
Grooved plunger end with threaded holes allows installation of tilt saddles.
Chrome-plated steel plunger with single-acting spring return.
| Mod | Load (Ton) | Stroke (mm) | Body Height (mm) | Cylinder OD (mm) | Hydraulic Oil Capacity (cc) | Piston Diameter (mm) | Weight (Kg) |
| RCS-101 | 10Ton | 38 | 88 | 69 | 55 | 38.1 | 4.1 |
| RCS-201 | 20Ton | 45 | 98 | 92 | 129 | 50.8 | 5 |
| RCS-302 | 30Ton | 62 | 117 | 101 | 261 | 66.5 | 6.8 |
| RCS-502 | 50Ton | 60 | 122 | 124 | 373 | 69.8 | 10.9 |
| RCS-1002 | 100Ton | 57 | 141 | 165 | 722 | 92.2 | 22.7 |
| RCS-1502 | 150Ton | 51 | 162 | 205 | 900 | 114 | 38 |
| RSM-100 | 10Ton | 12 | 42 | 82*55 | 18 | 38.1 | 1.4 |
| RSM-200 | 20Ton | 11 | 51 | 107*76 | 32 | 50.8 | 3.1 |
| RSM-300 | 30Ton | 13 | 58 | 117*95 | 55 | 63.4 | 4.5 |
| RSM-500 | 50Ton | 16 | 66 | 140*114 | 99 | 69.8 | 6.8 |
| RSM-750 | 75Ton | 16 | 79 | 165*139 | 164 | 82.6 | 11.3 |
| RSM-1000 | 100Ton | 16 | 85 | 178*153 | 203 | 92.2 | 14.5 |
| RSM-1500 | 150Ton | 16 | 100 | 215*190 | 317 | 114.3 | 26.3 |
| RSM-2000 | 200Ton | 30 | 127 | 280*245 | 900 | 150.6 | 51.2 |
| RSMB-300 | 30Ton | 53.5 | 60 | 117*95 | 58 | 65 | 4.5 |
| RSMB-500 | 50Ton | 62 | 68 | 140*114 | 113 | 75 | 7.0 |
