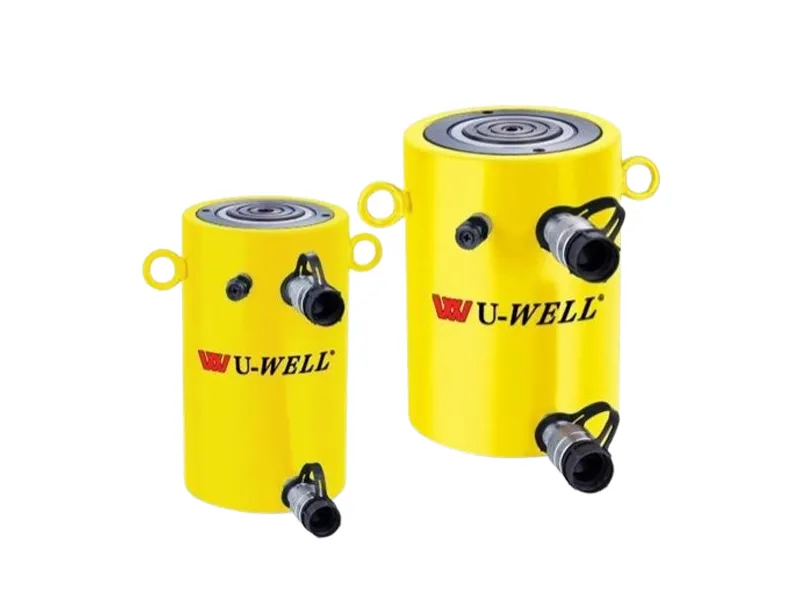

Double-acting, for positive retraction.
Integral stop ring provides piston blow-out protection.
Safety valvein retract side of cylinder helps to prevent damage in case of accidental over-pressurization.
Plunger wiper reduces contamination, extending cylinder life.
Baked enamel finish and plated pistons provide.
Cylinder Capacity ton (kN) | Stroke (mm) | Model Number | Cylinder Effective Area (cm²) | Oil Capacity (cm³) | Collapsed Height (mm) | ||
Push | Pull | Push | Pull | ||||
50 (539) | 50 | CLRG-502 | 77.0 | 38.5 | 385 | 192 | 162 |
100 | CLRG-504 | 77.0 | 38.5 | 770 | 385 | 212 | |
150 | CLRG-506 | 77.0 | 38.5 | 1155 | 577 | 262 | |
200 | CLRG-508 | 77.0 | 38.5 | 1540 | 770 | 312 | |
250 | CLRG-5010 | 77.0 | 38.5 | 1924 | 962 | 362 | |
300 | CLRG-5012 | 77.0 | 38.5 | 2309 | 1155 | 412 | |
100 (929) | 50 | CLRG-1002 | 132.7 | 61.9 | 664 | 309 | 179 |
100 | CLRG-1004 | 132.7 | 61.9 | 1327 | 619 | 229 | |
150 | CLRG-1006 | 132.7 | 61.9 | 1991 | 928 | 279 | |
200 | CLRG-1008 | 132.7 | 61.9 | 2655 | 1237 | 329 | |
250 | CLRG-10010 | 132.7 | 61.9 | 3318 | 1546 | 379 | |
300 | CLRG-10012 | 132.7 | 61.9 | 3982 | 1856 | 429 | |
150 (1390) | 50 | CLRG-1502 | 198.6 | 96.5 | 993 | 482 | 196 |
100 | CLRG-1504 | 198.6 | 96.5 | 1986 | 965 | 246 | |
150 | CLRG-1506 | 198.6 | 96.5 | 2978 | 1447 | 296 | |
200 | CLRG-1508 | 198.6 | 96.5 | 3971 | 1930 | 346 | |
250 | CLRG-15010 | 198.6 | 96.5 | 4964 | 2412 | 396 | |
300 | CLRG-15012 | 198.6 | 96.5 | 5957 | 2895 | 446 | |
200 (1861) | 50 | CLRG-2002 | 265.9 | 127.0 | 1330 | 635 | 212 |
150 | CLRG-2006 | 265.9 | 127.0 | 3989 | 1905 | 312 | |
300 | CLRG-20012 | 265.9 | 127.0 | 7977 | 3809 | 462 | |
250 (2565) | 50 | CLRG-2502 | 366.4 | 152.6 | 1832 | 763 | 235 |
150 | CLRG-2506 | 366.4 | 152.6 | 5497 | 2289 | 335 | |
300 | CLRG-25012 | 366.4 | 152.6 | 10993 | 4578 | 485 | |
300 (3193) | 50 | CLRG-3002 | 456.2 | 151.4 | 2281 | 757 | 322 |
150 | CLRG-3006 | 456.2 | 151.4 | 6843 | 2270 | 422 | |
300 | CLRG-30012 | 456.2 | 151.4 | 13685 | 4541 | 572 | |
400 (3919) | 50 | CLRG-4002 | 559.9 | 193.5 | 2800 | 967 | 374 |
150 | CLRG-4006 | 559.9 | 193.5 | 8399 | 2902 | 474 | |
300 | CLRG-40012 | 559.9 | 193.5 | 16797 | 5804 | 624 | |
500 (5114) | 50 | CLRG-5002 | 730.6 | 247.6 | 3653 | 1238 | 419 |
150 | CLRG-5006 | 730.6 | 247.6 | 10959 | 3713 | 519 | |
300 | CLRG-50012 | 730.6 | 247.6 | 21918 | 7427 | 669 | |
600 (5987) | 50 | CLRG-6002 | 855.3 | 295.4 | 4276 | 1477 | 429 |
150 | CLRG-6006 | 855.3 | 295.4 | 12829 | 4431 | 529 | |
300 | CLRG-60012 | 855.3 | 295.4 | 25659 | 8862 | 679 | |
800 (8234) | 50 | CLRG-8002 | 1176.3 | 387.0 | 5881 | 1935 | 484 |
150 | CLRG-8006 | 1176.3 | 387.0 | 17644 | 5806 | 584 | |
300 | CLRG-80012 | 1176.3 | 387.0 | 35288 | 11611 | 734 | |
1000 (10260) | 50 | CLRG-10002 | 1465.7 | 541.7 | 7329 | 2709 | 564 |
150 | CLRG-10006 | 1465.7 | 541.7 | 21986 | 8126 | 664 | |
300 | CLRG-100012 | 1465.7 | 541.7 | 43972 | 16252 | 814 | |
.
| Base Mounting Hole Dimensions(mm) | |||
| Model/Capacity ton | Bolt Circle U | Thread Size V | Min. Thread Depth Z |
| CLRG-50 | 65 | 2x M12 | 22 |
| CLRG-100 | 95 | 2x M12 | 22 |
| CLRG-1 50 | 130 | 2x M12 | 22 |
| CLRG-200 | 165 | 3x M12 | 22 |
| CLRG-250 | 190 | 3x M12 | 22 |
| CLRG-300 | 180 | 3xM16 | 30 |
| CLRG-400 | 205 | 3x M16 | 30 |
| CLRG-500 | 250 | 3x M24 | 36 |
| CLRG-600 | 275 | 3x M24 | 36 |
| CLRG-800 | 330 | 3x M24 | 36 |
| CLRG-1000 | 375 | 3x M24 | 36 |
Cylinder Capacity ton (kN) | Stroke (mm) | Model Number | Maximum Cylinder Capacity (kN) | Cylinder Effective Area (cm²) | Oil Capacity (cm³) | |||
Push | Pull | Push | Pull | Push | Pull | |||
50 | 50 | CLRG-502 | 539 | 269 | 77.0 | 38.5 | 385 | 192 |
100 | CLRG-504 | 539 | 269 | 77.0 | 38.5 | 770 | 385 | |
150 | CLRG-506 | 539 | 269 | 77.0 | 38.5 | 1155 | 577 | |
200 | CLRG-508 | 539 | 269 | 77.0 | 38.5 | 1540 | 770 | |
250 | CLRG-5010 | 539 | 269 | 77.0 | 38.5 | 1924 | 962 | |
300 | CLRG-5012 | 539 | 269 | 77.0 | 38.5 | 2309 | 1155 | |
100 | 50 | CLRG-1002 | 929 | 433 | 132.7 | 61.9 | 664 | 309 |
100 | CLRG-1004 | 929 | 433 | 132.7 | 61.9 | 1327 | 619 | |
150 | CLRG-1006 | 929 | 433 | 132.7 | 61.9 | 1991 | 928 | |
200 | CLRG-1008 | 929 | 433 | 132.7 | 61.9 | 2655 | 1237 | |
250 | CLRG-10010 | 929 | 433 | 132.7 | 61.9 | 3318 | 1546 | |
300 | CLRG-10012 | 929 | 433 | 132.7 | 61.9 | 3982 | 1856 | |
150 | 50 | CLRG-1502 | 1390 | 675 | 198.6 | 96.5 | 993 | 482 |
100 | CLRG-1504 | 1390 | 675 | 198.6 | 96.5 | 1986 | 965 | |
150 | CLRG-1506 | 1390 | 675 | 198.6 | 96.5 | 2978 | 1447 | |
200 | CLRG-1508 | 1390 | 675 | 198.6 | 96.5 | 3971 | 1930 | |
250 | CLRG-15010 | 1390 | 675 | 198.6 | 96.5 | 4964 | 2412 | |
300 | CLRG-15012 | 1390 | 675 | 198.6 | 96.5 | 5957 | 2895 | |
200 | 50 | CLRG-2002 | 1861 | 889 | 265.9 | 127.0 | 1330 | 635 |
150 | CLRG-2006 | 1861 | 889 | 265.9 | 127.0 | 3989 | 1905 | |
300 | CLRG-20012 | 1861 | 889 | 265.9 | 127.0 | 7977 | 3809 | |
250 | 50 | CLRG-2502 | 2565 | 1068 | 366.4 | 152.6 | 1832 | 763 |
150 | CLRG-2506 | 2565 | 1068 | 366.4 | 152.6 | 5497 | 2289 | |
300 | CLRG-25012 | 2565 | 1068 | 366.4 | 152.6 | 10993 | 4578 | |
300 | 50 | CLRG-3002 | 3193 | 1060 | 456.2 | 151.4 | 2281 | 757 |
150 | CLRG-3006 | 3193 | 1060 | 456.2 | 151.4 | 6843 | 2270 | |
300 | CLRG-30012 | 3193 | 1060 | 456.2 | 151.4 | 13685 | 4541 | |
400 | 50 | CLRG-4002 | 3919 | 1354 | 559.9 | 193.5 | 2800 | 967 |
150 | CLRG-4006 | 3919 | 1354 | 559.9 | 193.5 | 8399 | 2902 | |
300 | CLRG-40012 | 3919 | 1354 | 559.9 | 193.5 | 16797 | 5804 | |
500 | 50 | CLRG-5002 | 5114 | 1733 | 730.6 | 247.6 | 3653 | 1238 |
150 | CLRG-5006 | 5114 | 1733 | 730.6 | 247.6 | 10959 | 3713 | |
300 | CLRG-50012 | 5114 | 1733 | 730.6 | 247.6 | 21918 | 7427 | |
600 | 50 | CLRG-6002 | 5987 | 2068 | 855.3 | 295.4 | 4276 | 1477 |
150 | CLRG-6006 | 5987 | 2068 | 855.3 | 295.4 | 12829 | 4431 | |
300 | CLRG-60012 | 5987 | 2068 | 855.3 | 295.4 | 25659 | 8862 | |
800 | 50 | CLRG-8002 | 8234 | 2709 | 1176.3 | 387.0 | 5881 | 1935 |
150 | CLRG-8006 | 8234 | 2709 | 1176.3 | 387.0 | 17644 | 5806 | |
300 | CLRG-80012 | 8234 | 2709 | 1176.3 | 387.0 | 35288 | 11611 | |
1000 | 50 | CLRG-10002 | 10260 | 3792 | 1465.7 | 541.7 | 7329 | 2709 |
150 | CLRG-10006 | 10260 | 3792 | 1465.7 | 541.7 | 21986 | 8126 | |
300 | CLRG-100012 | 10260 | 3792 | 1465.7 | 541.7 | 43972 | 16252 | |
Collaps Height A (mm) | Extend Height B (mm) | Outside Dia. D (mm) | Cyl. Bore Dia. E (mm) | Plunger Dia. F (mm) | Base to Advance Port H (mm) | Top to Retract Port I (mm) | Standard Saddle Dia. J (mm) | Saddle Protr from Plgr K (mm) | Depth of Plunger Hole L (mm) | Weight (kg) | Model Number | Optional Tilt Saddle | ||
Saddle Dia. J1 (mm) | Saddle Height K1 (mm) | Saddle Model Number | ||||||||||||
162 | 212 | 130 | 99 | 70 | 52 | 33 | 50 | 1 | 19 | 17 | CLRG-502 | 50 | 24 | CATG-50 |
212 | 312 | 130 | 99 | 70 | 52 | 33 | 50 | 1 | 19 | 20 | CLRG-504 | 50 | 24 | CATG-50 |
262 | 412 | 130 | 99 | 70 | 52 | 33 | 50 | 1 | 19 | 23 | CLRG-506 | 50 | 24 | CATG-50 |
312 | 512 | 130 | 99 | 70 | 52 | 33 | 50 | 1 | 19 | 27 | CLRG-508 | 50 | 24 | CATG-50 |
362 | 612 | 130 | 99 | 70 | 52 | 33 | 50 | 1 | 19 | 31 | CLRG-5010 | 50 | 24 | CATG-50 |
412 | 712 | 130 | 99 | 70 | 52 | 33 | 50 | 1 | 19 | 34 | CLRG-5012 | 50 | 24 | CATG-50 |
179 | 229 | 165 | 130 | 95 | 54 | 48 | 75 | 1 | 19 | 29 | CLRG-1002 | 73 | 29 | CATG-100 |
229 | 329 | 165 | 130 | 95 | 54 | 48 | 75 | 1 | 19 | 34 | CLRG-1004 | 73 | 29 | CATG-100 |
279 | 429 | 165 | 130 | 95 | 54 | 48 | 75 | 1 | 19 | 40 | CLRG-1006 | 73 | 29 | CATG-100 |
329 | 529 | 165 | 130 | 95 | 54 | 48 | 75 | 1 | 19 | 46 | CLRG-1008 | 73 | 29 | CATG-100 |
379 | 629 | 165 | 130 | 95 | 54 | 48 | 75 | 1 | 19 | 52 | CLRG-10010 | 73 | 29 | CATG-100 |
429 | 729 | 165 | 130 | 95 | 54 | 48 | 75 | 1 | 19 | 58 | CLRG-10012 | 73 | 29 | CATG-100 |
196 | 246 | 205 | 159 | 114 | 61 | 56 | 94 | 1 | 19 | 39 | CLRG-1502 | 91 | 31 | CATG-150 |
246 | 346 | 205 | 159 | 114 | 61 | 56 | 94 | 1 | 19 | 52 | CLRG-1504 | 91 | 31 | CATG-150 |
296 | 446 | 205 | 159 | 114 | 61 | 56 | 94 | 1 | 19 | 65 | CLRG-1506 | 91 | 31 | CATG-150 |
346 | 546 | 205 | 159 | 114 | 61 | 56 | 94 | 1 | 19 | 78 | CLRG-1508 | 91 | 31 | CATG-150 |
396 | 646 | 205 | 159 | 114 | 61 | 56 | 94 | 1 | 19 | 92 | CLRG-15010 | 91 | 31 | CATG-150 |
446 | 746 | 205 | 159 | 114 | 61 | 56 | 94 | 1 | 19 | 105 | CLRG-15012 | 91 | 31 | CATG-150 |
212 | 262 | 235 | 184 | 133 | 67 | 66 | 113 | 1 | 24 | 55 | CLRG-2002 | 118 | 35 | CATG-200 |
312 | 462 | 235 | 184 | 133 | 67 | 66 | 113 | 1 | 24 | 91 | CLRG-2006 | 118 | 35 | CATG-200 |
462 | 762 | 235 | 184 | 133 | 67 | 66 | 113 | 1 | 24 | 146 | CLRG-20012 | 118 | 35 | CATG-200 |
235 | 285 | 275 | 216 | 165 | 73 | 78 | 145 | 1 | 24 | 89 | CLRG-2502 | 144 | 46 | CATG-250 |
335 | 485 | 275 | 216 | 165 | 73 | 78 | 145 | 1 | 24 | 136 | CLRG-2506 | 144 | 46 | CATG-250 |
485 | 785 | 275 | 216 | 165 | 73 | 78 | 145 | 1 | 24 | 207 | CLRG-25012 | 144 | 46 | CATG-250 |
322 | 372 | 310 | 241 | 197 | 101 | 75 | 177 | 1 | 19 | 184 | CLRG-3002 | 160 | 62 | CATG-300 |
422 | 572 | 310 | 241 | 197 | 101 | 75 | 177 | 1 | 19 | 232 | CLRG-3006 | 160 | 62 | CATG-300 |
572 | 872 | 310 | 241 | 197 | 101 | 75 | 177 | 1 | 19 | 303 | CLRG-30012 | 160 | 62 | CATG-300 |
374 | 424 | 350 | 267 | 216 | 114 | 105 | 196 | 3 | 27 | 270 | CLRG-4002 | 193 | 51 | CATG-400 |
474 | 624 | 350 | 267 | 216 | 114 | 105 | 196 | 3 | 27 | 330 | CLRG-4006 | 193 | 51 | CATG-400 |
624 | 924 | 350 | 267 | 216 | 114 | 105 | 196 | 3 | 27 | 421 | CLRG-40012 | 193 | 51 | CATG-400 |
419 | 469 | 400 | 305 | 248 | 114 | 135 | 228 | 3 | 27 | 401 | CLRG-5002 | 228 | 63 | CATG-500 |
519 | 669 | 400 | 305 | 248 | 114 | 135 | 228 | 3 | 27 | 480 | CLRG-5006 | 228 | 63 | CATG-500 |
669 | 969 | 400 | 305 | 248 | 114 | 135 | 228 | 3 | 27 | 599 | CLRG-50012 | 228 | 63 | CATG-500 |
429 | 479 | 430 | 330 | 267 | 114 | 135 | 247 | 3 | 27 | 474 | CLRG-6002 | 241 | 76 | CATG-600 |
529 | 679 | 430 | 330 | 267 | 114 | 135 | 247 | 3 | 27 | 565 | CLRG-6006 | 241 | 76 | CATG-600 |
679 | 979 | 430 | 330 | 267 | 114 | 135 | 247 | 3 | 27 | 701 | CLRG-60012 | 241 | 76 | CATG-600 |
484 | 534 | 505 | 387 | 317 | 149 | 135 | 297 | 3 | 27 | 741 | CLRG-8002 | 287 | 75 | CATG-800 |
584 | 734 | 505 | 387 | 317 | 149 | 135 | 297 | 3 | 27 | 868 | CLRG-8006 | 287 | 75 | CATG-800 |
734 | 1034 | 505 | 387 | 317 | 149 | 135 | 297 | 3 | 27 | 1058 | CLRG-80012 | 287 | 75 | CATG-800 |
564 | 614 | 560 | 432 | 343 | 174 | 170 | 323 | 3 | 27 | 1062 | CLRG-10002 | 311 | 93 | CATG-1000 |
664 | 814 | 560 | 432 | 343 | 174 | 170 | 323 | 3 | 27 | 1213 | CLRG-10006 | 311 | 93 | CATG-1000 |
814 | 1114 | 560 | 432 | 343 | 174 | 170 | 323 | 3 | 27 | 1439 | CLRG-100012 | 311 | 93 | CATG-1000 |
