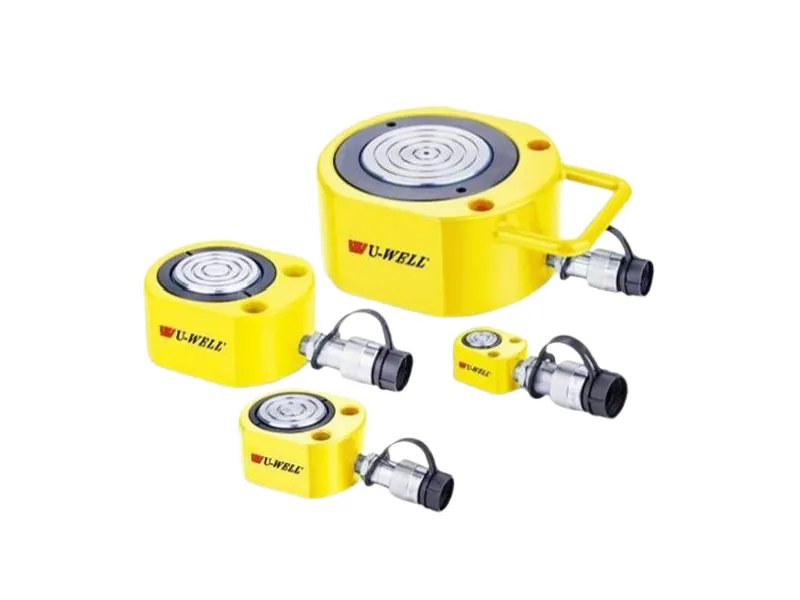

Compact, flat design for use where most other cylinders will not fit
Single-acting, spring return
RSM-750, 1000 and 1500 have handles for easy carrying
Mounting holes pemit easy fixturing
Baked enamel finish for increased corrosion resistance
Hard chrome plated high quality steel plungers
Grooved plunger ends require no saddle.
RSM Cylinder Mounting Hole Dimensions(mm) | ||||
Model Number | Bolt Circle U1 | Hole Dia. V | Counter Bore Dia. | Counter Bore Depth |
RSM-50 | 28.5 | 5.5 | 9.1 | 4.3 |
RSM-100 | 36.6 | 7.1 | 10.7 | 7.9 |
RSM-200 | 49.3 | 10.0 | 15.1 | 9.9 |
RSM-300 | 52.3 | 10.0 | 15.9 | 11.2 |
RSM-500 | 66.5 | 11.0 | 19.0 | 12.7 |
RSM-750 | 76.2 | 13.5 | 20.6 | 14.2 |
RSM-1000 | 76.2 | 13.5 | 20.6 | 14.2 |
RSM-1500 | 117.3 | 13.5 | 20.6 | 14.2 |
Cyl. Capa- city ton (kN) | Stroke (mm) | Model Number | Cyl. Effect. Area (cm²) | Oil Cap. (cm³) |
5(45) | 6 | RSM-50” | 6.5 | 4 |
10(101) | 12 | RSM-100 | 14.5 | 18 |
20 (201) | 11 | RSM-200 | 28.7 | 32 |
30(295) | 13 | RSM-300 | 42.1 | 55 |
45(435) | 16 | RSM-500 | 62.1 | 99 |
75(718) | 16 | RSM-750 | 102.6 | 164 |
90(887) | 16 | RSM-1000 | 126.7 | 203 |
150(1386) | 16 | RSM-1500 | 198.1 | 317 |
Collapsed Height A (mm) | Extended Height B (mm) | Outside Diameter D (mm) | Cylinder Bore Dia. E (mm) | Plunger Dia. F (mm) | Base to Advance Port H (mm) | Plunger Protrusion from Base K (mm) | Plunger to Base L (mm) | Plunger to Mtg. Hole M (mm) | Thread O (mm) | Thread Depth P (mm) | Bolt Circle U (mm) | Weight (kg) | Model Number |
32 | 38 | 58×41 | 28.7 | 25.4 | 16 | 1 | 20 | 22 | - | - | - | 1.0 | RSM-50 |
42 | 54 | 82×55 | 42.9 | 38.1 | 19 | 1 | 27 | 34 | - | - | - | 1.4 | RSM-100 |
51 | 62 | 101×76 | 60.5 | 50.8 | 19 | 1 | 39 | 39 | - | - | - | 3.1 | RSM-200 |
58 | 71 | 117×95 | 73.2 | 63.4 | 19 | 2 | 47 | 44 | - | - | - | 4.5 | RSM-300 |
66 | 82 | 140×114 | 88.9 | 69.8 | 19 | 2 | 57 | 53 | - | - | - | 6.8 | RSM-500 |
79 | 95 | 165×139 | 114.3 | 82.6 | 19 | 2 | 69 | 66 | - | - | - | 11.3 | RSM-750 |
85 | 101 | 178×153 | 127.0 | 92.2 | 19 | 2 | 76 | 74 | - | - | - | 14.5 | RSM-1000 |
100 | 116 | 215×190 | 158.8 | 114.3 | 23 | 2 | 95 | 82 | - | - | - | 26.3 | RSM-1500 |
