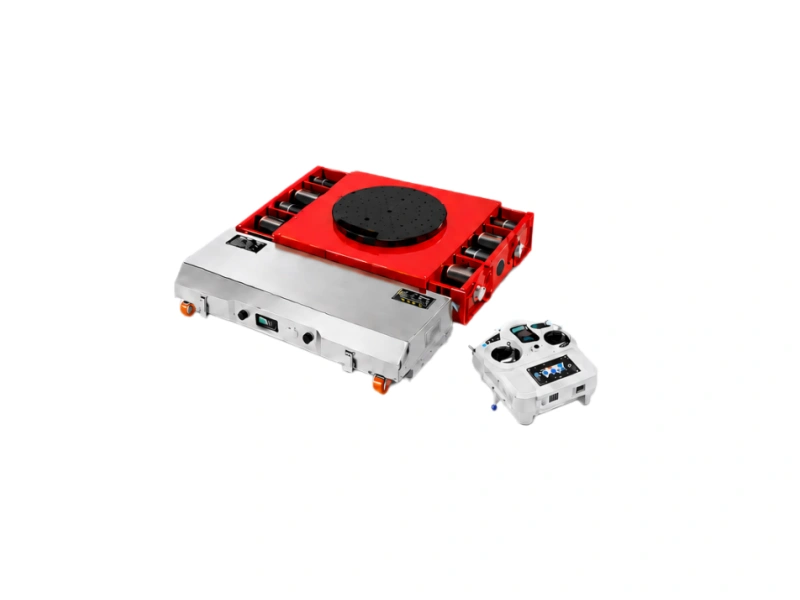

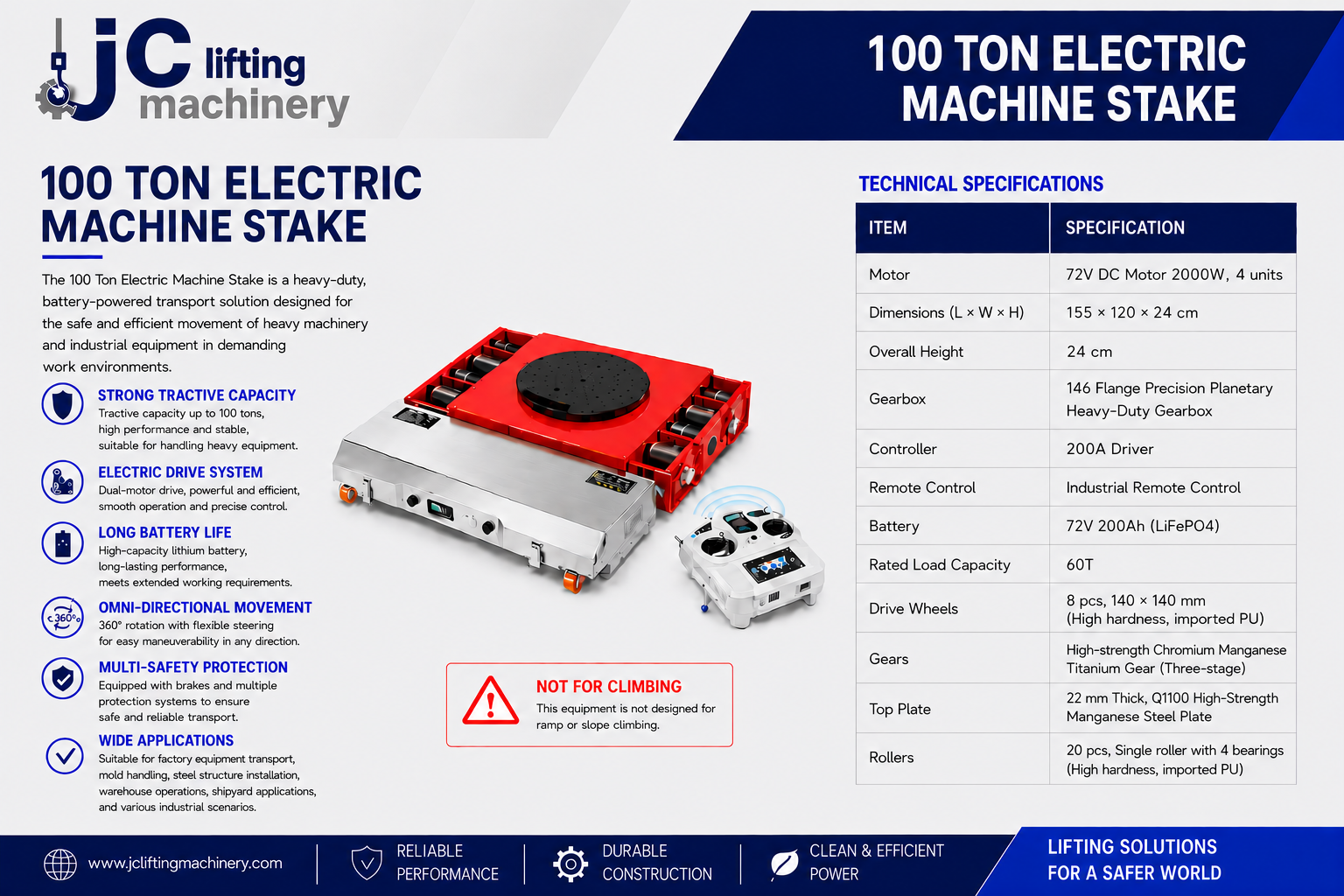

The 100 Ton Electric Machine Stake is a heavy-duty,oattery-powered transport solution designed forthe safe and efficient movement of heavy machineryand industrial equipment in demandingwork environments.
| ITEM | SPECIFICATION |
| Motor | 72V DC Motor 2000W, 4 units |
| Dimensions (L × W × H) | 155 × 120 × 24 cm |
| Overall Height | 24 cm |
| Gearbox | 146 Flange Precision Planetary Heavy-Duty Gearbox |
| Controller | 200A Driver |
| Remote Control | Industrial Remote Control |
| Battery | 72V 200Ah (LiFePO4) |
| Rated Load Capacity | 60T |
| Drive Wheels | 8 pcs, 140 × 140 mm (High hardness, imported PU) |
| Gears | High-strength Chromium Manganese Titanium Gear (Three-stage) |
| Top Plate | 22 mm Thick, Q1100 High-Strength Manganese Steel Plate |
| Rollers | 20 pcs, Single roller with 4 bearings (High hardness, imported PU) |
