Air cushion module: 400x400x45mm
Working/limit stroke: 5-30/35mm
Maximum load per unit: 3T

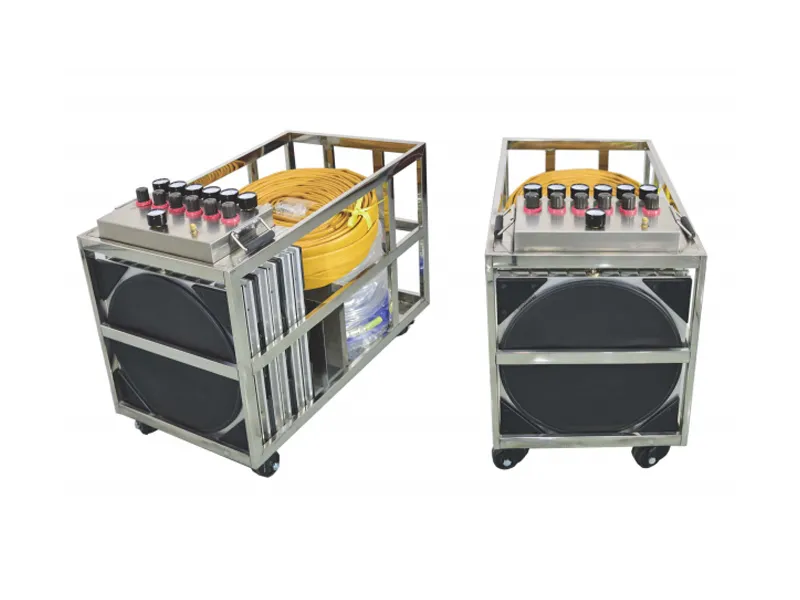

Cart dimensions: 740x440x550mm (height)
*Airbag pressure resistance at maximum load ≤ 0.45MPa

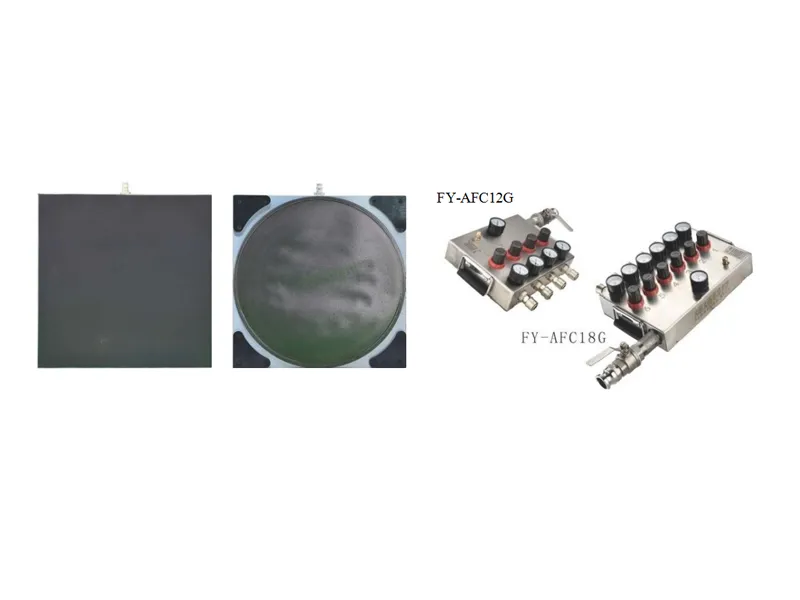

| Model | Air cushion quantity | Maximum load | Bronchi | Controller | Storage trolley | Air consumption | Unit response |
| FY-AFC12G | 4 pieces | 12 tons | Two each of 6 meters and 8 meters | 4 branches 1 | 1 unit | ≥1200L/min | 50kg |
| MY-AFC18G | 6 pieces | 10 tons | Two each of 6 meters; 8 meters; and 10 meters | 6 branches 1 | 1 unit | ≥1500L/min | 70kg |
