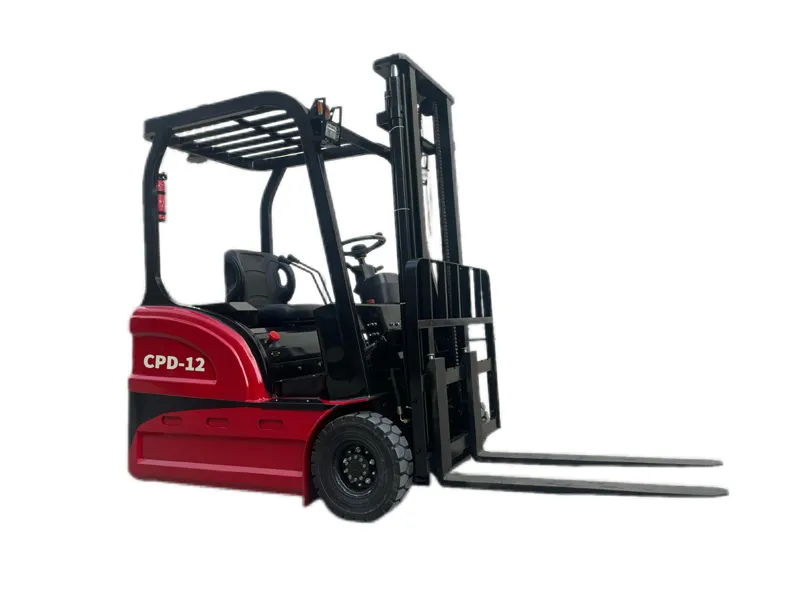

| Item | Unit | Design Value | |
| Rated Lifting Capacity | kg | 1200 | |
| Overall Length | No forks | mm | 1850 |
| With forks | mm | 2930 | |
| Overall Width | Frame width | mm | 1120 |
| Overall Height | Non-lifting mast height | mm | 2180 |
| Overhead guard height | mm | 2100 | |
| Maximum working height | mm | 3880 | |
| Wheelbase | mm | 1400 | |
| Front overhang | mm | 360 | |
| Front track width | mm | 900 | |
| Rear track width | mm | 70 | |
| Minimum ground clearance | Lower end of gantry (empty/full) | mm | 80 |
| Mid-section of chassis (empty/full) | mm | 80 | |
| Maximum Lifting Height (Unloaded) | mm | 3000 | |
| Free Lifting Height | mm | 3000 | |
| Mast Tilt Angle | (°) | 15 | |
| Overall Machine Weight (Standard Unloaded) | kg | 2000 | |
| Maximum Lifting Speed (Unloaded) | mm/s | 100 | |
| Maximum Lifting Speed (Fully Loaded) | mm/s | 90 | |
| Minimum Turning Radius | mm | 1700 | |
| Maximum Travel Speed (Unloaded) | km/h | 11 | |
| Maximum Travel Speed (Fully Loaded) | km/h | 8 | |
| Maximum Gradeability (Fully Loaded) | % | 15 | |
| Load Center Distance | mm | 500 | |
| Front Wheel Specifications | / | 500-8 | |
| Rear Wheel Specifications | / | 350-100 | |
| Lifting Motor Power | KW | 3 | |
| Drive Motor Power | KW | 3 | |
| Steering Mode | / | Hydraulic Power Steering | |
| Charger Input Voltage | V | 220 | |
| Charging Time | h | 8 | |
| Battery Capacity | ah | 70 | |
| Rated Voltage | V | 60 | |
