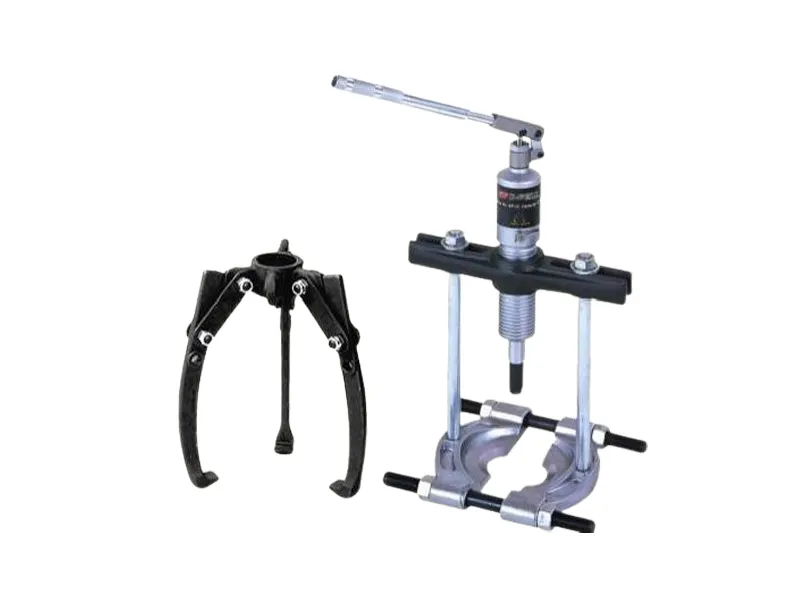

The four-segment adjustable joystick design allows users to adjust the force and torque according to their needs, thus achieving the goal of saving effort.
The 360° rotatable rocking seat design allows users to operate the puller in any direction.
The elastic ejector pin design ensures accurate center positioning(detachable). The operating force ranges from 4 tons to 12 tons, with options available.
The hydraulic system of the puller is equipped with a built-in safety valve to prevent damage to the puller.
The claw hook and claw base are forged from chrome-manganese alloy steel, providing users with the most reliable and durable choice.
The pressure plate type set is more suitable for dismantling bearings, providing greater convenience and safety benefits.
The hot-forged claw hook screws, coupled with a manganese phosphate electroplating surface treatment, ensure both protection and durability for long-term use.
Model | Capacity ton(kN) | Reach (Max.mm) | Spread (Max.mm) | Stroke (mm) | Pump Tip (mm) | Jaw Tip (mm) | Weight (kg) | |||||
C | D | H | E | F | G | A | B | C | ||||
UKM-4 | 4 Ton | 185/250 | 55 | 255/110 | 60 | 42 | 22 | 84 | 13 | 6 | 22 | 4.5/8.5 |
UKM-6 | 6 Ton | 220/270 | 95 | 330/180 | 70 | 45 | 23 | 94 | 13 | 10 | 22 | 5.5/11.5 |
UKM-8 | 8 Ton | 230/270 | 95 | 350/220 | 85 | 50 | 25 | 122 | 11 | 10 | 25 | 6.5/12.6 |
UKM-12 | 12 Ton | 230/270 | 225 | 375/290 | 85 | 60 | 28 | 118 | 14 | 10 | 29 | 8.0/18.0 |
