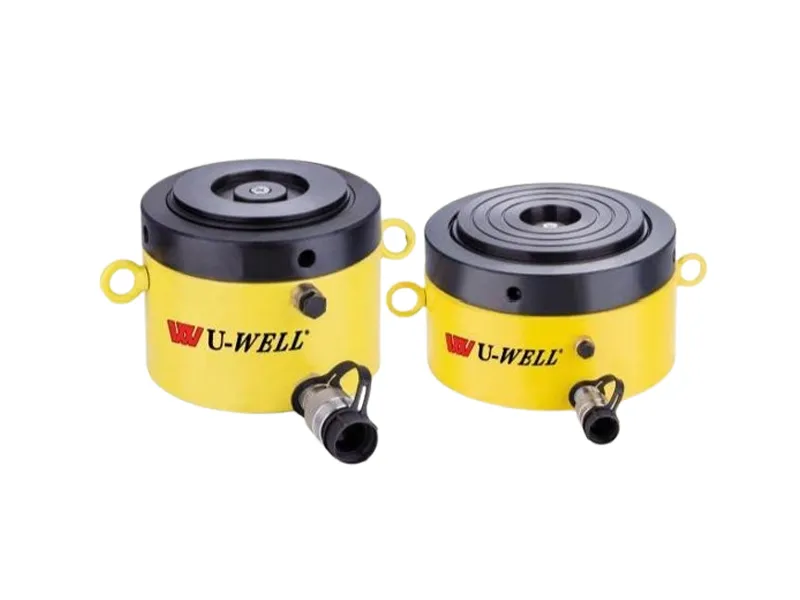

Extremely low height for use in confined areas.
Lock nut for positive and safe mechanical load holding over a long period of time.
Single-acting load return.
Optional special synthetic coating for improved corrosion resistance and lower friction for smoother operation.
Overflow port functions as a stroke limiter.
Cylinder Capacity | Stroke | Model Number | Cylinder Effective Area | Oil Capacity |
ton(KN) | (mm) | (cm²) | (cm³) | |
60(606) | 50 | CLP-602 | 86.6 | 432 |
100(1027) | 50 | CLP-1002 | 146.8 | 734 |
160(1619) | 45 | CLP-1602 | 231.3 | 1040 |
200(1999) | 45 | CLP-2002 | 285.6 | 1285 |
260(2567) | 45 | CLP-2502 | 366.8 | 1650 |
400(3916) | 45 | CLP-4002 | 559.5 | 2517 |
520(5114) | 45 | CLP-5002 | 730.6 | 3287 |
Collapsed Height A (mm) | Extended Height B (mm) | Outside Diameter D (mm) | Cylinder Bore Diameter E (mm) | Plunger Diameter F (mm) | Base to Advance Port H (mm) | Saddle Diameter J (mm) | Saddle Protrusion from Plgr. K (mm) | Saddle Max.Tilt Angle R | Lock Nut Height S (mm) | Weight (kg) | Model Number |
125 | 175 | 140 | 105.0 | Tr 104×4 | 19 | 96 | 6 | 5° | 28 | 15 | CLP-602 |
137 | 187 | 175 | 136.7 | Tr 136×6 | 21 | 126 | 8 | 5° | 31 | 26 | CLP-1002 |
148 | 193 | 220 | 171.6 | Tr 171×6 | 27 | 160 | 9 | 5° | 40 | 44 | CLP-1602 |
155 | 200 | 245 | 190.7 | Tr 190×6 | 30 | 180 | 10 | 5° | 43 | 57 | CLP-2002 |
159 | 204 | 275 | 216.1 | Tr 216×6 | 32 | 200 | 11 | 5° | 44 | 74 | CLP-2502 |
178 | 223 | 350 | 266.9 | Tr 266×6 | 39 | 250 | 11 | 4° | 55 | 134 | CLP-4002 |
192 | 237 | 400 | 305.0 | Tr 305×6 | 48 | 290 | 10 | 3° | 62 | 189 | CLP-5002 |
