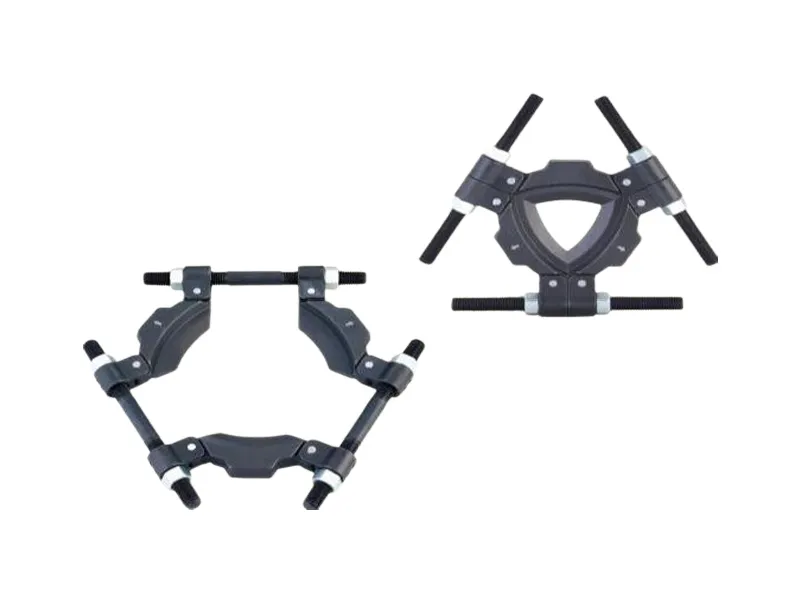

Simple, convenient, and safe disassembly tool accessories
In the current market, this patent's unique movable screw rod, specifically designed as an accessory for the three-claw puller, provides a balanced tripartite distribution and is fully contacted by the pressure plate and the inner ring of the bearing, minimizing damage to other components during the disassembly process. The three intelligent triangular pressure plates of different sizes can be applied to the largest spindle diameters, ranging from 50 to 495mm(2 to 19.5)
User-friendly design:
The uniquely patented design of the movable screw rod can provide the maximum absolute value of the applicable opening range.
The three-piece design ensures the most balanced distribution of force, preventing the bearing from tilting or getting stuck on the spindle during disassembly.
Three-piece design, suitable for any form of three-jaw puller.
Its opening range can cover the vast majority of spindle specifications in various sizes.
Safety:
This unique design evenly distributes the contact surface with the workpiece across the inner ring of the bearing,
Therefore, it intersects with the traditional two-piece pressure plate.
It can reduce the demand for effort, thereby achieving higher safety standards.
Due to the even distribution of force within the inner ring of the bearing, damage to other components can be minimized during disassembly. The main components are forged from chromium-manganese alloy steel, providing users with the most reliable and durable option.
Save costs:
The intelligent active screw design allows for a pressure plate of the same size, To meet the demand for wider opening, significant labor savings can be achieved. Reset the time of the tool and operation.
The world's first intelligent triangular pressure plate is the most efficient and cost-effective accessory for disassembly tools.
Model | Capacity (mm) | Maximum opening width (mm) | Available Shaft Dia (mm) | Spread Max(mm) | C | D | E | F | Weight (mm) | |
A1 | A2 | B | ||||||||
ET3-210 | 50-210 | 280 | 50 | 210 | 280 | 115 | 285 | Ø3/1"-16UNF | 31 | 5.5 |
ET3-340 | 90-340 | 460 | 90 | 340 | 460 | 170 | 430 | Ø1"14UN | 45 | 16.5 |
ET3-495 | 140-495 | 660 | 140 | 195 | 660 | 240 | 600 | / | 61 | 41.0 |
