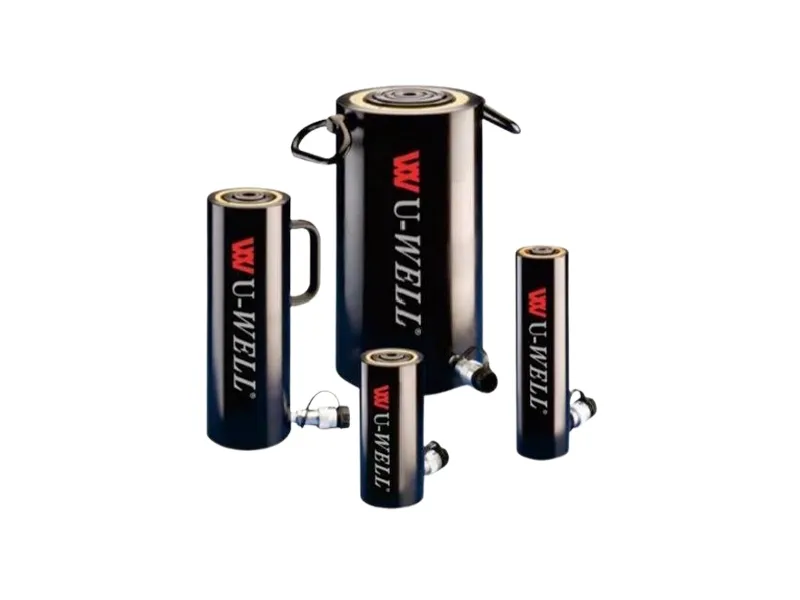

Composite bearings prevent metal-to-metal contact, increasing cylinder life and resistance to side-loads of up to 10%.
Hard-Coat finish on all surfaces resists damage and extends cylinder life.
Handles included on all models.
Steel base plate and saddle for protection against load-induced damage.
Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity.
High-strength return spring for rapid cylinder retraction.
CR-400 coupler and dustcap included on all models.
All cylinders meet ASME B-30.1 and ISO 10100 standards.
@700 bar Cylinder Capacity ton (kN) | Stroke (mm) | Model Number | Cylinder Effective Area (cm) |
20(218) | 50 | RAC-202 | 31.2 |
100 | RAC-204 | 31.2 | |
150 | RAC-206 | 31.2 | |
200 | RAC-208 | 31.2 | |
250 | RAC-2010 | 31.2 | |
30(309) | 50 | RAC-302 | 44.2 |
100 | RAC-304 | 44.2 | |
150 | RAC-306 | 44.2 | |
200 | RAC-308 | 44.2 | |
250 | RAC-3010 | 44.2 | |
50(496) | 50 | RAC-502 | 70.9 |
100 | RAC-504 | 70.9 | |
150 | RAC-506 | 70.9 | |
200 | RAC-508 | 70.9 | |
250 | RAC-5010 | 70.9 | |
100(1002) | 50 | RAC-1002 | 143.1 |
100 | RAC-1004 | 143.1 | |
150 | RAC-1006 | 143.1 | |
200 | RAC-1008 | 143.1 | |
250 | RAC-10010 | 143.1 | |
150(1589) | 50 | RAC-1502 | 227.0 |
100 | RAC-1504 | 227.0 | |
150 | RAC-1506 | 227.0 | |
200 | RAC-1508 | 227.0 | |
250 | RAC-15010 | 227.0 |
| Steel Base Plate Mounting Holes | |||
| Cylinder Model/Capacity ton | Bolt Circle U (mm) | Thread V | Thread Depth” Z (mm) |
| RAC-20 | 70 | M6 | 12 |
| RAC-30 | 80 | M6 | 12 |
| RAC-50 | 110 | M6 | 12 |
| RAC-100 | 150 | M10 | 12 |
| RAC-150 | 200 | M10 | 12 |
Optional Bolt-on Tit Saddle Dimensions(mm) | ||||
For Cylinder Model/Capacity ton | Tilt Saddle Model Number | Tit Saddle Diameter J1 | Saddle Protrusion from Plunger K1 |
|
RAC-50 | CATG-50 | 50 | 24 | |
RAC-100 | CATG-150 | 91 | 31 | |
RAC-150 | CATG-200 | 118 | 35 | |
Oil Capacity (cm) | Height A (mm) | Extended Height B (mm) | Outside Diameter D (mm) | Cylinder Bore Diameter E (mm) | Plunger Diameter F (mm) | Bottom to Advance Port H (mm) | Saddle Diameter J (mm) | Saddle Protrusion from Plunger K (mm) | Weight (kg) | Model Number* |
156 | 174 | 224 | 85 | 63 | 50 | 27 | 40 | 3 | 3.6 | RAC-202 |
312 | 224 | 324 | 85 | 63 | 50 | 27 | 40 | 3 | 4.1 | RAC-204 |
468 | 274 | 424 | 85 | 63 | 50 | 27 | 40 | 3 | 4.6 | RAC-206 |
624 | 324 | 524 | 85 | 63 | 50 | 27 | 40 | 3 | 5.1 | RAC-208 |
780 | 374 | 624 | 85 | 63 | 50 | 27 | 40 | 3 | 5.6 | RAC-2010 |
221 | 181 | 231 | 100 | 75 | 60 | 32 | 40 | 3 | 4.5 | RAC-302 |
442 | 231 | 331 | 100 | 75 | 60 | 32 | 40 | 3 | 5.2 | RAC-304 |
663 | 281 | 431 | 100 | 75 | 60 | 32 | 40 | 3 | 5.9 | RAC-306 |
884 | 331 | 531 | 100 | 75 | 60 | 32 | 40 | 3 | 6.6 | RAC-308 |
1105 | 381 | 631 | 100 | 75 | 60 | 32 | 40 | 3 | 7.3 | RAC-3010 |
354 | 186 | 236 | 130 | 95 | 80 | 30 | 50 | 3 | 8.5 | RAC-502 |
709 | 236 | 336 | 130 | 95 | 80 | 30 | 50 | 3 | 9.8 | RAC-504 |
1063 | 286 | 436 | 130 | 95 | 80 | 30 | 50 | 3 | 11.1 | RAC-506 |
1417 | 336 | 536 | 130 | 95 | 80 | 30 | 50 | 3 | 12.4 | RAC-508 |
1771 | 386 | 636 | 130 | 95 | 80 | 30 | 50 | 3 | 13.7 | RAC-5010 |
715 | 221 | 271 | 180 | 135 | 110 | 46 | 94 | 3 | 17.3 | RAC-1002 |
1431 | 271 | 371 | 180 | 135 | 110 | 46 | 94 | 3 | 19.6 | RAC-1004 |
2147 | 321 | 471 | 180 | 135 | 110 | 46 | 94 | 3 | 21.9 | RAC-1006 |
2863 | 371 | 571 | 180 | 135 | 110 | 46 | 94 | 3 | 24.2 | RAC-1008 |
3578 | 421 | 671 | 180 | 135 | 110 | 46 | 94 | 3 | 26.5 | RAC-10010 |
1135 | 243 | 293 | 230 | 170 | 140 | 51 | 113 | 3 | 25.3 | RAC-1502 |
2270 | 293 | 393 | 230 | 170 | 140 | 51 | 113 | 3 | 29.3 | RAC-1504 |
3405 | 343 | 493 | 230 | 170 | 140 | 51 | 113 | 3 | 33.3 | RAC-1506 |
4540 | 393 | 593 | 230 | 170 | 140 | 51 | 113 | 3 | 37.3 | RAC-1508 |
5675 | 443 | 693 | 230 | 170 | 140 | 51 | 113 | 3 | 41.3 | RAC-15010 |
