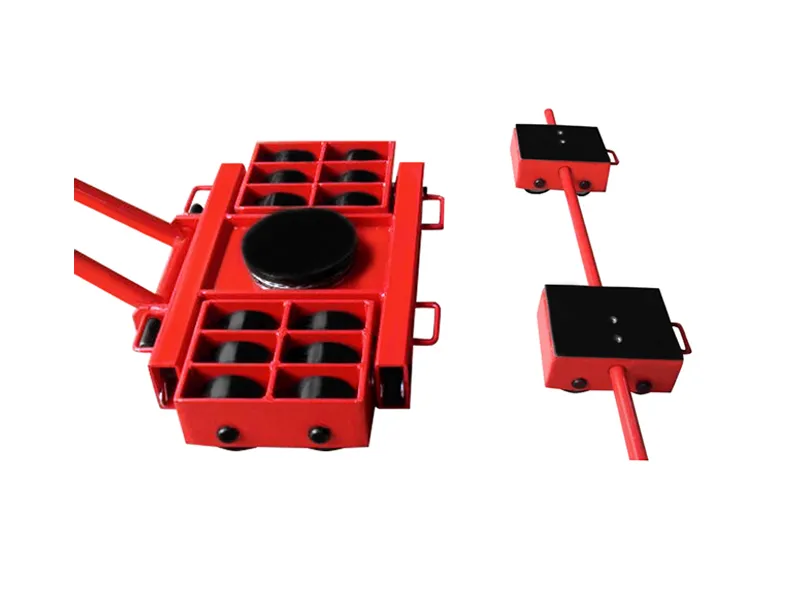

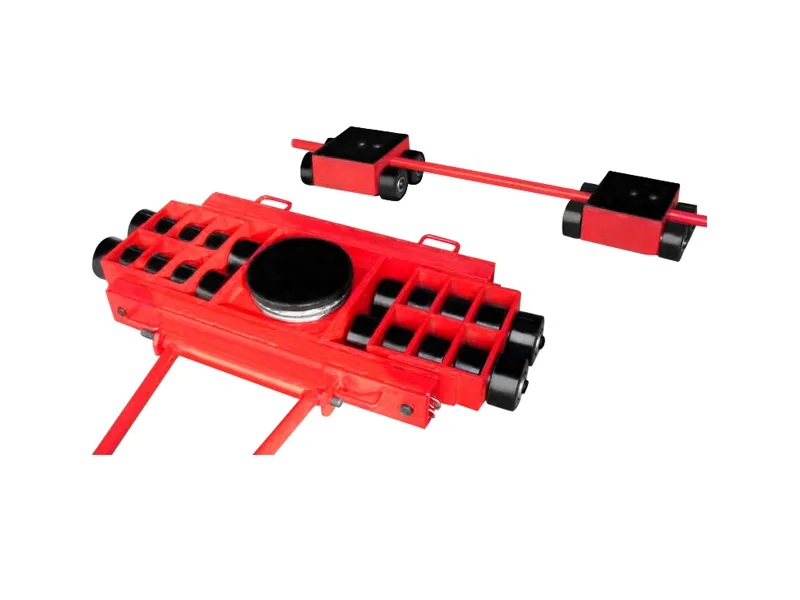

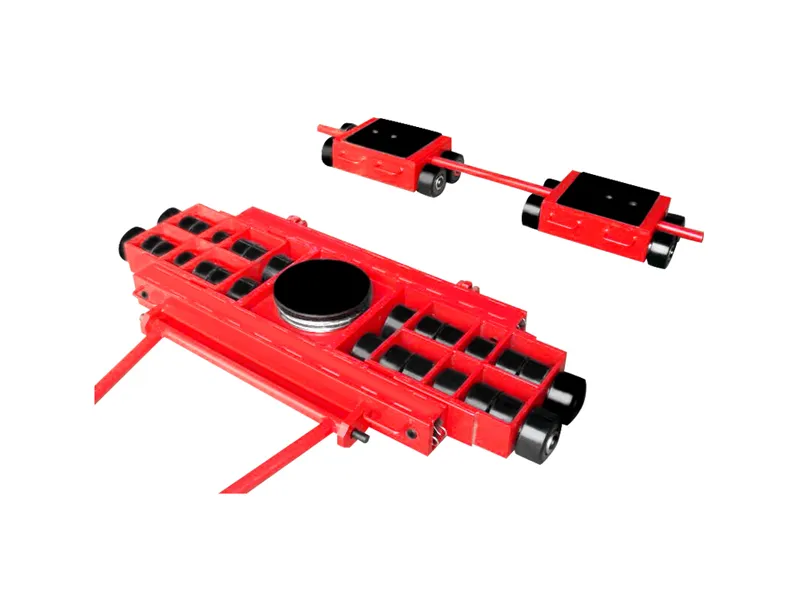

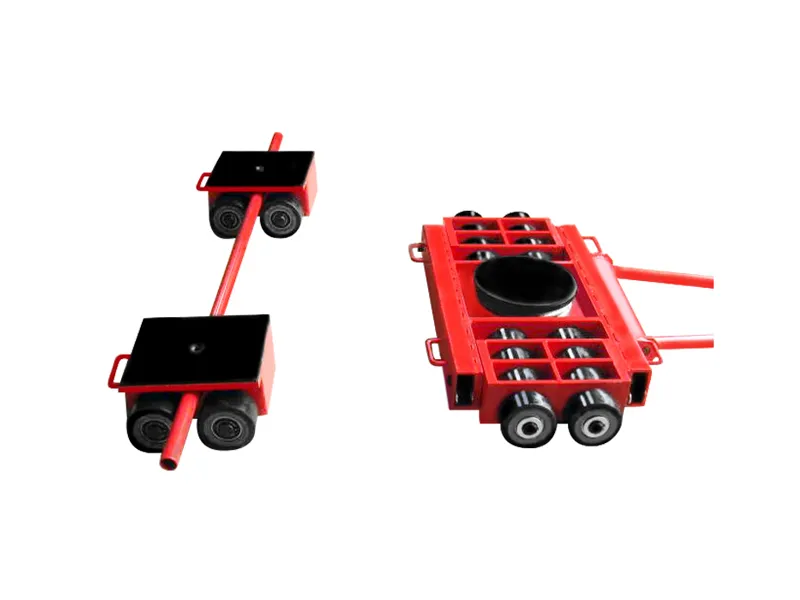

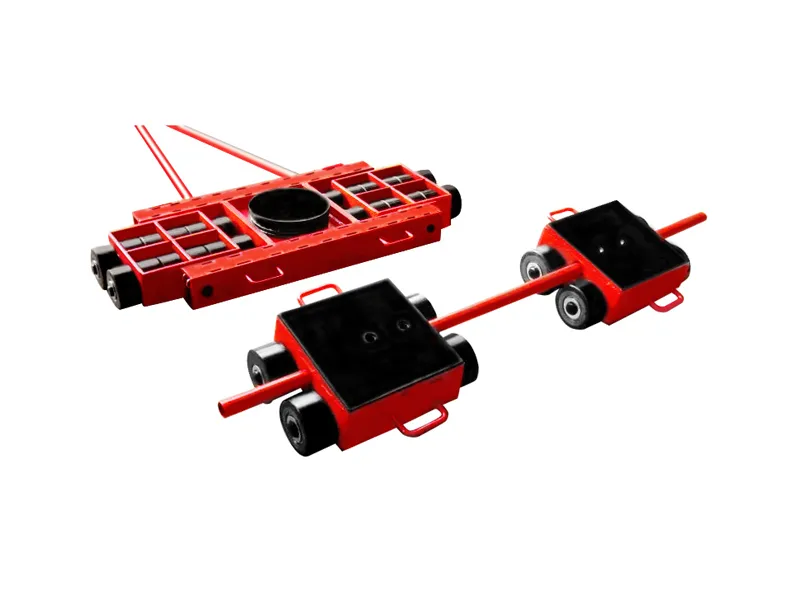

AKBK Series Modular Transport Trolleys feature a three-unit modular design with uniform height for enhanced load capacity.
The AKBK model incorporates a vertical control handle for steering, while the BK model employs a balanced design with sideways adjustment capability.
AKBK Series Modular Transport Trolleys automatically adjust balance, ensuring stable operation even on uneven surfaces.
Constructed with a steel frame and reinforced load-bearing plate, AKBK Series Modular Transport Trolleys deliver exceptional durability.
Standard configuration includes rubber wheels; nylon wheels or alloy steel wheels available as optional accessories.

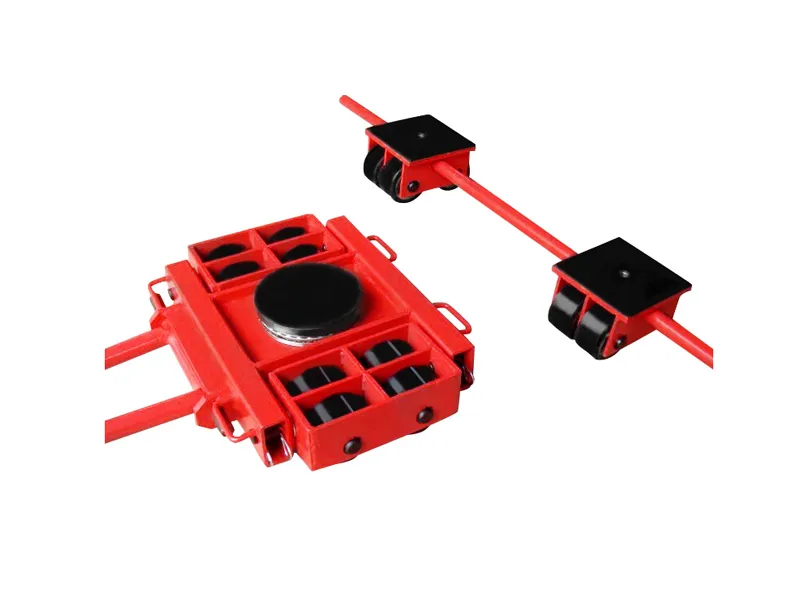

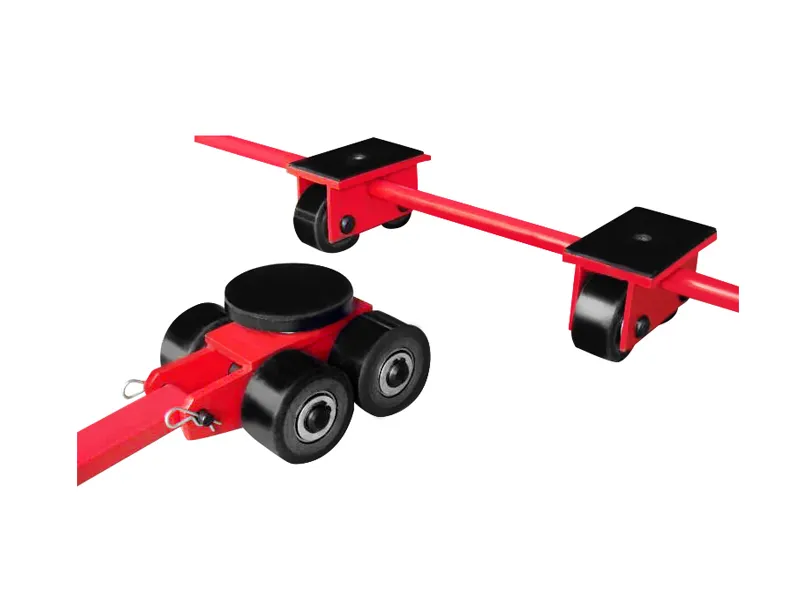

Combination examples: AKBK12=AK6+BK3+BK3; AKBK24=AK12+BK6+BK6.
| Technical data | BK3 | AK6 | BK6 | AK12 |
| height/no. of wheels (115 x 60 mm) | 110 mm/ 2 | 110 mm/4 | 110 mm/4 | 110 mm/8 |
| Contact surface per cassette | 240x 80 mm | ø150 | 200x 220 mm | ø200 |
| Connecting rod, adjustable | 300 - 1000mm | - | 640 - 1030 mm | - |
| Swivel plate Ø170 mm, steering angle | - | ±90° | - | ±90° |
| Steeringrod | - | 1000 mm | - | 1000 mm |
| Overall dimensions | 290x95x 145 mm | 330x 300x 145 mm | 290x 160x 145 mm | 530x 540x 145 mm |
| Tare weight in kg | 14 kg | 24 kg | 21 kg | 70 kg |
| Load capacity | 30kN (3t) | 60kN(6t) | 60kN(6t) | 120 kN (12t) |
