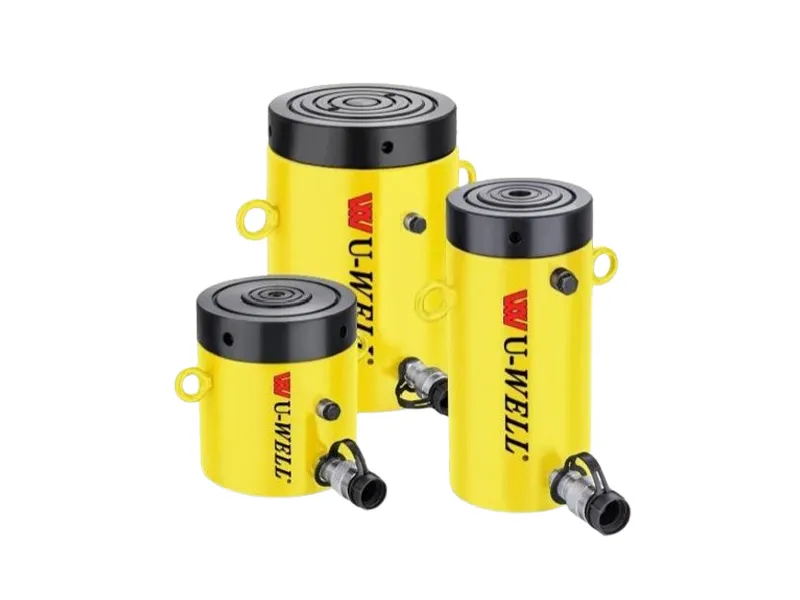

Single-acting, load return.
Safety Lock Nut for mechanical load holding.
Special synthetic coating for improved corrosion resistance and lower friction for smoother operation.
Overflow port functions as a stroke limiter.
Interchangeable, hardened grooved saddles are standard.
Cylinder Capacity ton (kN) | Stroke (mm) | Model Number | Cylinder Effective Area (cm²) | Oil Capacity (cm³) | Collapsed Height (mm) | Weight (kg) |
50 (496) | 50 | CLL-502 | 70.9 | 355 | 164 | 15 |
100 | CLL-504 | 70.9 | 709 | 214 | 20 | |
150 | CLL-506 | 70.9 | 1064 | 264 | 25 | |
200 | CLL-508 | 70.9 | 1418 | 314 | 30 | |
250 | CLL-5010 | 70.9 | 1773 | 364 | 35 | |
300 | CLL-5012 | 70.9 | 2127 | 414 | 40 | |
100 (929) | 50 | CLL-1002 | 132.7 | 664 | 187 | 30 |
100 | CLL-1004 | 132.7 | 1327 | 237 | 39 | |
150 | CLL-1006 | 132.7 | 1991 | 287 | 48 | |
200 | CLL-1008 | 132.7 | 2654 | 337 | 56 | |
250 | CLL-10010 | 132.7 | 3318 | 387 | 64 | |
300 | CLL-10012 | 132.7 | 3981 | 437 | 73 | |
150 (1390) | 50 | CLL-1502 | 198.6 | 993 | 209 | 53 |
100 | CLL-1504 | 198.6 | 1986 | 259 | 66 | |
150 | CLL-1506 | 198.6 | 2979 | 309 | 78 | |
200 | CLL-1508 | 198.6 | 3972 | 359 | 92 | |
250 | CLL-15010 | 198.6 | 4965 | 409 | 104 | |
300 | CLL-15012 | 198.6 | 5958 | 459 | 117 | |
200 (1859) | 50 | CLL-2002 | 265.6 | 1330 | 243 | 83 |
150 | CLL-2006 | 265.6 | 3989 | 343 | 117 | |
300 | CLL-20012 | 265.6 | 7995 | 493 | 170 | |
250 (2562) | 50 | CLL-2502 | 366.1 | 1832 | 249 | 116 |
150 | CLL-2506 | 366.1 | 5496 | 349 | 162 | |
300 | CLL-25012 | 366.1 | 10995 | 499 | 234 | |
300 (3193) | 50 | CLL-3002 | 456.2 | 2281 | 295 | 173 |
150 | CLL-3006 | 456.2 | 6843 | 395 | 233 | |
300 | CLL-30012 | 456.2 | 13740 | 545 | 323 | |
400 (3919) | 50 | CLL-4002 | 559.9 | 2800 | 335 | 250 |
150 | CLL-4006 | 559.9 | 8399 | 435 | 327 | |
300 | CLL-40012 | 559.9 | 16800 | 585 | 441 | |
500 (5118) | 50 | CLL-5002 | 731.1 | 3653 | 375 | 367 |
150 | CLL-5006 | 731.1 | 10959 | 475 | 466 | |
300 | CLL-50012 | 731.1 | 21930 | 625 | 617 | |
600 (5983) | 50 | CLL-6002 | 854.8 | 4277 | 395 | 446 |
150 | CLL-6006 | 854.8 | 12830 | 495 | 562 | |
300 | CLL-60012 | 854.8 | 25650 | 645 | 737 | |
800 (8238) | 50 | CLL-8002 | 1176.9 | 5882 | 455 | 709 |
150 | CLL-8006 | 1176.9 | 17645 | 555 | 870 | |
300 | CLL-80012 | 1176.9 | 35370 | 705 | 1110 | |
1000 (10260) | 50 | CLL-10002 | 1466.4 | 7329 | 495 | 949 |
150 | CLL-10006 | 1466.4 | 21986 | 595 | 1141 | |
300 | CLL-100012 | 1466,4 | 43980 | 745 | 1430 |
Cylinder Capacity ton (KN) | Stroke (mm) | Model Number | Cylinder Effective Area (cm²) | Oil Capacity (cm³) |
50 (496) | 50 | CLL-502 | 70.9 | 355 |
100 | CLL-504 | 70.9 | 709 | |
150 | CLL-506 | 70.9 | 1064 | |
200 | CLL-508 | 70.9 | 1418 | |
250 | CLL-5010 | 70.9 | 1773 | |
300 | CLL-5012 | 70.9 | 2127 | |
100 (929) | 50 | CLL-1002 | 132.7 | 664 |
100 | CLL-1004 | 132.7 | 1327 | |
150 | CLL-1006 | 132.7 | 1991 | |
200 | CLL-1008 | 132.7 | 2654 | |
250 | CLL-10010 | 132.7 | 3318 | |
300 | CLL-10012 | 132.7 | 3981 | |
150 (1390) | 50 | CLL-1502 | 198.6 | 993 |
100 | CLL-1504 | 198.6 | 1986 | |
150 | CLL-1506 | 198.6 | 2979 | |
200 | CLL-1508 | 198.6 | 3972 | |
250 | CLL-15010 | 198.6 | 4965 | |
300 | CLL-15012 | 198.6 | 5958 | |
200 (1859) | 50 | CLL-2002 | 265.6 | 1330 |
150 | CLL-2006 | 265.6 | 3989 | |
300 | CLL-20012 | 265.6 | 7995 | |
250 (2562) | 50 | CLL-2502 | 366.1 | 1832 |
150 | CLL-2506 | 366.1 | 5496 | |
300 | CLL-25012 | 366.1 | 10995 | |
300 (3193) | 50 | CLL-3002 | 456.2 | 2281 |
150 | CLL-3006 | 456.2 | 6843 | |
300 | CLL-30012 | 456.2 | 13740 | |
400 (3919) | 50 | CLL-4002 | 559.9 | 2800 |
150 | CLL-4006 | 559.9 | 8399 | |
300 | CLL-40012 | 559.9 | 16800 | |
500 (5118) | 50 | CLL-5002 | 731.1 | 3653 |
150 | CLL-5006 | 731.1 | 10959 | |
300 | CLL-50012 | 731.1 | 21930 | |
600 (5983) | 50 | CLL-6002 | 854.8 | 4277 |
150 | CLL-6006 | 854.8 | 12830 | |
300 | CLL-60012 | 854.8 | 25650 | |
800 (8238) | 50 | CLL-8002 | 1176.9 | 5882 |
150 | CLL-8006 | 1176.9 | 17645 | |
300 | CLL-80012 | 1176.9 | 35370 | |
1000 (10260) | 50 | CLL-10002 | 1466.4 | 7329 |
150 | CLL-10006 | 1466.4 | 21986 | |
300 | CLL-100012 | 1466.4 | 43980 |
Coll. Height A (mm) | Ext. Height B (mm) | Outs Dia D (mm) | Cyl. Bore Dia. E (mm) | Plunger Dia. (threaded) F (mm) | Base to Adv. Port H (mm) | Standard Saddle Dia. J (mm) | Saddle Protr. from Plgr K (mm) | Depth of Plunger Hole L (mm) | Lock- nut Height SS (mm) | Weight (kg) | Model Number | *Optional Tilt Saddle | ||
Saddle Dia. J1 (mm) | Saddle Height K1 (mm) | Saddle Model Number | ||||||||||||
164 | 214 | 125 | 95.0 | Tr 95×4 | 30 | 71 | 2 | 13 | 36 | 15 | CLL-502 | 71 | 24 | CAT-100 |
214 | 314 | 125 | 95.0 | Tr 95×4 | 30 | 71 | 2 | 13 | 36 | 20 | CLL-504 | 71 | 24 | CAT-100 |
264 | 414 | 125 | 95.0 | Tr 95×4 | 30 | 71 | 2 | 13 | 36 | 25 | CLL-506 | 71 | 24 | CAT-100 |
314 | 514 | 125 | 95.0 | Tr 95×4 | 30 | 71 | 2 | 13 | 36 | 30 | CLL-508 | 71 | 24 | CAT-100 |
364 | 614 | 125 | 95.0 | Tr 95×4 | 30 | 71 | 2 | 13 | 36 | 35 | CLL-5010 | 71 | 24 | CAT-100 |
414 | 714 | 125 | 95.0 | Tr 95×4 | 30 | 71 | 2 | 13 | 36 | 40 | CLL-5012 | 71 | 24 | CAT-100 |
187 | 237 | 165 | 130.0 | Tr 130×6 | 30 | 71 | 2 | 13 | 44 | 30 | CLL-1002 | 71 | 24 | CAT-100 |
237 | 337 | 165 | 130.0 | Tr 130×6 | 30 | 71 | 2 | 13 | 44 | 39 | CLL-1004 | 71 | 24 | CAT-100 |
287 | 437 | 165 | 130.0 | Tr 130×6 | 30 | 71 | 2 | 13 | 44 | 48 | CLL-1006 | 71 | 24 | CAT-100 |
337 | 537 | 165 | 130.0 | Tr 130×6 | 30 | 71 | 2 | 13 | 44 | 56 | CLL-1008 | 71 | 24 | CAT-100 |
387 | 637 | 165 | 130.0 | Tr 130×6 | 30 | 71 | 2 | 13 | 44 | 64 | CLL-10010 | 71 | 24 | CAT-100 |
437 | 737 | 165 | 130.0 | Tr 130×6 | 30 | 71 | 2 | 13 | 44 | 73 | CLL-10012 | 71 | 24 | CAT-100 |
209 | 259 | 205 | 159.0 | Tr 159×6 | 39 | 130 | 2 | 25 | 44 | 53 | CLL-1502 | 130 | 20 | CAT-200 |
259 | 359 | 205 | 159.0 | Tr 159×6 | 39 | 130 | 2 | 25 | 44 | 66 | CLL-1504 | 130 | 20 | CAT-200 |
309 | 459 | 205 | 159.0 | Tr 159×6 | 39 | 130 | 2 | 25 | 44 | 78 | CLL-1506 | 130 | 20 | CAT-200 |
359 | 559 | 205 | 159.0 | Tr 159×6 | 39 | 130 | 2 | 25 | 44 | 92 | CLL-1508 | 130 | 20 | CAT-200 |
409 | 659 | 205 | 159.0 | Tr 159×6 | 39 | 130 | 2 | 25 | 44 | 104 | CLL-15010 | 130 | 20 | CAT-200 |
459 | 759 | 205 | 159.0 | Tr 159×6 | 39 | 130 | 2 | 25 | 44 | 117 | CLL-15012 | 130 | 20 | CAT-200 |
243 | 293 | 235 | 184.0 | Tr 184×6 | 50 | 130 | 2 | 25 | 50 | 83 | CLL-2002 | 130 | 20 | CAT-200 |
343 | 493 | 235 | 184.0 | Tr 184×6 | 50 | 130 | 2 | 25 | 50 | 117 | CLL-2006 | 130 | 20 | CAT-200 |
493 | 793 | 235 | 184.0 | Tr 184×6 | 50 | 130 | 2 | 25 | 50 | 170 | CLL-20012 | 130 | 20 | CAT-200 |
249 | 299 | 275 | 216.0 | Tr 216×6 | 50 | 150 | 2 | 25 | 56 | 116 | CLL-2502 | 150 | 21 | CAT-250 |
349 | 499 | 275 | 216.0 | Tr 216×6 | 50 | 150 | 2 | 25 | 56 | 162 | CLL-2506 | 150 | 21 | CAT-250 |
499 | 799 | 275 | 216.0 | Tr 216×6 | 50 | 150 | 2 | 25 | 56 | 234 | CLL-25012 | 150 | 21 | CAT-250 |
295 | 345 | 310 | 241.0 | Tr 241×6 | 59 | 139 | 5 | 25 | 60 | 173 | CLL-3002 | 195 | 75 | CAT-300 |
395 | 545 | 310 | 241.0 | Tr 241×6 | 59 | 139 | 5 | 25 | 60 | 233 | CLL-3006 | 195 | 75 | CAT-300 |
545 | 845 | 310 | 241.0 | Tr 241×6 | 59 | 139 | 5 | 25 | 60 | 323 | CLL-30012 | 195 | 75 | CAT-300 |
335 | 385 | 350 | 267.0 | Tr 266×6 | 70 | 159 | 5 | 25 | 70 | 250 | CLL-4002 | 225 | 85 | CAT-400 |
435 | 585 | 350 | 267.0 | Tr 266×6 | 70 | 159 | 5 | 25 | 70 | 327 | CLL-4006 | 225 | 85 | CAT-400 |
585 | 885 | 350 | 267.0 | Tr 266×6 | 70 | 159 | 5 | 25 | 70 | 441 | CLL-40012 | 225 | 85 | CAT-400 |
375 | 425 | 400 | 305.0 | Tr 305×6 | 80 | 179 | 5 | 25 | 80 | 367 | CLL-5002 | 250 | 91 | CAT-500 |
475 | 625 | 400 | 305.0 | Tr 305×6 | 80 | 179 | 5 | 25 | 80 | 466 | CLL-5006 | 250 | 91 | CAT-500 |
625 | 925 | 400 | 305.0 | Tr 305×6 | 80 | 179 | 5 | 25 | 80 | 617 | CLL-50012 | 250 | 91 | CAT-500 |
395 | 445 | 430 | 330.0 | Tr 330×6 | 85 | 194 | 5 | 25 | 85 | 446 | CLL-6002 | 275 | 96 | CAT-600 |
495 | 645 | 430 | 330.0 | Tr 330×6 | 85 | 194 | 5 | 25 | 85 | 562 | CLL-6006 | 275 | 96 | CAT-600 |
645 | 945 | 430 | 330.0 | Tr 330×6 | 85 | 194 | 5 | 25 | 85 | 737 | CLL-60012 | 275 | 96 | CAT-600 |
455 | 505 | 505 | 387.0 | Tr 387×6 | 100 | 224 | 5 | 25 | 100 | 709 | CLL-8002 | 320 | 123 | CAT-800 |
555 | 705 | 505 | 387.0 | Tr 387×6 | 100 | 224 | 5 | 25 | 100 | 870 | CLL-8006 | 320 | 123 | CAT-800 |
705 | 1005 | 505 | 387.0 | Tr387×6 | 100 | 224 | 5 | 25 | 100 | 1110 | CLL-80012 | 320 | 123 | CAT-800 |
495 | 545 | 560 | 432.0 | Tr 432×6 | 110 | 249 | 5 | 25 | 110 | 949 | CLL-10002 | 360 | 136 | CAT-1000 |
595 | 745 | 560 | 432.0 | Tr 432×6 | 110 | 249 | 5 | 25 | 110 | 1141 | CLL-10006 | 360 | 136 | CAT-1000 |
745 | 1045 | 560 | 432.0 | Tr 432×6 | 110 | 249 | 5 | 25 | 110 | 1430 | CLL-100012 | 360 | 136 | CAT-1000 |
