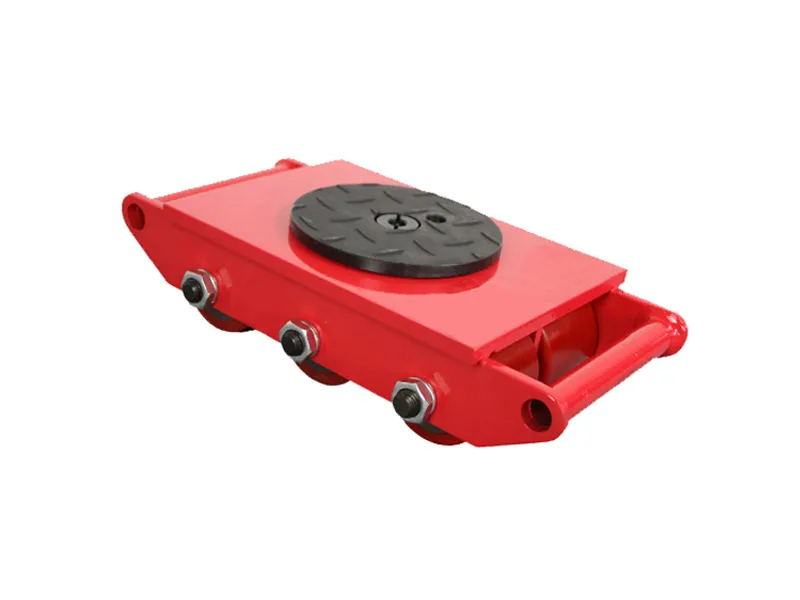

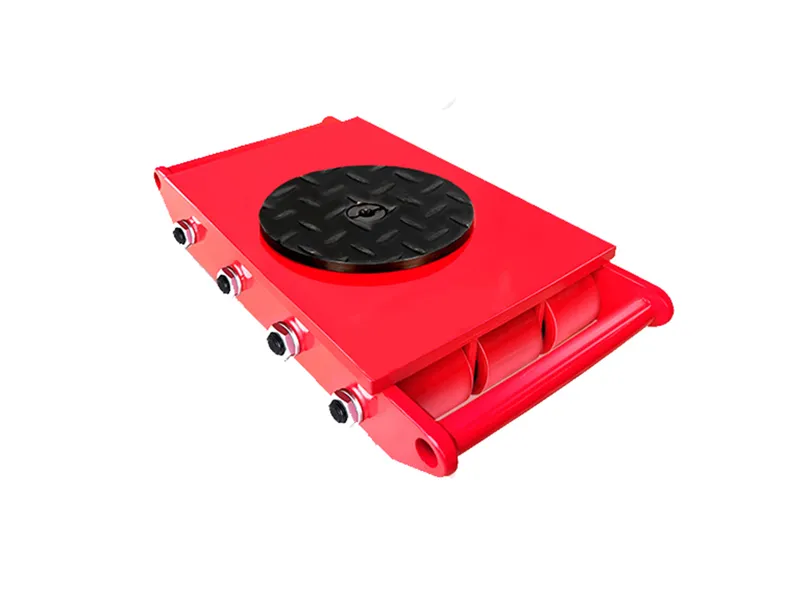

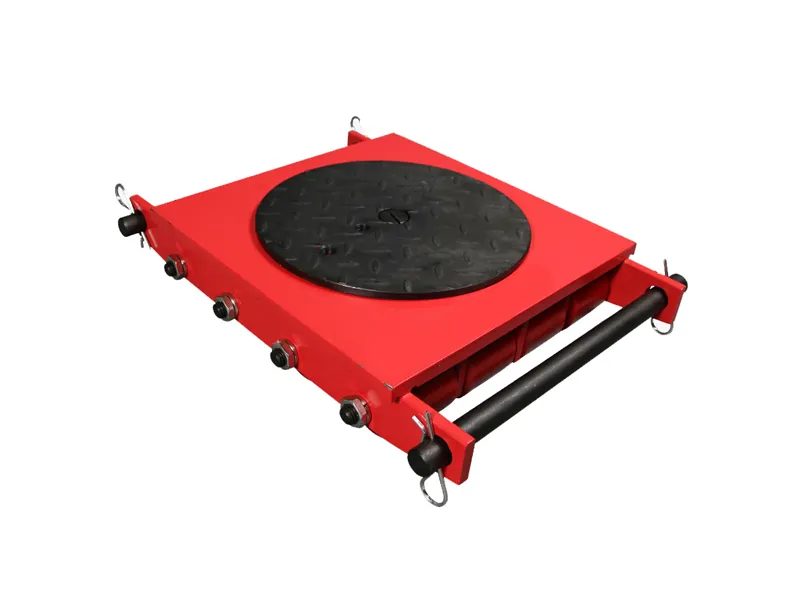

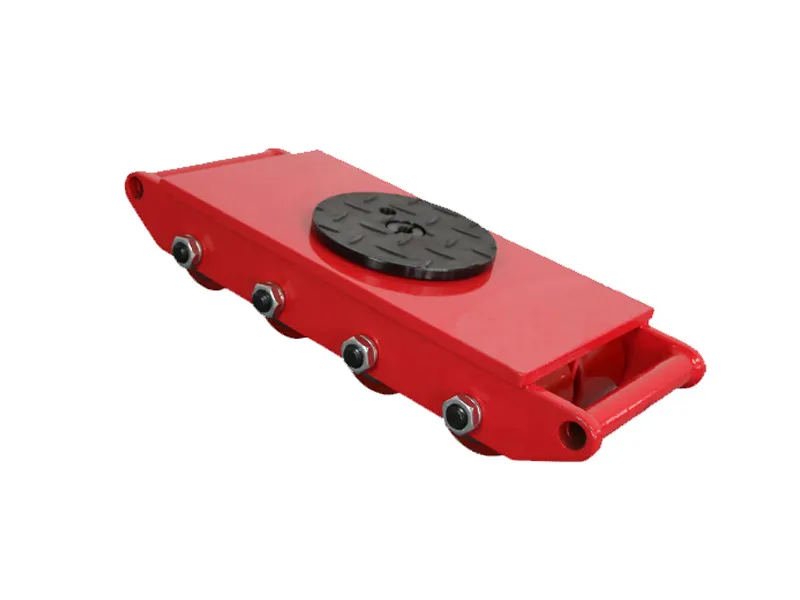

CRB Straight-Line Transport Trolley features a specially designed turntable with multiple threaded holes. Screws securely connect the trolley to transported loads.
CRB Straight-Line Transport Trolley has a single-unit load capacity of 6T to 36T and can be combined with multiple units.
Standard configuration includes rubber wheels; nylon wheels or alloy steel wheels are optional.
Equipped with a control handle for easier and safer steering during forward movement.
Ideal for transporting heavy loads over medium to short distances, especially when used in conjunction with claw jacks and pry bars.
| Technical data | CRB6 | CRB8 | CRB12 | CRB15 |
| height/no. of wheels (80 x 70 mm) | 110 mm/4 | 110 mm/6 | 110 mm/8 | 110 mm/9 |
| Overall dimensions | 300x225x110mm | 400 x 225x 110 mm | 500x 225x 110 mm | 400 x313 x 110 mm |
| Tare weight in kg | 15 kg | 21 kg | 30 kg | 32 kg |
| Load capacity | 60kN(6t) | 80kN(8t) | 120 kN(12t) | 150 kN(15t) |
