Practical

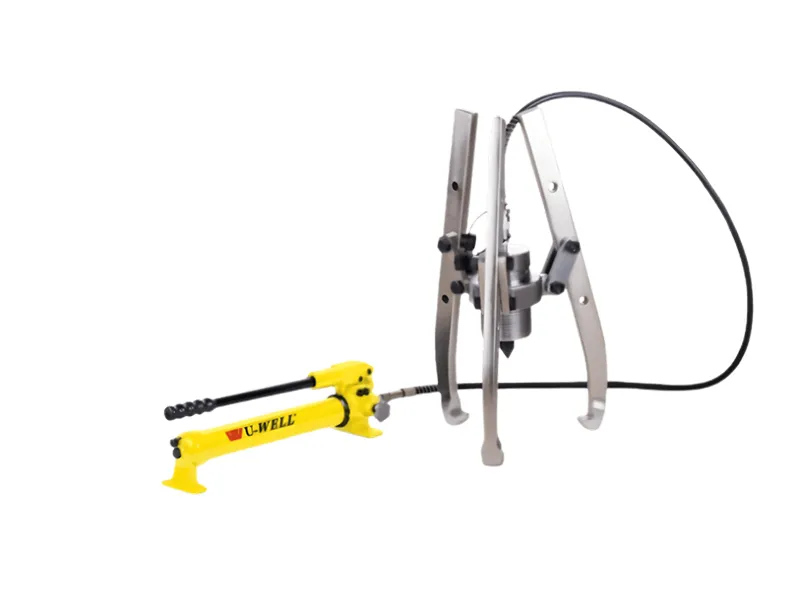

Self-centering, easy to convert, 2-or 3-arm puller.
The arms slide inwards or outwards simultaneously.
Safe:
Arms can never deflect! Economical: 2/3-arm combination puller, 2 pullers for the price of one. Strong:
The greater the pulling force, the tighter the jaws grip the object concerned.
The arms cannot bend or deflect.
Versatile:
Accessory sets are available for the 5 and 50-ton pullers.
Advantages of self-centring pullers:
Prevent damage to shaft and object being pulled.
Work efficient and save time.
Model | Capacity ton (kN) | Spread (mm) | Shaft length (mm) | Stroke (mm) |
YL-5T | 5(49) | 200 | 140 | 50 |
YL-10T | 10(98) | 250 | 160 | 50 |
YL-20T | 20(196) | 350 | 200 | 50 |
YL-30T | 30(294) | 400 | 250 | 50 |
YL-50T | 50(490) | 500 | 300 | 50 |
