The 100-ton puller belt, equipped with adjustable pincer jaws and the hydraulic-driven Cage® design, can firmly lock the workpiece to prevent slipping.
It automatically aligns to prevent eccentric loading, ensuring that the screw rod is always at the center of force, thereby extending its service life.
The roller cart with hydraulic lifting can also be detached and used independently.
The hydraulic-driven safety cage Cage® adjusts the tension.
High-power dual-stage electric pump with a 3m wired switch.
Puller height range:480mm-1690mm. The 100-ton puller includes one each of ø89x37, ø89×483, and ø89×229 screw rod extensions.
Model | Claw count | Capacity ton(kN) | Spread (Max.mm) | Stroke (mm) | Height range | Weight (kg) |
PH-123T | 3/2 | 100 | 191-1778 | 1219 | 673-1690 | 908 |
PH-100T | 3 | 100 | 191-1778 | 1219 | 673-1690 | 855 |
PH-102T | 3 | 100 | 191-1778 | 1219 | 673-1690 | 772 |

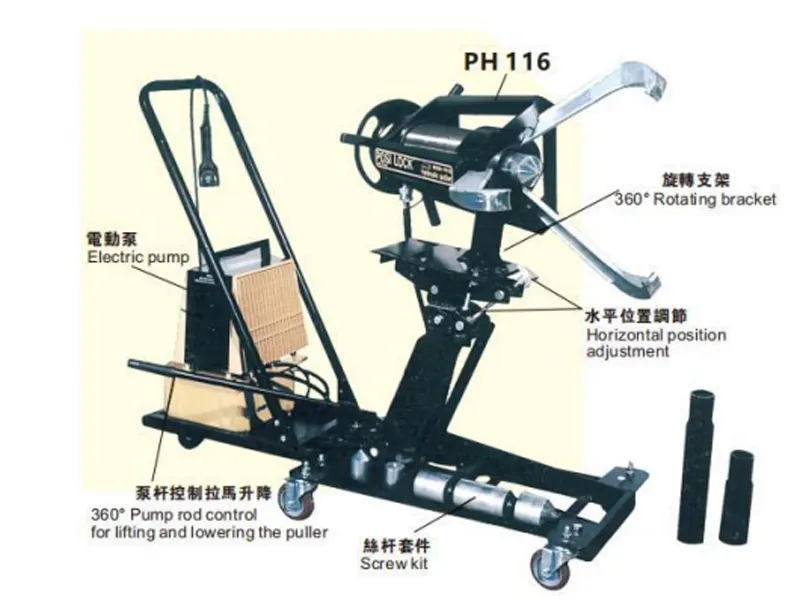

PH-116E/3050 | 3 | 50 | 76-635 | 304 | 480-1420 | 178 |
PHB-113E/3050 | 3 | 25 | 63-457 | 355 | 480-1420 | 135 |
*PHB series vehicle-mounted hydraulic puller can also be equipped with a manual pump according to on-site requirements, and this series of vehicle-mounted lifting systems are universally applicable.
Model | Reach Range (mm) | Spread Range (mm) | Stroke (mm) | Overall Length (mm) | Power Source | Weight (kg) |
US-50 | 455 | 155-860 | 159 | 1035 | 140 | |
UAH500CE | 665-720 | 75-1250 | 330 | 2050 | 220,50HZ | 275 |
| Model | Size | Stroke (mm) | Min. Spread (mm) | Min. Spread (mm) | Cylinder | Adjust H. |
| 14MP50 | 50T | 315 | Ø1250 | Ø170 | Manual valve control | Manual valve adjustment |
| Adjust Automate center | Extension (mm) | Min Height (mm) | Max. H. (mm) | Pressure (mm) | Weight (kg) |
| Manual valve adjustment | 75/150/250 | 810 | 1290 | 50T-700bar | 680 |
Model | Size | Stroke (mm) | Spread (mm) | ofMmn8Ben (mm) | Depth of Maximum open (mm) | Weight (kg) |
14AMP100 | 100T | 200 | 200-1000 | 450 | 375 | 720 |
14AMP200 | 200T | 250 | 300-1500 | 680 | 550 | 1300 |
14AMP300 | 300T | 300 | 400-1800 | 980 | 750 | 1820 |
14AMP500 | 500T | 350 | 500-2000 | 1050 | 920 | 2100 |
14AMP630 | 630T | 350 | 500-2000 | 1250 | 1000 | 2500 |
