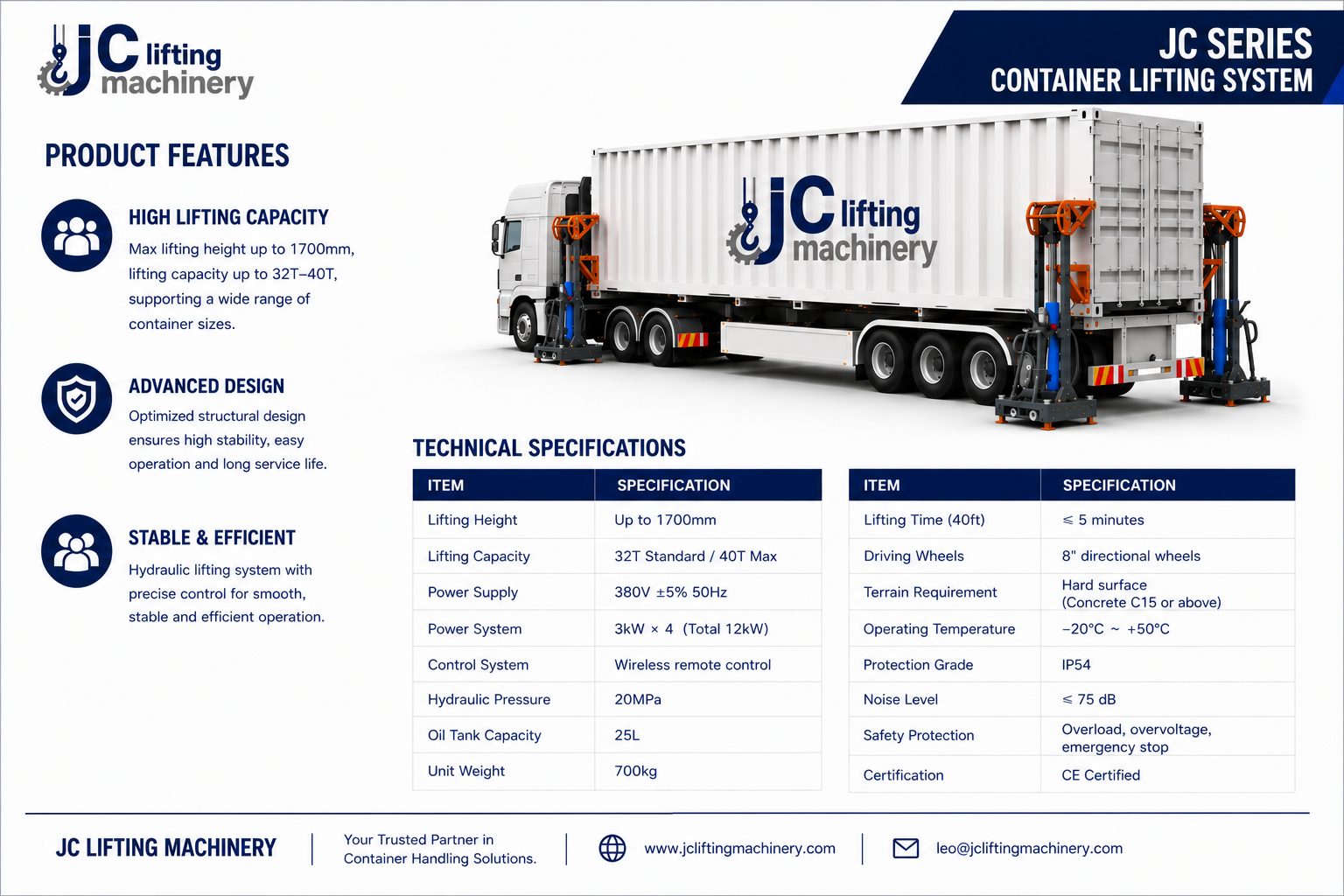

| Use | Can be used by forklift or hand push |
|---|---|
| Applies to | Ordinary and bulk containersRefrigerated and insulated containersFrame, open top containerLivestock ContainersTank container……Note: Both 20feet and 40feet are available |

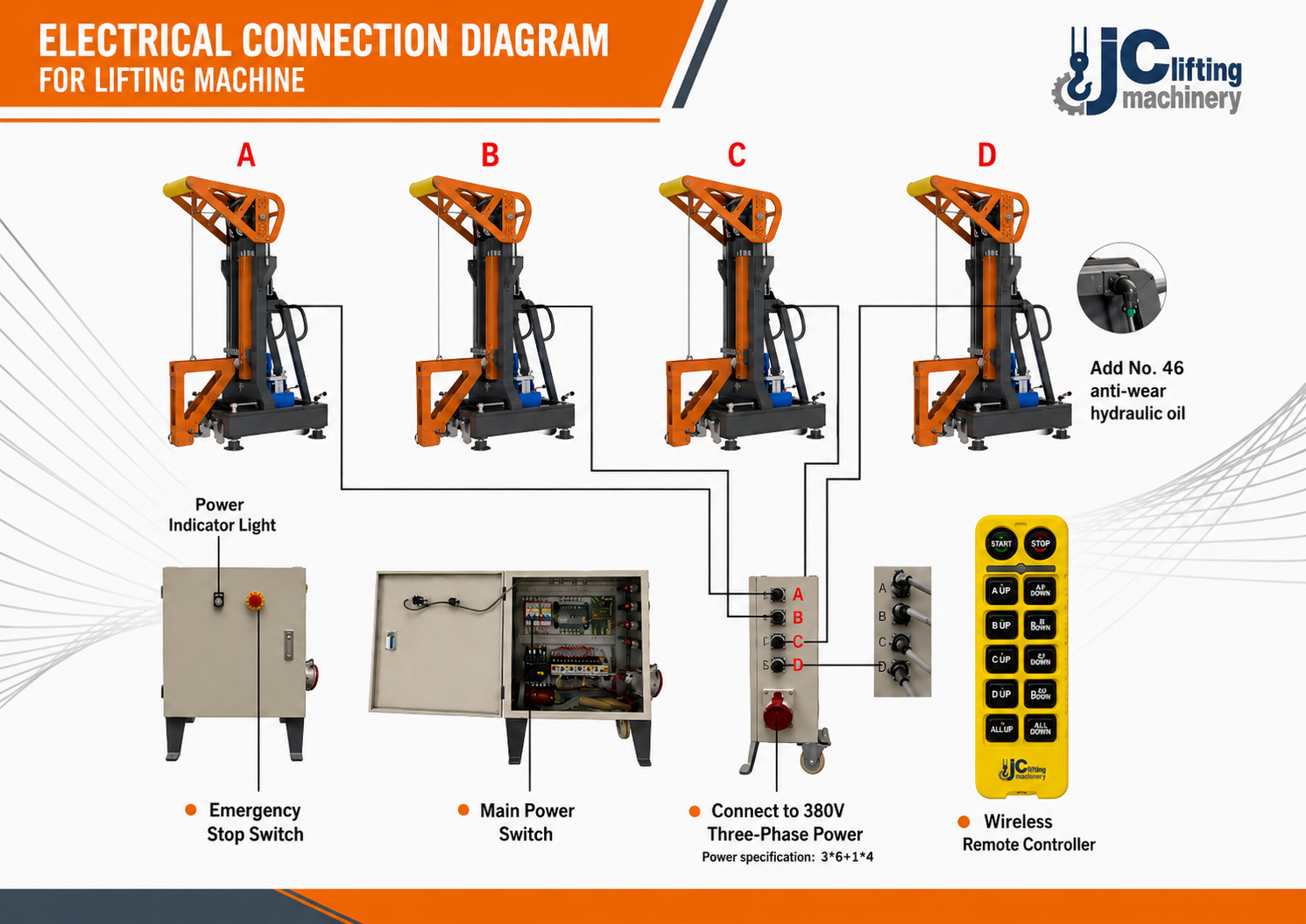

| Electrical control system | Operation control system, quick connection group：One SetHydraulic power supply voltage：380V±5%/50Hz or CustomizedControl cabinet voltage：24V DCOperation control method：Wireless remotecontrolMotor power：3KW, four in total |
| Hydraulic lifting system | Load：8T*4 ,Total load ≤32TOil suction filter accuracy：20μmlifting：Maximum lifting height 1700mm |
| Size parameters | Device size：Per device:2.16m0.8m1.3m (Chassis size 0.8m1m) Four in totalEquipment wheel：Per device: Front 19cm2+ Rear (universal wheel) 12cm2Hydraulic oil tank：25LHydraulic Cylinder：15LDistribution box size：0.5m0.25m0.5m1Distribution box bracket size：0.5m0.4m0.3m1Motor：1445r/minWire Rope：Per device: φ12mm,2.6m4（5.2m2）φ4mm,2.6m1Quick-connect cable：41.5+（40.5）P |
