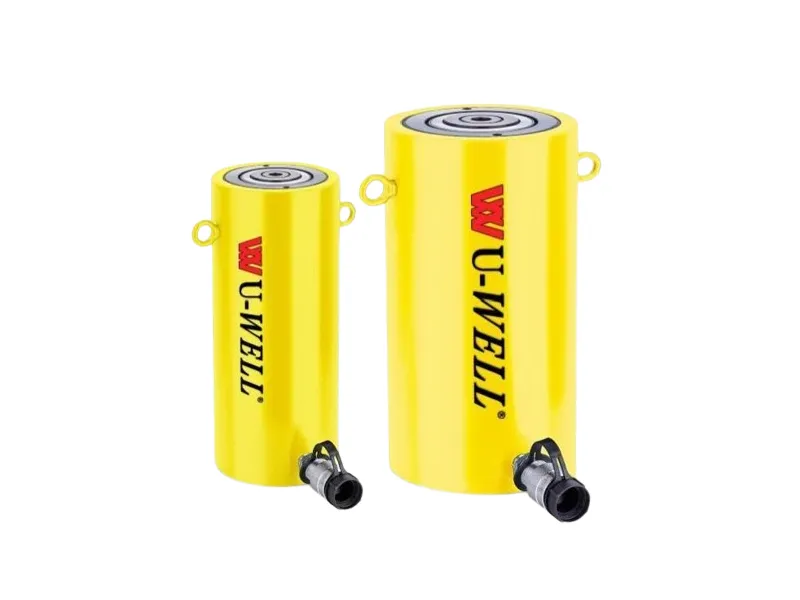

Integral stop ring provides piston blow-out protection.
Baked enamel outside finish and plated pistons provide superior corrosion protection.
Interchangeable, hardened grooved saddles are standard.
Base mounting holes are standard on all models.
Plunger wiper reduces contamination, extending cylinder life.
Single-acting, load return.
Cylinder Capacity ton (KN) | Stroke (mm) | Model Number | Cylinder Effective Area (cm²) | Oil Capacity (cm³) | Collapsed Height (mm) | Weight (kg) |
50 (539) | 50 | CLSG-502 | 77.0 | 385 | 162 | 17 |
100 | CLSG-504 | 77.0 | 770 | 212 | 20 | |
150 | CLSG-506 | 77.0 | 1155 | 262 | 23 | |
200 | CLSG-508 | 77.0 | 1540 | 312 | 27 | |
250 | CLSG-5010 | 77.0 | 1924 | 362 | 31 | |
300 | CLSG-5012 | 77.0 | 2309 | 412 | 34 | |
100 (929) | 50 | CLSG-1002 | 132.7 | 664 | 182 | 19 |
100 | CLSG-1004 | 132.7 | 1327 | 232 | 29 | |
150 | CLSG-1006 | 132.7 | 1991 | 282 | 40 | |
200 | CLSG-1008 | 132.7 | 2655 | 332 | 50 | |
250 | CLSG-10010 | 132.7 | 3318 | 382 | 61 | |
300 | CLSG-10012 | 132.7 | 3982 | 432 | 71 | |
150 (1390) | 50 | CLSG-1502 | 198.6 | 993 | 196 | 39 |
100 | CLSG-1504 | 198.6 | 1986 | 246 | 52 | |
150 | CLSG-1506 | 198.6 | 2978 | 296 | 65 | |
200 | CLSG-1508 | 198.6 | 3971 | 346 | 78 | |
250 | CLSG-15010 | 198.6 | 4964 | 396 | 92 | |
300 | CLSG-15012 | 198.6 | 5957 | 446 | 105 | |
200 (1861) | 50 | CLSG-2002 | 265.9 | 1330 | 216 | 55 |
150 | CLSG-2006 | 265.9 | 3989 | 316 | 91 | |
300 | CLSG-20012 | 265.9 | 7977 | 466 | 146 | |
250 (2565) | 50 | CLSG-2502 | 366.4 | 1832 | 235 | 102 |
150 | CLSG-2506 | 366.4 | 5497 | 335 | 136 | |
300 | CLSG-25012 | 366.4 | 10993 | 485 | 207 | |
300 (3193) | 50 | CLSG-3002 | 456.2 | 2281 | 312 | 184 |
150 | CLSG-3006 | 456.2 | 6843 | 412 | 232 | |
300 | CLSG-30012 | 456.2 | 13685 | 562 | 303 | |
400 (3919) | 50 | CLSG-4002 | 559.9 | 2800 | 375 | 270 |
150 | CLSG-4006 | 559.9 | 8399 | 475 | 330 | |
300 | CLSG-40012 | 559.9 | 16797 | 625 | 421 | |
500 (5114) | 50 | CLSG-5002 | 730.6 | 3653 | 419 | 401 |
150 | CLSG-5006 | 730.6 | 10959 | 519 | 480 | |
300 | CLSG-50012 | 730.6 | 21918 | 669 | 599 | |
600 (5987) | 50 | CLSG-6002 | 855.3 | 4276 | 429 | 474 |
150 | CLSG-6006 | 855.3 | 12829 | 529 | 565 | |
300 | CLSG-60012 | 855.3 | 25659 | 679 | 701 | |
800 (8234) | 50 | CLSG-8002 | 1176.3 | 5881 | 474 | 741 |
150 | CLSG-8006 | 1176.3 | 17644 | 574 | 880 | |
300 | CLSG-80012 | 1176.3 | 35288 | 724 | 1058 | |
1000 (10260) | 50 | CLSG-10002 | 1465.7 | 7329 | 564 | 1062 |
150 | CLSG-10006 | 1465.7 | 21986 | 664 | 1213 | |
300 | CLSG-100012 | 1465.7 | 43972 | 814 | 1439 |
Base Mounting Hole Dimensions(mm) | |||
Model | Bolt | Thread | Min.Thread |
Capacity | Circle | Size | Depth |
ton | U | V | Z |
CLSG-50 | 65 | 2xM12 | 22 |
CLSG-100 | 95 | 2xM12 | 22 |
CLSG-150 | 130 | 2x M12 | 22 |
CLSG-200 | 165 | 3xM12 | 22 |
CLSG-250 | 190 | 3xM12 | 22 |
CLSG-300 | 180 | 3xM16 | 30 |
CLSG-400 | 205 | 3x M16 | 30 |
CLSG-500 | 250 | 3xM24 | 36 |
CLSG-600 | 275 | 3x M24 | 36 |
CLSG-800 | 330 | 3x M24 | 36 |
CLSG-1000 | 375 | 3x M24 | 36 |
Cylinder Capacity ton(kN) | Stroke (mm) | Model Number | Cylinder Effective Area (cm²) | Oil Capacity (cm³) |
50 (539) | 50 | CLSG-502 | 77.0 | 385 |
100 | CLSG-504 | 77.0 | 770 | |
150 | CLSG-506 | 77.0 | 1155 | |
200 | CLSG-508 | 77.0 | 1540 | |
250 | CLSG-5010 | 77.0 | 1924 | |
300 | CLSG-5012 | 77.0 | 2309 | |
100 (929) | 50 | CLSG-1002 | 132.7 | 664 |
100 | CLSG-1004 | 132.7 | 1327 | |
150 | CLSG-1006 | 132.7 | 1991 | |
200 | CLSG-1008 | 132.7 | 2655 | |
250 | CLSG-10010 | 132.7 | 3318 | |
300 | CLSG-10012 | 132.7 | 3982 | |
150 (1390) | 50 | CLSG-1502 | 198.6 | 993 |
100 | CLSG-1504 | 198.6 | 1986 | |
150 | CLSG-1506 | 198.6 | 2978 | |
200 | CLSG-1508 | 198.6 | 3971 | |
250 | CLSG-15010 | 198.6 | 4964 | |
300 | CLSG-15012 | 198.6 | 5957 | |
200 (1861) | 50 | CLSG-2002 | 265.9 | 1330 |
150 | CLSG-2006 | 265.9 | 3989 | |
300 | CLSG-20012 | 265.9 | 7977 | |
250 (2565) | 50 | CLSG-2502 | 366.4 | 1832 |
150 | CLSG-2506 | 366.4 | 5497 | |
300 | CLSG-25012 | 366.4 | 10993 | |
300 (3193) | 50 | CLSG-3002 | 456.2 | 2281 |
150 | CLSG-3006 | 456.2 | 6843 | |
300 | CLSG-30012 | 456.2 | 13685 | |
400 (3919) | 50 | CLSG-4002 | 559.9 | 2800 |
150 | CLSG-4006 | 559.9 | 8399 | |
300 | CLSG-40012 | 559.9 | 16797 | |
500 (5114) | 50 | CLSG-5002 | 730.6 | 3653 |
150 | CLSG-5006 | 730.6 | 10959 | |
300 | CLSG-50012 | 730.6 | 21918 | |
600 (5987) | 50 | CLSG-6002 | 855.3 | 4276 |
150 | CLSG-6006 | 855.3 | 12829 | |
300 | CLSG-60012 | 855.3 | 25659 | |
800 (8234) | 50 | CLSG-8002 | 1176.3 | 5881 |
150 | CLSG-8006 | 1176.3 | 17644 | |
300 | CLSG-80012 | 1176.3 | 35288 | |
1000 (10260) | 50 | CLSG-10002 | 1465.7 | 7329 |
150 | CLSG-10006 | 1465.7 | 21986 | |
300 | CLSG-100012 | 1465.7 | 43972 |
Collapsed Height A (mm) | Extended Height B (mm) | Outside Dia. D (mm) | Cylinder Bore Dia. E (mm) | Plunger Dia. F (mm) | Base to Adv. Port H (mm) | Standard Saddle Dia. J (mm) | Saddle Protr. from Plgr K (mm) | Depth of Plunger Hole L (mm) | Weight (kg) | Model Number | *Optional Tilt Saddle | ||
Saddle Dia. J1 (mm) | Saddle Height K1 (mm) | Saddle Model Number | |||||||||||
162 | 212 | 130 | 99.0 | 70.0 | 52 | 50 | 1 | 19 | 17 | CLSG-502 | 50 | 24 | CATG-50 |
212 | 312 | 130 | 99.0 | 70.0 | 52 | 50 | 1 | 19 | 20 | CLSG-504 | 50 | 24 | CATG-50 |
262 | 412 | 130 | 99.0 | 70.0 | 52 | 50 | 1 | 19 | 23 | CLSG-506 | 50 | 24 | CATG-50 |
312 | 512 | 130 | 99.0 | 70.0 | 52 | 50 | 1 | 19 | 27 | CLSG-508 | 50 | 24 | CATG-50 |
362 | 612 | 130 | 99.0 | 70.0 | 52 | 50 | 1 | 19 | 31 | CLSG-5010 | 50 | 24 | CATG-50 |
412 | 712 | 130 | 99.0 | 70.0 | 52 | 50 | 1 | 19 | 34 | CLSG-5012 | 50 | 24 | CATG-50 |
182 | 232 | 165 | 130.0 | 95.0 | 54 | 75 | 1 | 19 | 19 | CLSG-1002 | 73 | 29 | CATG-100 |
232 | 332 | 165 | 130.0 | 95.0 | 54 | 75 | 1 | 19 | 29 | CLSG-1004 | 73 | 29 | CATG-100 |
282 | 432 | 165 | 130.0 | 95.0 | 54 | 75 | 1 | 19 | 40 | CLSG-1006 | 73 | 29 | CATG-100 |
332 | 532 | 165 | 130.0 | 95.0 | 54 | 75 | 1 | 19 | 50 | CLSG-1008 | 73 | 29 | CATG-100 |
382 | 632 | 165 | 130.0 | 95.0 | 54 | 75 | 1 | 19 | 61 | CLSG-10010 | 73 | 29 | CATG-100 |
432 | 732 | 165 | 130.0 | 95.0 | 54 | 75 | 1 | 19 | 71 | CLSG-10012 | 73 | 29 | CATG-100 |
196 | 246 | 205 | 159.0 | 114.0 | 61 | 94 | 1 | 19 | 39 | CLSG-1502 | 91 | 31 | CATG-150 |
246 | 346 | 205 | 159.0 | 114.0 | 61 | 94 | 1 | 19 | 52 | CLSG-1504 | 91 | 31 | CATG-150 |
296 | 446 | 205 | 159.0 | 114.0 | 61 | 94 | 1 | 19 | 65 | CLSG-1506 | 91 | 31 | CATG-150 |
346 | 546 | 205 | 159.0 | 114.0 | 61 | 94 | 1 | 19 | 78 | CLSG-1508 | 91 | 31 | CATG-150 |
396 | 646 | 205 | 159.0 | 114.0 | 61 | 94 | 1 | 19 | 92 | CLSG-15010 | 91 | 31 | CATG-150 |
446 | 746 | 205 | 159.0 | 114.0 | 61 | 94 | 1 | 19 | 105 | CLSG-15012 | 91 | 31 | CATG-150 |
216 | 266 | 235 | 184.0 | 133.0 | 67 | 113 | 1 | 24 | 55 | CLSG-2002 | 118 | 35 | CATG-200 |
316 | 466 | 235 | 184.0 | 133.0 | 67 | 113 | 1 | 24 | 91 | CLSG-2006 | 118 | 35 | CATG-200 |
466 | 766 | 235 | 184.0 | 133.0 | 67 | 113 | 1 | 24 | 146 | CLSG-20012 | 118 | 35 | CATG-200 |
235 | 285 | 275 | 216.0 | 165.0 | 73 | 145 | 1 | 24 | 102 | CLSG-2502 | 144 | 46 | CATG-250 |
335 | 485 | 275 | 216.0 | 165.0 | 73 | 145 | 1 | 24 | 136 | CLSG-2506 | 144 | 46 | CATG-250 |
485 | 785 | 275 | 216.0 | 165.0 | 73 | 145 | 1 | 24 | 207 | CLSG-25012 | 144 | 46 | CATG-250 |
312 | 362 | 310 | 241.0 | 197.0 | 101 | 177 | 1 | 19 | 184 | CLSG-3002 | 160 | 62 | CATG-300 |
412 | 562 | 310 | 241.0 | 197.0 | 101 | 177 | 1 | 19 | 232 | CLSG-3006 | 160 | 62 | CATG-300 |
562 | 862 | 310 | 241.0 | 197.0 | 101 | 177 | 1 | 19 | 303 | CLSG-30012 | 160 | 62 | CATG-300 |
375 | 425 | 350 | 267.0 | 216.0 | 114 | 196 | 3 | 27 | 270 | CLSG-4002 | 193 | 51 | CATG-400 |
475 | 625 | 350 | 267.0 | 216.0 | 114 | 196 | 3 | 27 | 330 | CLSG-4006 | 193 | 51 | CATG-400 |
625 | 925 | 350 | 267.0 | 216.0 | 114 | 196 | 3 | 27 | 421 | CLSG-40012 | 193 | 51 | CATG-400 |
419 | 469 | 400 | 305.0 | 248.0 | 114 | 228 | 3 | 27 | 401 | CLSG-5002 | 228 | 63 | CATG-500 |
519 | 669 | 400 | 305.0 | 248.0 | 114 | 228 | 3 | 27 | 480 | CLSG-5006 | 228 | 63 | CATG-500 |
669 | 969 | 400 | 305.0 | 248.0 | 114 | 228 | 3 | 27 | 599 | CLSG-50012 | 228 | 63 | CATG-500 |
429 | 479 | 430 | 330.0 | 267.0 | 114 | 247 | 3 | 27 | 474 | CLSG-6002 | 241 | 76 | CATG-600 |
529 | 679 | 430 | 330.0 | 267.0 | 114 | 247 | 3 | 27 | 565 | CLSG-6006 | 241 | 76 | CATG-600 |
679 | 979 | 430 | 330.0 | 267.0 | 114 | 247 | 3 | 27 | 701 | CLSG-60012 | 241 | 76 | CATG-600 |
474 | 524 | 505 | 387.0 | 317.0 | 149 | 297 | 3 | 27 | 741 | CLSG-8002 | 287 | 75 | CATG-800 |
574 | 724 | 505 | 387.0 | 317.0 | 149 | 297 | 3 | 27 | 880 | CLSG-8006 | 287 | 75 | CATG-800 |
724 | 1024 | 505 | 387.0 | 317.0 | 149 | 297 | 3 | 27 | 1058 | CLSG-80012 | 287 | 75 | CATG-800 |
564 | 614 | 560 | 432.0 | 343.0 | 174 | 323 | 3 | 27 | 1062 | CLSG-10002 | 311 | 93 | CATG-1000 |
664 | 814 | 560 | 432.0 | 343.0 | 174 | 323 | 3 | 27 | 1213 | CLSG-10006 | 311 | 93 | CATG-1000 |
814 | 1114 | 560 | 432.0 | 343.0 | 174 | 323 | 3 | 27 | 1439 | CLSG-100012 | 311 | 93 | CATG-1000 |
