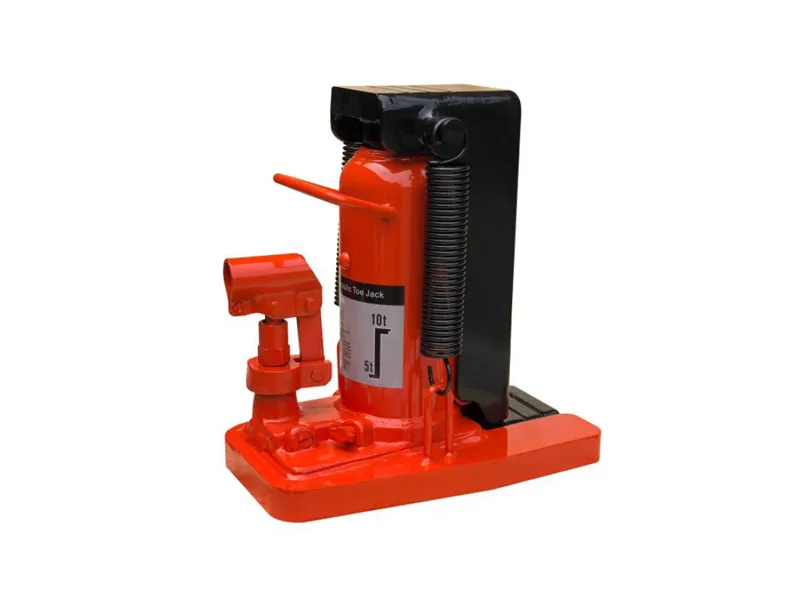

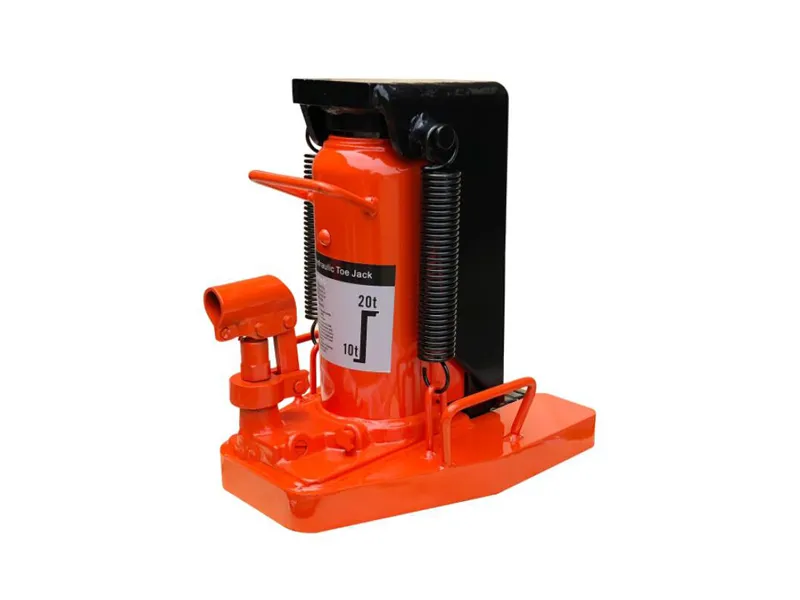

Complies with ASME B30.1 safety standards.
All components are designed to industrial specifications, ensuring consistent quality and extended service life.
Integrally forged claw hooks feature robust construction, preventing breakage and deformation.
Piston components are chrome-plated with exceptionally smooth surfaces that won't wear oil seals, eliminating jack leakage.
Equipped with a piston retraction assist spring for maximum descent speed, saving time and enhancing efficiency.
| Technical data | MHC-2.5RS | MHC-05RS | MHC-10RS | MHC-15RS | MHC-25RS |
| Top Cap | 50 kN (5 t) | 100 kN (10 t) | 200 kN (20 t) | 300 kN (30 t) | 500 kN (50 t) |
| Toe-Lift Cap | 25 kN (2.5 t) | 50 kN (5 t) | 100 kN (10 t) | 150 kN (15 t) | 250 kN (25 t) |
| Height | 16 mm | 25 mm | 32 mm | 32 mm | 40 mm |
| Stroke | 114 mm | 123 mm | 141 mm | 168 mm | 120 mm |
| Dimensions | 215*160*260 mm | 305*220*320 mm | 325*275*355 mm | 330*280*360 mm | 395*300*420 mm |
| Weight | 10 kg | 14 kg | 38 kg | 48 kg | 80 kg |
