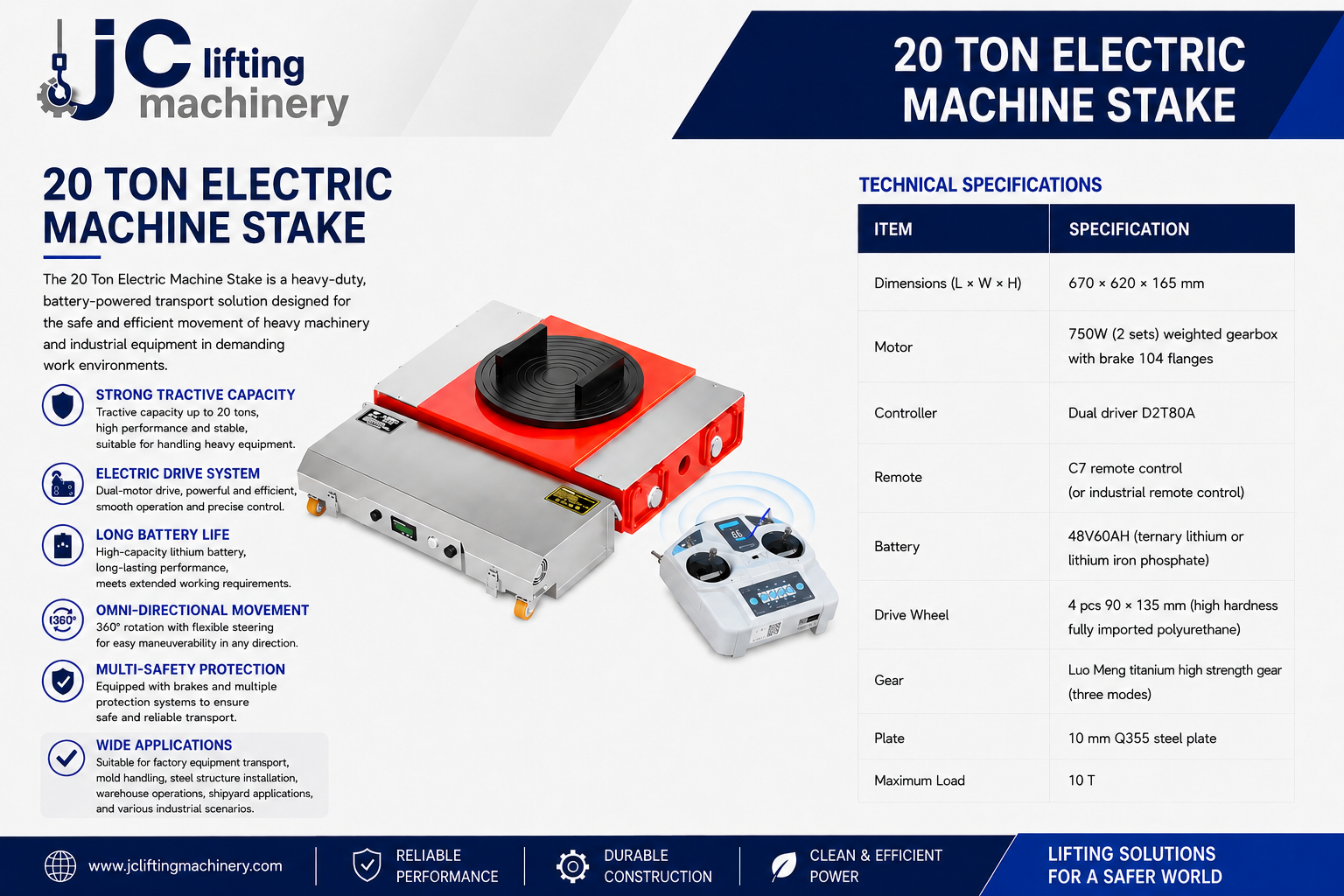

| Dimensions | Length 670 (mm); width 620 (mm); Height 165 (mm) |
| Motor | 750w (2 sets) weighted gearbox with brake 104 flanges |
| Controller | Dual driver D2T80A |
| Remote | C6/C7 remote control (or industrial remote control) |
| Battery | 48V 60AH (ternary lithium or lithium iron phosphate) |
| Working Current | 60A |
| Charging Current | 54. 6 |
| Drive Wheel | 4 90*135 (high hardness fully imported polyurethane) |
| Gear | Luo Meng titanium high strength gear (three modes) |
| Plate | 10mm Q355 steel plate |
| Maximum Towing Weight | 20T |
| Maximum Load | 10T |
