Double-acting hydraulic design. Use for dismantling large shafts and perforating work pieces.

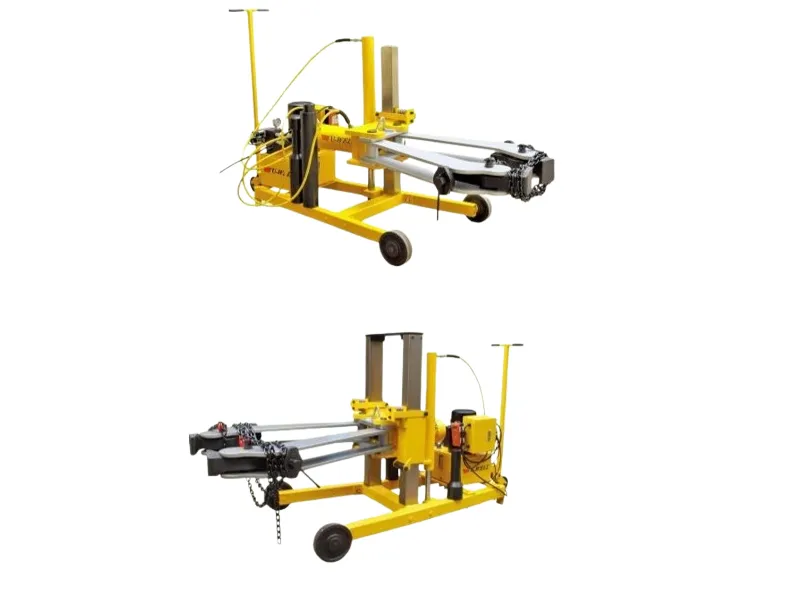

Fully automatic hydraulic design--automatically up and down, grip and pull. Roller cart to change workplace.

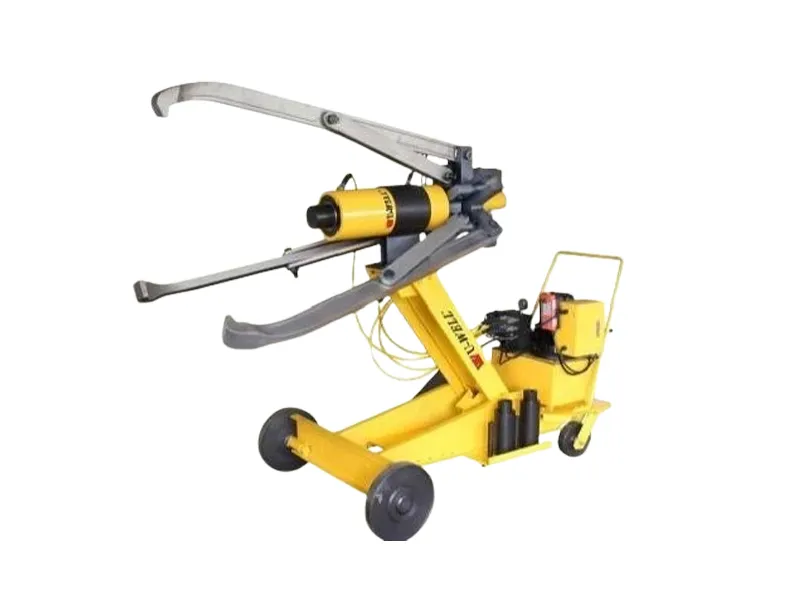

Available in 2 and 3 jaw design allows adding a pulling disc to pull bearings. Easy operation, high efficiency.
Model | Size | Min Open (mm) | Pulling Depth of Min.Open (mm) | Maximum Open (mm) | Depth of Maximum.Open (mm) | Regulation of Puler Center Height (mm) | Cylinder Stroke (mm) | Source of Power | Overall Length | Weight (kg) |
LA50337 | 50T | 100 | 381 | 1220 | 178 | 450-1120 | 337 | 380V | 2286 | 620 |
LA50L337 | 50T | 64 | 651 | 1150 | 559 | 450-1120 | 337 | 380V | 2590 | 660 |
LA100330 | 100T | 120 | 580 | 1400 | 425 | 500-1250 | 320 | 380V | 2300 | 680 |
LA200320 | 200T | 285 | 680 | 1500 | 520 | 720-1500 | 320 | 380V | 2500 | 1040 |
Model | Size | Min Open (mm) | Pulling Depth of Minmum Open (mm | Maximum.Open (mm) | Weight (kg) |
LA25100 | 100T | 381 | 1066 | 1219 | 520 |
LA2560 | 60T | 140 | 790 | 1000 | 700 |
LA25200 | 200T | 450 | 1200 | 1450 | 1020 |
Maximum Open | Regulation Piller Center Height (mm) | Cylinder Stroke (mm) | Source of Power | Weight (kg) |
863 | 305-915 | 250 | 380V | 3015 |
650 | 305-915 | 250 | 380V | 2885 |
995 | 450-1050 | 280 | 380V | 3500 |
