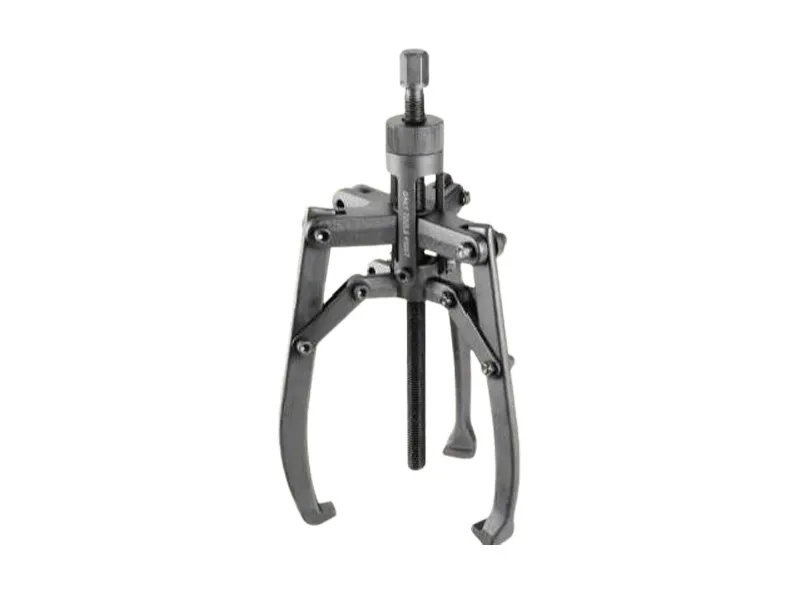

A simple, convenient, and safe pulling tool
In the current market, this patent's unique, fast-sync-moving claw hook design can definitely provide the most user-friendly and safest pulling function. This simplest and most efficient fast-sync moving claw hook design allows users to quickly and accurately position the puller at the center of the workpiece during operation, even with just one person.
User-friendly design:
Operating force ranges from 2 tons to 10 tons, available for selection.
According to the needs of the us age environment, users can choose between 3 claws, 2 claws, or2/3 claws for ease of operation.
Safety:
The claw hook structure with automatic locking ensures that it will never loosen, thus avoiding the phenomenon of claw hook loosening during high-force use or after disassembly.
The claw hook and claw base are made of chrome-manganese alloy steel, forged and heat-treated, providing users with the most reliable and durable choice.
The main screw and claw hook screw are made of high-carbon steel; meanwhile, the claw hook screw features an anti-loose design, ensuring no loosening or falling off.
Save costs:
The automatic center positioning function can prevent damage to the spindle and the workpiece to be disassembled.
The world's first patented design for a synchronized puller with shared 2/3 claws is the most efficient and cost-effective pulling tool.
Model | Capacity ton(kN) | Reach (Max.mm) | Spread (Max.mm) | Shaft Dia. (mm) | Jaw Tip (mm) | Weight (kg) | ||
E | A | B | C | |||||
UAM-2-120 | 2 Ton | 80 | 120 | Ø5/8"×11T | 8 | 6 | 15 | 1.6 |
UAM-3-180 | 3 Ton | 120 | 180 | Ø5/8"×11T | 6 | 7 | 15 | 2.3 |
UAM-5-270 | 5 Ton | 160 | 270 | Ø3/4"×10T | 11 | 10 | 25 | 4.3 |
UAM-8-300 | 8 Ton | 210 | 300 | Ø3/4"×10T | 13 | 14 | 27 | 6.1 |
UAM-10-380 | 10 Ton | 250 | 380 | Ø7/8×14T | 14 | 10 | 29 | 9.6 |
