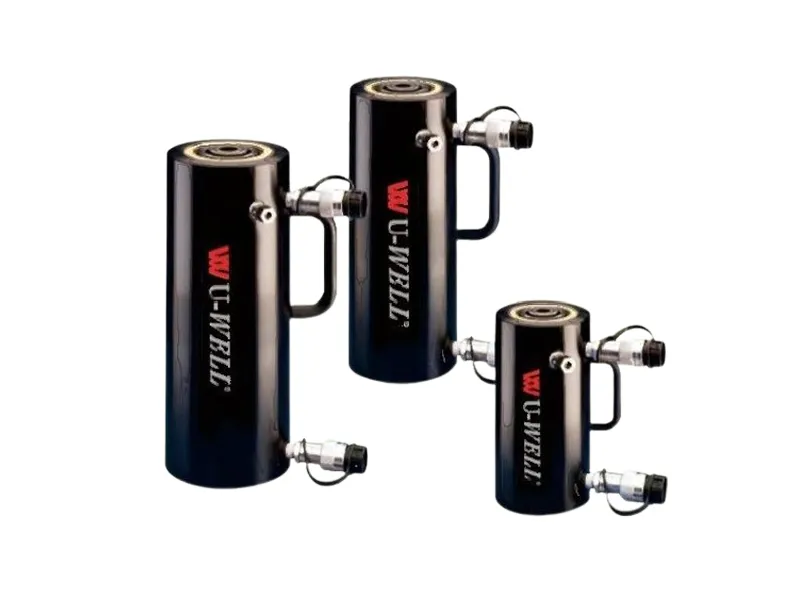

Double-acting for rapid retraction, regardless of hose lengths or system losses.
Composite bearings increase cylinder life and sideload resistance.
Hard-Coat finish on all surfaces resists damage and extends cylinder life.
Handles included on all models.
Steel base plate and saddle for protection against load-induced damage.
Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity.
Built-in safety valve prevents accidental over-pressurization.
@700 bar Cylinder Capacity ton | Stroke (mm) | Model Number | Maximum Working Capacity of Hydraulic Cylinder (kN) | Cylinder Effective Area (cm²) | Oil Capacity (cm³) | |||
Push | Pull | Push | Pull | Push | Pull | |||
20 | 50 | RAR-202 | 218 | 130 | 31.2 | 18.6 | 156 | 93 |
100 | RAR-204 | 218 | 130 | 31.2 | 18.6 | 312 | 186 | |
150 | RAR-206 | 218 | 130 | 31.2 | 18.6 | 468 | 279 | |
200 | RAR-208 | 218 | 130 | 31.2 | 18.6 | 624 | 372 | |
250 | RAR-2010 | 218 | 130 | 31.2 | 18.6 | 780 | 465 | |
30 | 50 | RAR-302 | 309 | 179 | 44.2 | 24.5 | 221 | 123 |
100 | RAR-304 | 309 | 179 | 44.2 | 24.5 | 442 | 245 | |
150 | RAR-306 | 309 | 179 | 44.2 | 24.5 | 663 | 368 | |
200 | RAR-308 | 309 | 179 | 44.2 | 24.5 | 884 | 490 | |
250 | RAR-3010 | 309 | 179 | 44.2 | 24.5 | 1105 | 613 | |
50 | 50 | RAR-502 | 496 | 187 | 70.9 | 26.7 | 354 | 134 |
100 | RAR-504 | 496 | 187 | 70.9 | 26.7 | 709 | 267 | |
150 | RAR-506 | 496 | 187 | 70.9 | 26.7 | 1063 | 401 | |
200 | RAR-508 | 496 | 187 | 70.9 | 26.7 | 1417 | 534 | |
250 | RAR-5010 | 496 | 187 | 70.9 | 26.7 | 1771 | 668 | |
100 | 50 | RAR-1002 | 1002 | 557 | 143.1 | 79.5 | 715 | 398 |
100 | RAR-1004 | 1002 | 557 | 143.1 | 79.5 | 1431 | 795 | |
150 | RAR-1006 | 1002 | 557 | 143.1 | 79.5 | 2147 | 1193 | |
200 | RAR-1008 | 1002 | 557 | 143.1 | 79.5 | 2863 | 1590 | |
250 | RAR-10010 | 1002 | 557 | 143.1 | 79.5 | 3578 | 1988 | |
150 | 50 | RAR-1502 | 1589 | 924 | 227.0 | 132.0 | 1135 | 660 |
100 | RAR-1504 | 1589 | 924 | 227.0 | 132.0 | 2270 | 1320 | |
150 | RAR-1506 | 1589 | 924 | 227.0 | 132.0 | 3405 | 1980 | |
200 | RAR-1508 | 1589 | 924 | 227.0 | 132.0 | 4540 | 2640 | |
250 | RAR-15010 | 1589 | 924 | 227.0 | 132.0 | 5675 | 3300 | |
Optional Bolt-on Tilt Saddle Dimensions(mm) | ||||
For Cylinder Model/Capacity ton | Tilt Saddle Model Number | Tilt Saddle Diameter J1 | Sadle Protrusion from Plunger K1 |  |
RAR-50 | CATG-50 | 50 | 24 | |
RAR-100 | CATG-150 | 73 | 29 | |
RAR-150 | CATG-200 | 91 | 31 | |
Steel Base Plate Mounting Holes | |||
Cylinder Model / Capacity ton | Bolt Circle U (mm) | Thread V (mm) | Thread Depth” Z (mm) |
RAR-20 | 93 | M6 | 12 |
RAR-30 | 105 | M6 | 12 |
RAR-50 | 110 | M6 | 12 |
RAR-100 | 165 | M6 | 12 |
RAR-150 | 200 | M6 | 12 |
Heightt A (mm) | Extended Height B (mm) | Outside Diameter D (mm) | Cylinder Bore Diameter E (mm) | Plunger Diameter F (mm) | Bottom to Advance Port H (mm) | Saddle Diameter (mm) | Saddle Protrusion from Plunger (mm) | Distance from saddle to body K (mm) | Weight (kg) | Model Number* |
189 | 239 | 113 | 63 | 40 | 30 | 50 | 30 | 3 | 7.4 | RAR-202 |
239 | 339 | 113 | 63 | 40 | 30 | 50 | 30 | 3 | 8.0 | RAR-204 |
289 | 439 | 113 | 63 | 40 | 30 | 50 | 30 | 3 | 8.6 | RAR-206 |
339 | 539 | 113 | 63 | 40 | 30 | 50 | 30 | 3 | 9.2 | RAR-208 |
389 | 639 | 113 | 63 | 40 | 30 | 50 | 30 | 3 | 9.8 | RAR-2010 |
201 | 251 | 125 | 75 | 50 | 30 | 55 | 40 | 3 | 8.6 | RAR-302 |
251 | 351 | 125 | 75 | 50 | 30 | 55 | 40 | 3 | 9.5 | RAR-304 |
301 | 451 | 125 | 75 | 50 | 30 | 55 | 40 | 3 | 10.4 | RAR-306 |
351 | 551 | 125 | 75 | 50 | 30 | 55 | 40 | 3 | 11.3 | RAR-308 |
401 | 651 | 125 | 75 | 50 | 30 | 55 | 40 | 3 | 12.2 | RAR-3010 |
201 | 251 | 145 | 95 | 75 | 30 | 56 | 50 | 3 | 11.1 | RAR-502 |
251 | 351 | 145 | 95 | 75 | 30 | 56 | 50 | 3 | 12.7 | RAR-504 |
301 | 451 | 145 | 95 | 75 | 30 | 56 | 50 | 3 | 14.3 | RAR-506 |
351 | 551 | 145 | 95 | 75 | 30 | 56 | 50 | 3 | 15.9 | RAR-508 |
401 | 651 | 145 | 95 | 75 | 30 | 56 | 50 | 3 | 17.5 | RAR-5010 |
251 | 301 | 185 | 135 | 90 | 43 | 80 | 75 | 3 | 16.4 | RAR-1002 |
301 | 401 | 185 | 135 | 90 | 43 | 80 | 75 | 3 | 19.3 | RAR-1004 |
351 | 501 | 185 | 135 | 90 | 43 | 80 | 75 | 3 | 22.2 | RAR-1006 |
401 | 601 | 185 | 135 | 90 | 43 | 80 | 75 | 3 | 25.1 | RAR-1008 |
451 | 701 | 185 | 135 | 90 | 43 | 80 | 75 | 3 | 28.0 | RAR-10010 |
248 | 298 | 230 | 170 | 110 | 38 | 75 | 113 | 3 | 24.2 | RAR-1502 |
298 | 398 | 230 | 170 | 110 | 38 | 75 | 113 | 3 | 28.9 | RAR-1504 |
348 | 498 | 230 | 170 | 110 | 38 | 75 | 113 | 3 | 33.2 | RAR-1506 |
398 | 598 | 230 | 170 | 110 | 38 | 75 | 113 | 3 | 37.9 | RAR-1508 |
448 | 698 | 230 | 170 | 110 | 38 | 75 | 113 | 3 | 42.6 | RAR-15010 |
