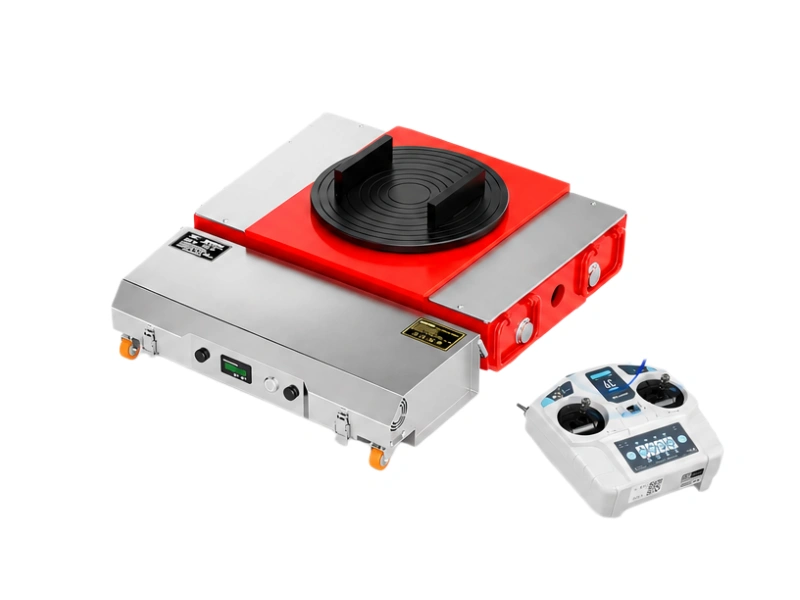

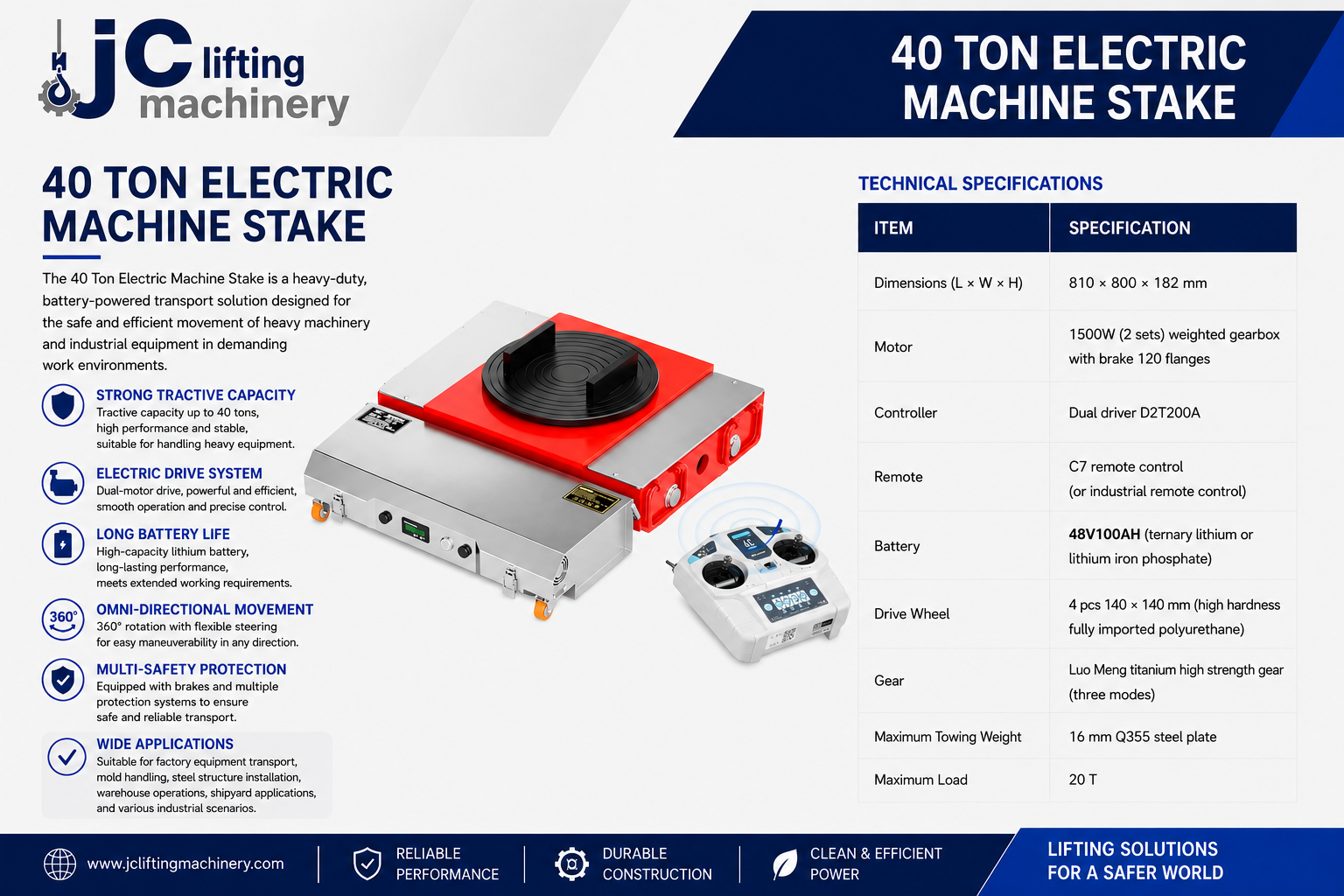

| Dimensions | Length 810 (mm); Width 810(mm); Height 182(mm) |
| Motor | 1500w (2 sets) weighted gearbox with brake 120 flanges |
| Controller | Dual driver D2T200A |
| Remote | C6/C7 remote control(or industrial remote control) |
| Battery | 48V120AH (ternary lithium or lithium iron phosphate) |
| Working Current | 150A |
| Charging Current | 54.6 |
| Drive Wheel | 4 140*140 (high hardness fully imported polyurethane) |
| Gear | Luo Meng titanium high strength gear (three modes) |
| Plate | 16mm Q355 steel plate |
| Maximum Towing Weight | 40T |
| Maximum Load | 20T |
