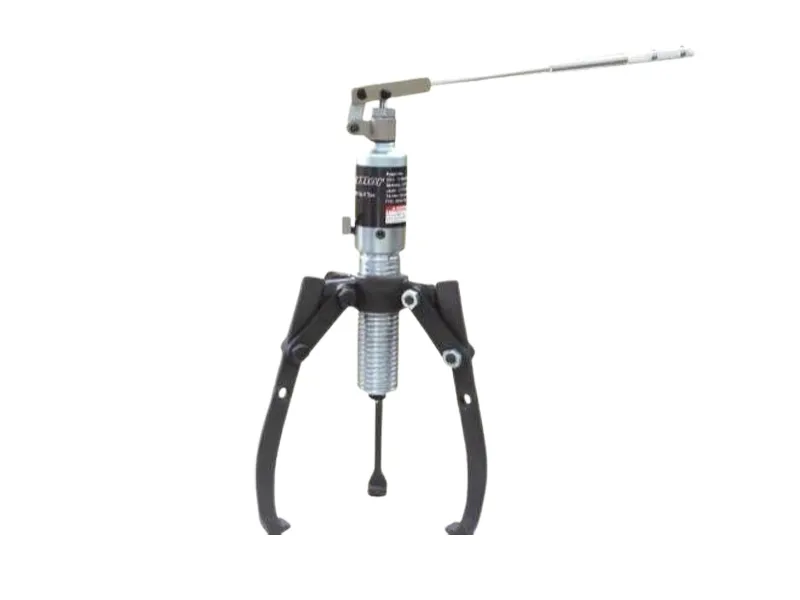

The four-segment adjustable joystick design allows users to adjust the torque according to their needs, thus achieving the goal of saving effort.
The 360°rotatable rocking seat design allows users to operate the puller in any direction.
Elastic ejector pin design, capable of accurately positioning the center(removable).
Operating force ranges from 4 tons to 30 tons, available for selection.
The high-output puller with a capacity of 20 tons or 30 tons features a patented two-stage lifting design. The first stage is a rapid liting that saves preparation time for the spindle push rod to contact the shaft center. When the spindle push rod comes into contact with the shaft center, the puller automatically transitions to the second stage-high-pressure output, which significantly reduces the time and number of joystick actuations, enabling quick completion of work disassembly.
According to usage needs, users can choose to use extension rods and extended claw hooks to meet different requirements for lifting height and pulling distance. The hydraulic system of the puller is equipped with a built-in safety valve to prevent damage to the puller.
The claw hook and claw base are forged from chrome-manganese alloy steel, providing users with the most reliable and durable choice.
The design of the anti-loosening claw hook screw can prevent the potential danger of the claw hook structure loosening due to user negligence.
Hot-forged claw hook screws, coupled with manganese phosphate electroplating surface treatment, ensure effective protection and durability.
Model | Capacity ton(kN) | Reach (Max.mm) | Spread (Max.mm) | Stroke (mm) | Pump Tip (mm) | Jaw Tip (mm) | Weight (kg) | ||||
H | E | F | G | A | B | C | |||||
UK-4 | 4 Ton | 185 | 225 | 60 | 42 | 22 | 84 | 11 | 6 | 22 | 4.5 |
UK-6 | 6 Ton | 220 | 330 | 70 | 45 | 23 | 94 | 13 | 10 | 22 | 5.5 |
UK-8 | 8 Ton | 230 | 350 | 85 | 50 | 25 | 122 | 11 | 10 | 25 | 6.5 |
UK-12 | 12 Ton | 270 | 375 | 85 | 60 | 28 | 118 | 14 | 10 | 29 | 8.0 |
UK-20 | 20 Ton | 360 | 520 | 111 | 80 | 40 | 160 | 20 | 27 | 33 | 22.0 |
UK-30 | 30 Ton | 360 | 550 | 111 | 98 | 50 | 155 | 20 | 27 | 38 | 32.0 |
