Forged claw assembly constructed from high-strength, hardened, and reinforced materials.
Claw assembly incorporates a high safety factor.
Precision-guided design ensures proper insertion.
Connect two claw jacks using a PV manual pump or four claw jacks using a PE electric pump to achieve double or quadruple load capacity.

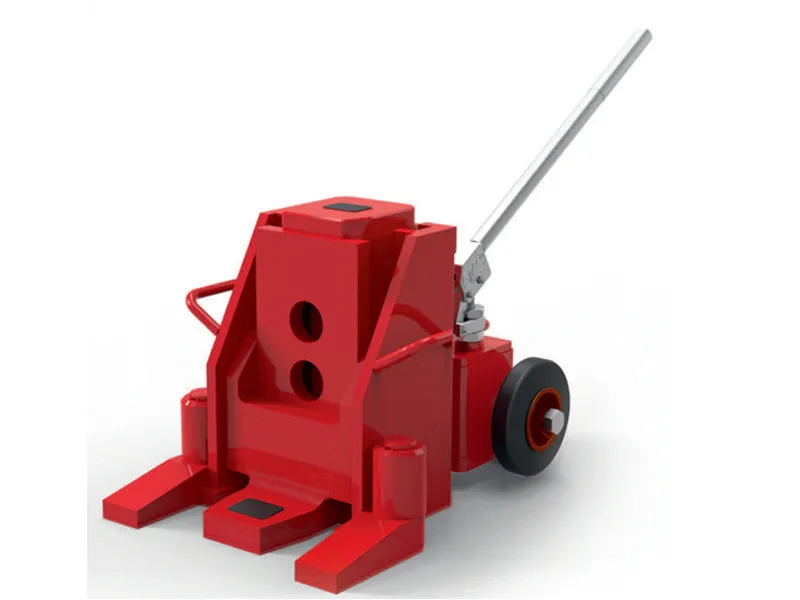

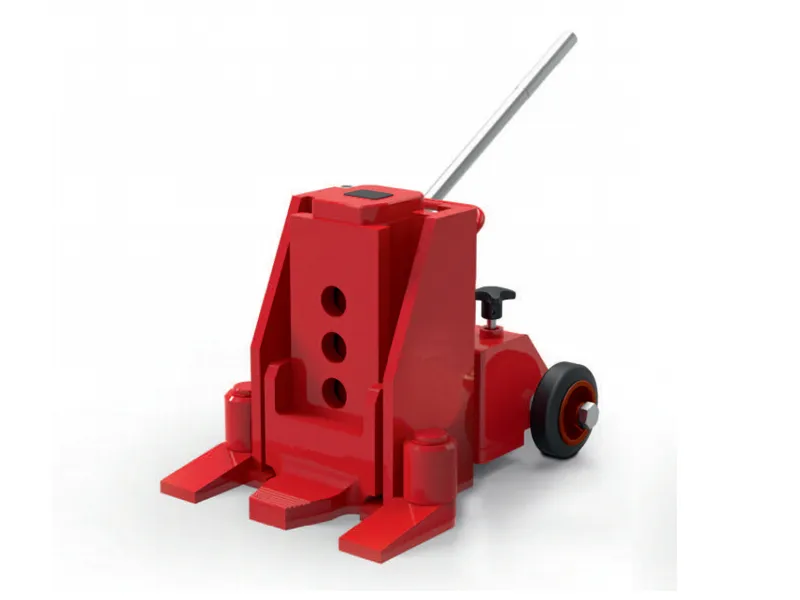

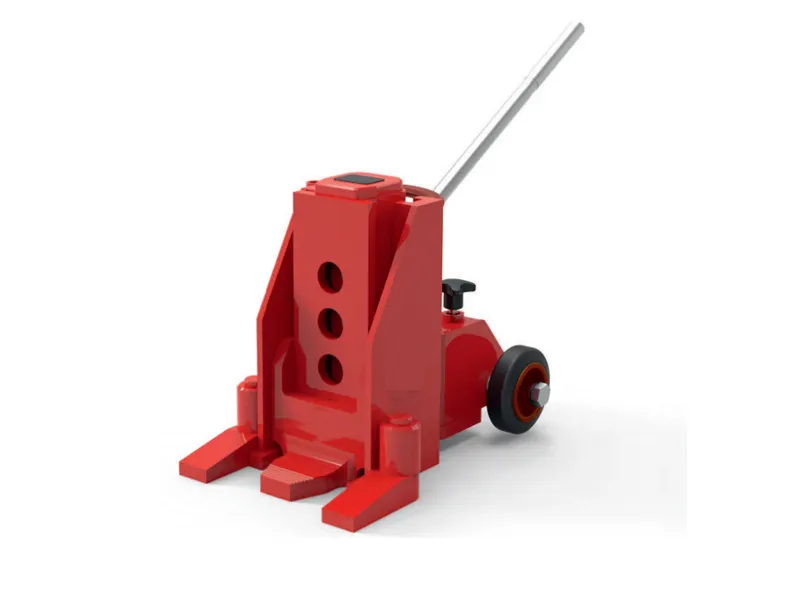

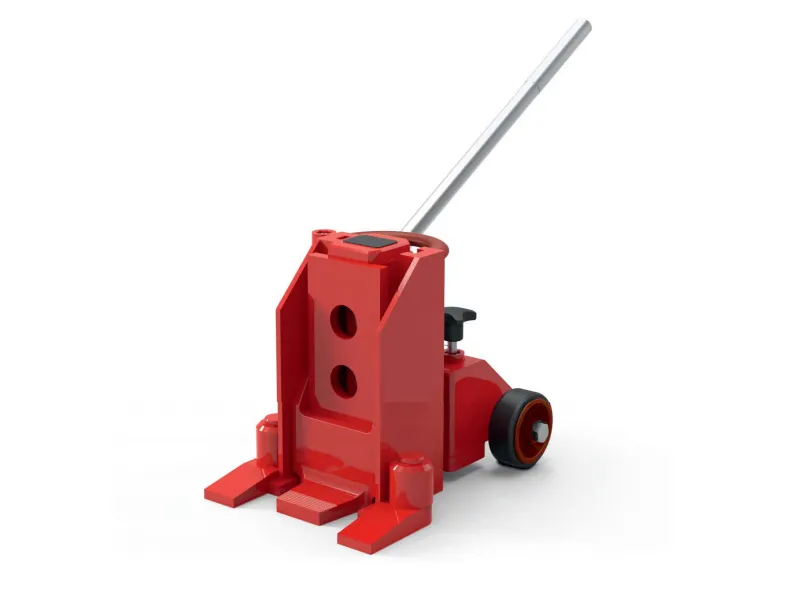

| Technical data | V5 | V10 | V15 | V20 |
| Item number | 10181 | 10182 | 10183 | 10184 |
| Full load capacity | 50 kN (5 t) | 100 kN (10 t) | 150 kN (15 t) | 200 kN (20 t) |
| Working pressure | 520 bar | 520 bar | 520 bar | 520 bar |
| Minimum loading height using | 15 mm | 20 mm | 25 mm | 30 mm |
| Safety toe Lifting height | 140 mm | 160 mm | 160 mm | 160 mm |
| Adjustable range of safety toe | 3 x | 4 x | 4x | 3x |
| Loading height using top plate | 252 mm | 310 mm | 318 mm | 325 mm |
| Overall dimensions L x W x H | 285 x 235 x 252 mm | 357 x 260 x 310 mm | 390 x 320 x 318 mm | 425 x 326 x 325 mm |
| Tare weight incl. oil ill | 21 kg | 32 kg | 53 kg | 72 kg |
