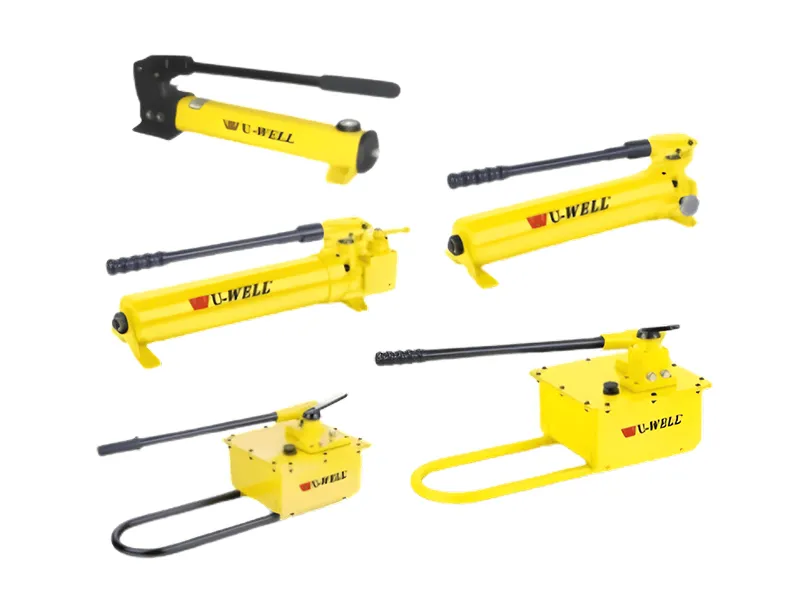

Two-speed operation, can reduce the intensity of the operator.
P-84 and P-464 are equipped with 4-way valve, they can be used to operate the double action cylinders.
Other models are equipped with external unloading valve, they can be used to operate the single action cylinders.
The inernal safety valve is equipped to protect the pump while overloading.
The capacity of oil tank is big enough to match a wide range of cylinders and tools.
Two-speed is to be used in the situation of hydraulic pommel should reach the heavy object quickly or need a great quantity fuel. For example, driving two or more hydraulic cylinders is recommended to use it.
Pump Type | Usable Oil Capacity (cm³) | Model Number | Pressure Rating** (bar) | Oil Displacement per Stroke (cm³) | Max. Handle | ||
1st stage | 2nd stage | 1st stage | 2nd stage | Effort (kg) | |||
Double speed | 655 | P-392 | 25 | 700 | 15 | 2.62 | 50 |
2200 | P-80 | 25 | 700 | 16.22 | 2.46 | 47 | |
2200 | P-84 | 25 | 700 | 16.22 | 2.46 | 47 | |
7423 | P-462 | 14 | 700 | 126.20 | 4.75 | 49 | |
7423 | P-464 | 14 | 700 | 126.20 | 4.75 | 49 | |
Piston Stroke (mm) | (mm)Dimensions | Weight (kg) | Model Number | |||||||||||||||
A | B | C | D | E | F | H | J | L | M | N | P | Q | R | S | T | |||
20.6 | 393 | 520 | 33 | 38 | 32 | 一 | 464 | 30 | 119 | 65 | 133 | 一 | 一 | 一 | 一 | 一 | 5.9 | P-392 |
25.4 | 425 | 539 | 25 | 44 | 54 | 一 | 527 | 29 | 174 | 19 | 146 | 121 | 一 | 21 | 8 | 67 | 10.9 | P-80 |
25.4 | 425 | 510 | 25 | 44 | 一 | 64 | 527 | 29 | 174 | 19 | 146 | 121 | 38 | 43 | 8 | 67 | 13.2 | P-84 |
38.1 | 210 | 308 | 163 | 320 | 195 | 一 | 671 | 25 | 270 | 175 | 650 | 92 | 一 | 一 | 80 | 一 | 27 | P-462 |
38.1 | 210 | 308 | 163 | 320 | 195 | 一 | 671 | 25 | 270 | 175 | 650 | 92 | 89 | 68 | 80 | 一 | 27.7 | P-464 |
