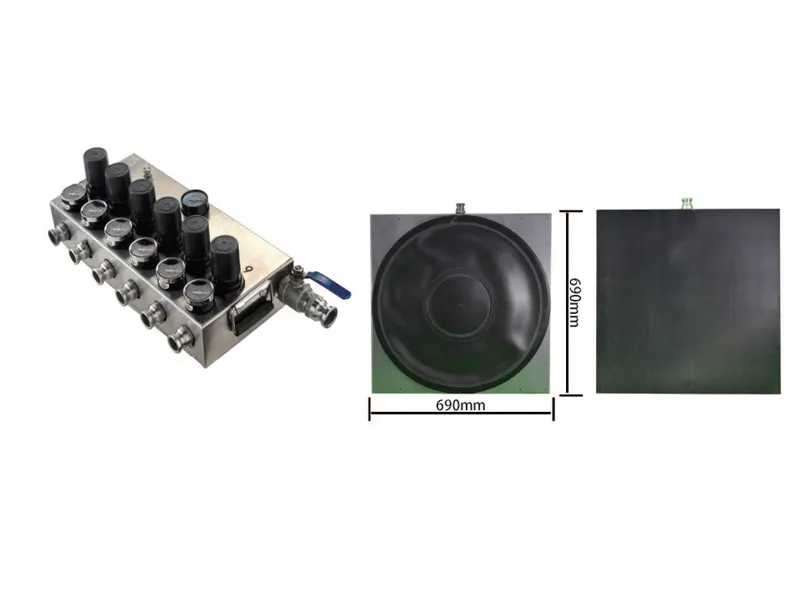

Air cushion module: 690x690x60mm
Working/limit stroke: 10-65/70mm
Maximum load per unit: 12T

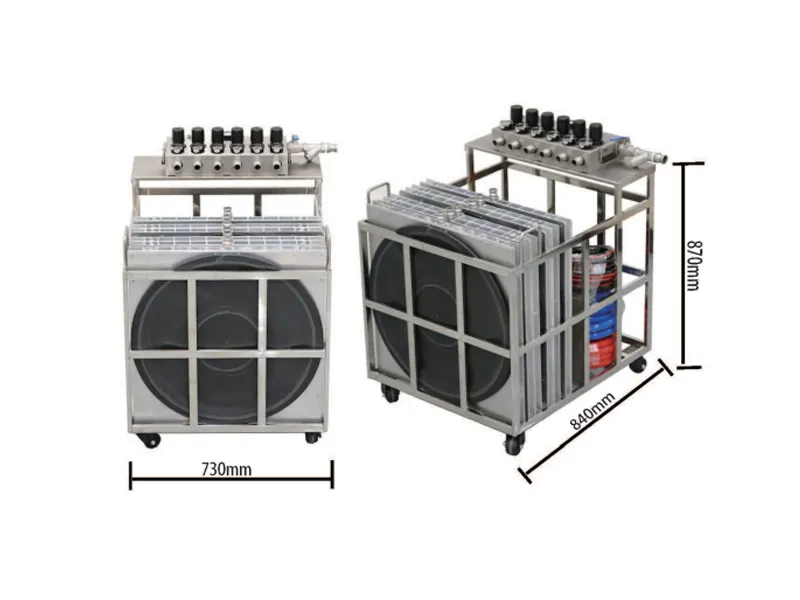

Cart dimensions: 840x730x870mm (height)
*Airbag pressure resistance at maximum load ≤ 0.45MPa
| Model | Air cushion quantity | Maximum load | Bronchi | Controller | Storage trolley | Air consumption | Self-respect |
| MY-AFC48 | 4 pieces | 48 tons | Two of each of 8 meters and 10 meters | 4 branches 1 | 1 unit | ≥1500L/min | 150kg |
| MY-AFC72 | 6 pieces | 72 tons | Two each of 8 meters, 10 meters, and 12 meters. | 6 branches 1 | 1 unit | ≥2000L/min | 190kg |
