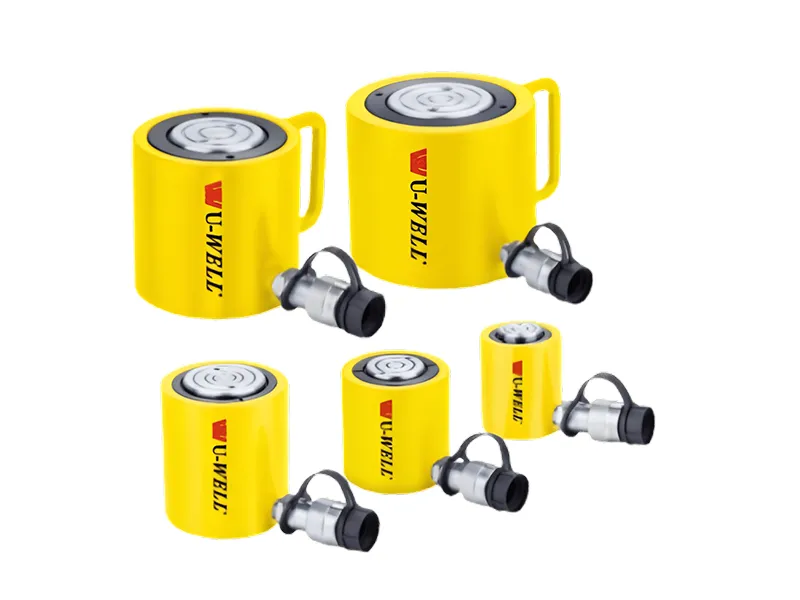

Lightweight, low profile design for use in confined spaces.
Single-acting, spring return.
Baked enamel finish for increased corrosion resistance.
Plunger wiper reduces contamination, extending cylinder life.
Grooved plunger end with threaded holes for mounting tiltsaddles.
Integral handle on RCS-1002 for easy carrying.
Steel plunger surface is chromium-plating.
Cyl. Capa- city ton (kN) | Stroke Model Number (mm) | Cyl. Effect. Area (cm²) | Oil Cap (cm³) |
10(101) | 38 RCS-101* | 14.5 | 55 |
20 (201) | 45 RCS-201* | 28.7 | 129 |
30(295) | 62 RCS-302* | 42.1 | 261 |
45(435) | 60 RCS-502* | 62.1 | 373 |
90(887) | 57 RCS-1002* | 126.7 | 722 |
Optional Bolt-On Tilt Saddle Dimensions(mm) | |||||
For Cylinder Model | Model Number | A | B | C" |
|
RCS-101 | CAT-11 | 35 | 11 | 21 | |
RCS-201,-302,-502 | CAT-51 | 50 | 15 | 29 | |
RCS-1002 | CAT-101 | 17 | 35 | ||
Collapsed Height A (mm) | Extended Height B (mm) | Outside Diameter D (mm) | Cylinder Bore Dia. E (mm) | Plunger Dia. F (mm) | Base to Advance Port H (mm) | Plunger Protrusion from Base K (mm) | Plunger to Base (mm) | Plunger to Mtg Hole M (mm) | Thread O (mm) | Thread Depth P (mm) | Bolt Circle U (mm) | Weight (kg) | Model Number |
88 | 126 | 69 | 42.9 | 38.1 | 17 | 5 | - | - | M4 | 8 | 26 | 4.1 | RCS-101* |
98 | 143 | 92 | 60.5 | 50.8 | 17 | 3 | - | - | M5 | 8 | 40 | 5.0 | RCS-201* |
117 | 179 | 101 | 73.2 | 66.5 | 19 | 3 | - | - | M5 | 8 | 40 | 6.8 | RCS-302* |
122 | 182 | 124 | 88.9 | 69.8 | 23 | 2 | - | - | M5 | 8 | 40 | 10.9 | RCS-502* |
141 | 198 | 165 | 127.0 | 92.2 | 31 | 1 | - | - | M8 | 10 | 55 | 22.7 | RCS-1002* |
