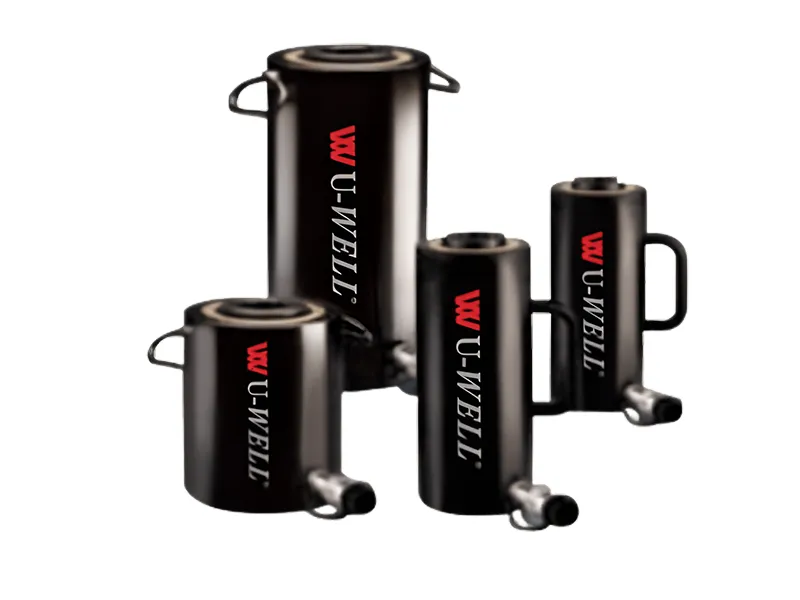

Hollow plunger design allows for both pull and push forces.
Composite bearings increase cylinder life and sideload resistance.
Hard-Coat finish on all surfaces resists damage and extends cylinder life.
Floating center tube increases seal and product life.
Handles standard on all models.
Steel base plate and saddle for protection against load-induced damage.
Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity.
High strength return spring for rapid cylinder retraction.
@700 bar Cylinder Capacity ton(kN) | Stroke (mm) | Model Number | Cylinder Effective Area (cm²) |
20(229) | 50 | RACH-202 | 32.7 |
100 | RACH-204 | 32,7 | |
150 | RACH-206 | 32.7 | |
200 | RACH-208 | 32.7 | |
250 | RACH-2010 | 32.7 | |
30(358) | 50 | RACH-302 | 51.1 |
100 | RACH-304 | 51.1 | |
150 | RACH-306 | 51.1 | |
200 | RACH-308 | 51.1 | |
250 | RACH-3010 | 51.1 | |
60(596) | 50 | RACH-602 | 84.7 |
100 | RACH-604 | 84.7 | |
150 | RACH-606 | 84.7 | |
200 | RACH-608 | 84.7 | |
250 | RACH-6010 | 84.7 | |
100(1157) | 50 | RACH-1002 | 164.6 |
100 | RACH-1004 | 164.6 | |
150 | RACH-1006 | 164.6 | |
200 | RACH-1008 | 164.6 | |
250 | RACH-10010 | 164.6 | |
150(1588) | 50 | RACH-1502 | 225.8 |
100 | RACH-1504 | 225.8 | |
150 | RACH-1506 | 225.8 | |
200 | RACH-1508 | 225.8 | |
250 | RACH-15010 | 225.8 |
Steel Base Plate Mounting Holes | |||
Cylinder Model/Capacity ton | Bolt Circle U (mm) | Thread V (mm) | Thread Depth” Z (mm) |
RACH-20 | 80 | M6 | 12 |
RACH-30 | 110 | M6 | 12 |
RACH-60 | 160 | M6 | 12 |
RACH-100 | 220 | M10 | 12 |
RACH-150 | 245 | M10 | 12 |
Including Base Plate Height of 6mm
Oil Capacity (cm²) | Height (mm) | Extended Height B (mm) | Outside Diameter D (mm) | Cylinder Bore Diameter (mm) | Plunger Diameter F (mm) | Bottom to Advance Port H (mm) | Saddle Diameter (mm) | Saddle Protrusion from Plunger K (mm) | Center Hole Diameter Y (mm) | Weight (kg) | Model Number* |
164 | 188 | 238 | 100 | 75 | 55 | 29 | 55 | 10 | 27 | 5.2 | RACH-202 |
327 | 251 | 351 | 100 | 75 | 55 | 29 | 55 | 10 | 27 | 6.1 | RACH-204 |
491 | 315 | 465 | 100 | 75 | 55 | 29 | 55 | 10 | 27 | 7.1 | RACH-206 |
654 | 378 | 578 | 100 | 75 | 55 | 29 | 55 | 10 | 27 | 8.0 | RACH-208 |
818 | 442 | 692 | 100 | 75 | 55 | 29 | 55 | 10 | 27 | 9.0 | RACH-2010 |
256 | 208 | 258 | 130 | 95 | 70 | 29 | 70 | 10 | 34 | 8.0 | RACH-302 |
511 | 267 | 367 | 130 | 95 | 70 | 29 | 70 | 10 | 34 | 9.5 | RACH-304 |
766 | 333 | 483 | 130 | 95 | 70 | 29 | 70 | 10 | 34 | 11.2 | RACH-306 |
1022 | 395 | 595 | 130 | 95 | 70 | 29 | 70 | 10 | 34 | 12.9 | RACH-308 |
1277 | 458 | 708 | 130 | 95 | 70 | 29 | 70 | 10 | 34 | 14.5 | RACH-3010 |
423 | 251 | 301 | 180 | 130 | 100 | 61 | 100 | 12 | 54 | 16,2 | RACH-602 |
847 | 315 | 415 | 180 | 130 | 100 | 61 | 100 | 12 | 54 | 19.5 | RACH-604 |
1270 | 380 | 530 | 180 | 130 | 100 | 61 | 100 | 12 | 54 | 25.6 | RACH-606 |
1694 | 445 | 645 | 180 | 130 | 100 | 61 | 100 | 12 | 54 | 26.0 | RACH-608 |
2117 | 510 | 760 | 180 | 130 | 100 | 61 | 100 | 12 | 54 | 29.6 | RACH-6010 |
823 | 258 | 308 | 250 | 185 | 145 | 61 | 145 | 14 | 79 | 33.8 | RACH-1002 |
1646 | 325 | 425 | 250 | 185 | 145 | 61 | 145 | 14 | 79 | 39.8 | RACH-1004 |
2487 | 391 | 541 | 250 | 185 | 145 | 61 | 145 | 14 | 79 | 46.2 | RACH-1006 |
3291 | 459 | 659 | 250 | 185 | 145 | 61 | 145 | 14 | 79 | 52.2 | RACH-1008 |
4114 | 527 | 777 | 250 | 185 | 145 | 61 | 145 | 14 | 79 | 58.8 | RACH-10010 |
1129 | 280 | 330 | 275 | 205 | 150 | 61 | 145 | 14 | 79 | 48.9 | RACH-1502 |
2258 | 360 | 460 | 275 | 205 | 150 | 61 | 145 | 14 | 79 | 55.7 | RACH-1504 |
3387 | 430 | 580 | 275 | 205 | 150 | 61 | 145 | 14 | 79 | 63.0 | RACH-1506 |
4517 | 500 | 700 | 275 | 205 | 150 | 61 | 145 | 14 | 79 | 70.1 | RACH-1508 |
5646 | 570 | 820 | 275 | 205 | 150 | 61 | 145 | 14 | 79 | 77.2 | RACH-15010 |
