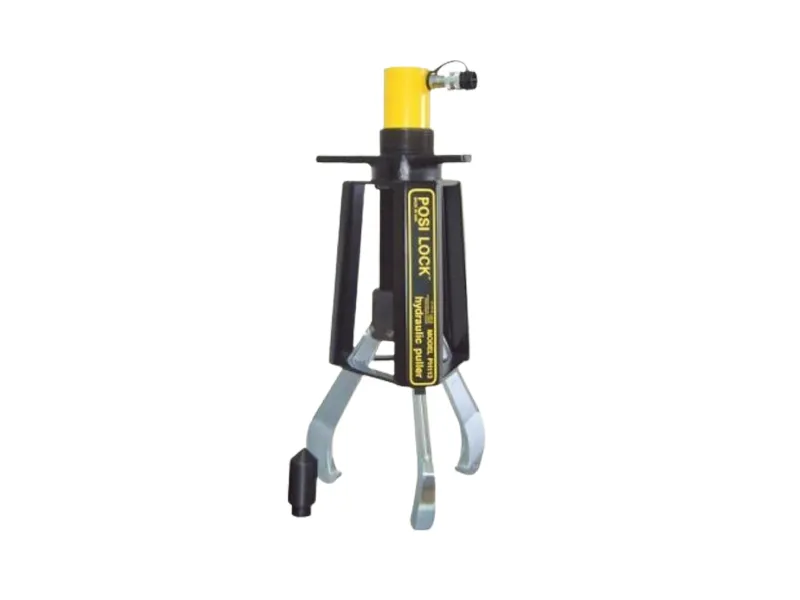

The unique patented design of the safety cage Cage® can firmly lock the workpiece to prevent slipping.
It automatically aligns to prevent eccentric loading, ensuring that the screw rod is always at the center of force, thereby extending its service life.
The puller can be quickly controlled through the T-shaped handle and the safety cage Cage®, making operation more convenient.
Forged pliers with special shapes are more conducive to working in confined spaces.
The screw rod is directly inserted into the inner hole of the cylinder plunger, ensuring simple installation, robustness, and durability.
A robust hydraulic system can easily disassemble large workpieces.
Model | Claw count | Capacity ton(kN) | Spread (Max.mm) | Stroke (mm) | Cylinder model | Weight (kg) |
PHB-108 | 3 | 10 | 19-304 | 203 | RC-106 | 16 |
PHB-110 | 3 | 15 | 25-381 | 245 | RC-1510 | 30 |
PHB-113 | 3 | 25 | 63-457 | 304 | RC-2514 | 62 |
PHB-116 | 3 | 50 | 76-635 | 355 | RC-5013 | 108 |
