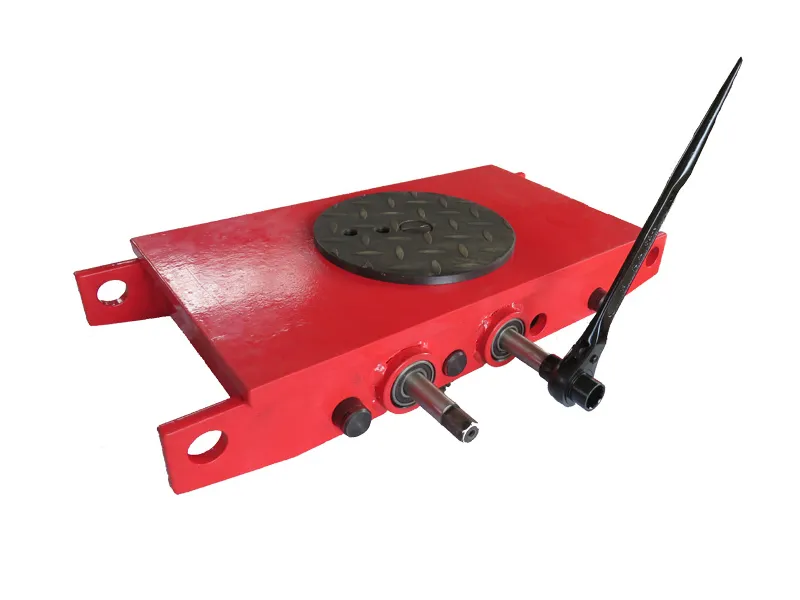

The CDYK Hand-Cranked Transport Tank is a labor-saving handling tool requiring no external traction.
A single CDYK Hand-Cranked Transport Tank can handle loads from 6T to 18T, with a minimum of four units required for simultaneous operation.
The CDYK hand-cranked transport dolly features a ratchet mechanism. Turning the handle engages gears to achieve forward movement.
Powered by manual cranking, the CDYK dolly advances at a relatively slow pace but offers significantly enhanced stability during operation. Its anti-reverse mechanism ensures unidirectional movement, preventing dangerous backward shifts.
| Technical data | CDYK6 | CDYK8 | CDYK12 | CDYK18 |
| Height/no. of wheels (80x70 mm) | 110 mm/4 | 110 mm/6 | 110 mm/8 | 110 mm/12 |
| Load capacity | 30 kN (3 t) | 80 kN (8 t) | 120 kN (12 t) | 180 kN (18 t) |
| Tare weight in kg | 15 kg | 12 kg | 30 kg | 41 kg |
