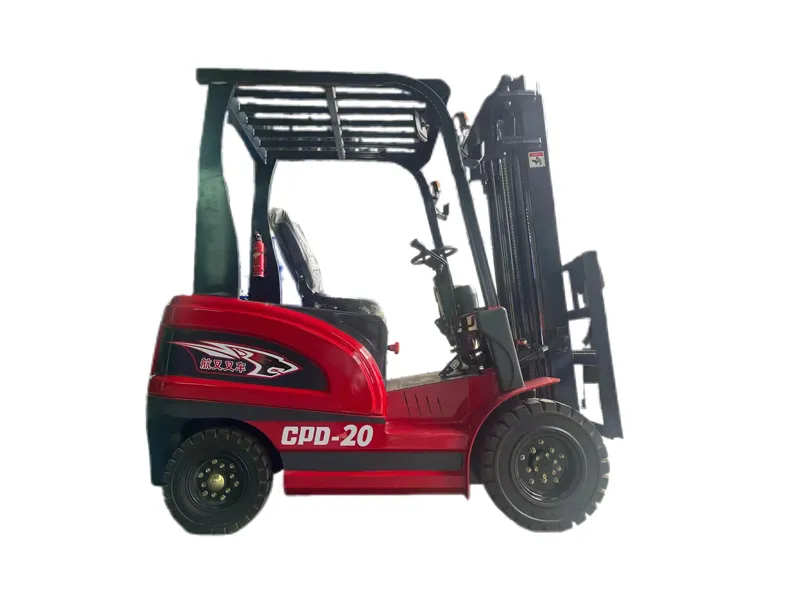

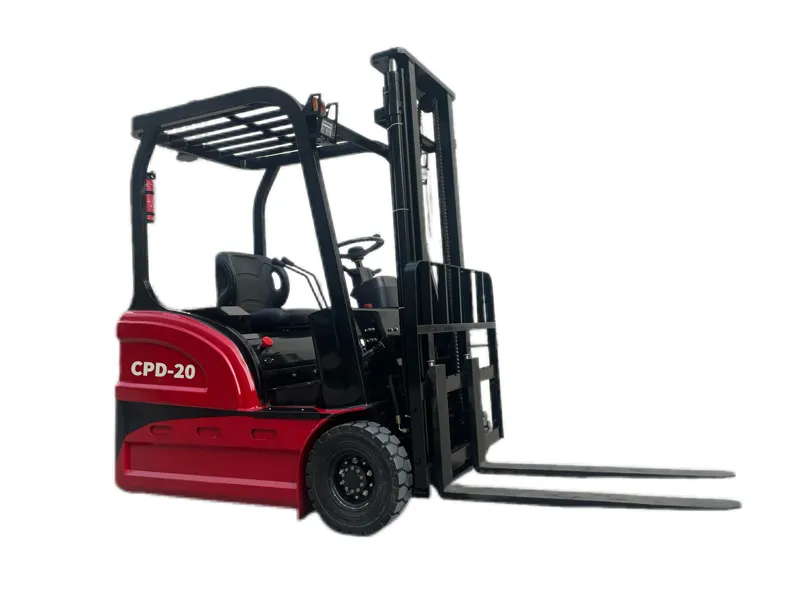

| Item | Unit | Design Value | ||
| Rated Lifting Capacity | kg | 2000 | ||
| Total length | No forks | mm | 2340 | |
| Forklift | mm | 3450 | ||
| Full width | Wheel width | mm | 1150 | |
| Frame width | mm | 1150 | ||
| Overall Height | Non-Lifting Mast Height | mm | 2150 | |
| Guardrail Height | mm | 2200 | ||
| Maximum Working Height | mm | 4050 | ||
| Wheelbase | mm | 1510 | ||
| Front overhang | mm | 480 | ||
| Front track width | mm | 960 | ||
| Rear track width | mm | 960 | ||
| Minimum ground clearance | Lower end of gantry (empty/full) | mm | 80 | |
| Frame Center (Empty/Full) | mm | 130 | ||
| Maximum Lifting Height (Unloaded) | mm | 3000 | ||
| Free Lifting Height | mm | 45 | ||
| Mast Tilt Angle (Front/Rear) | (°) | 6/12 | ||
| Overall Machine Weight (Standard Unloaded) | kg | 2700 | ||
| Maximum Lifting Speed (Unloaded) | mm/s | 280 | ||
| Maximum Lifting Speed (Fully Loaded) | mm/s | 180 | ||
| Minimum Turning Radius | mm | 2300 | ||
| Maximum Travel Speed (Unloaded) | km/h | 10.5 | ||
| Maximum Travel Speed (Fully Loaded) | km/h | 10 | ||
| Maximum Gradeability (Fully Loaded) | % | 15 | ||
| Load Center Distance | mm | 500 | ||
| Front Wheel Specifications | / | 650-10 | ||
| Rear Wheel Specifications | / | 500-8 | ||
| Lifting Motor Power | KW | 3 | ||
| Drive Motor Power | KW | 4 | ||
| Steering System | / | Hydraulic Power Steering | ||
| Charger Input Voltage | V | 220 | ||
| Charging Time | h | 6-8 | ||
| Battery Capacity | ah | 70 | ||
| Rated Voltage | V | 60 | ||
