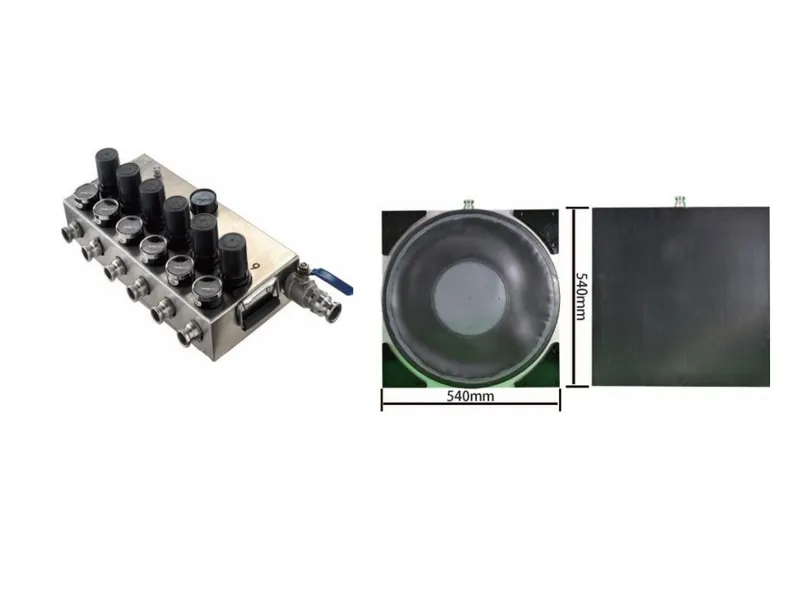

Air cushion module: 540x540x60mm
Working/limit stroke: 10-50/55mm
Maximum load per unit: 8T

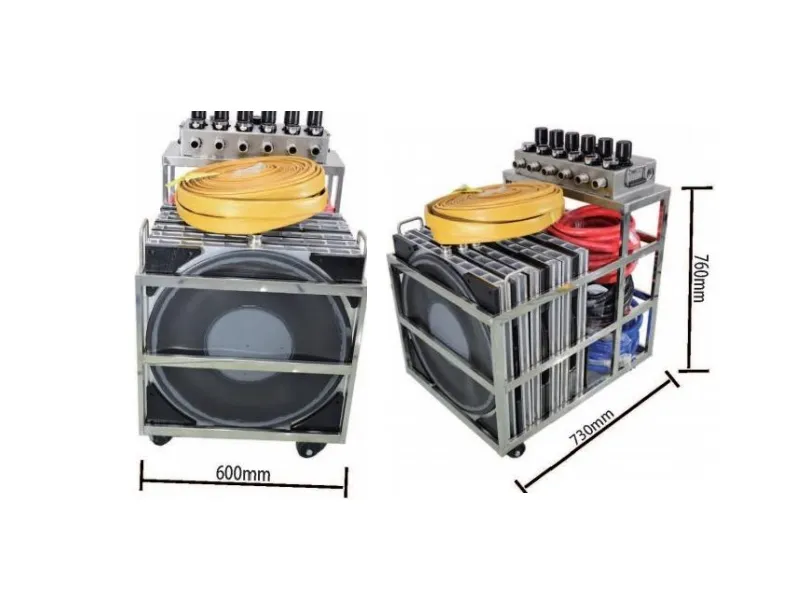

Cart dimensions: 730x600x760mm (height)
*Airbag pressure resistance at maximum load ≤ 0.45MPa
| Model | Air cushion quantity | Maximum load | Bronchi | Controller | Storage trolley | Air consumption | Self-respect |
| MY-AFC32 | 4 pieces | 32 tons | Two each of 6 meters and 8 meters | 4 branches 1 | 1 unit | ≥1000L/min | 130kg |
| MY-AFC48 | 6 pieces | 48 tons | Two each of 6 meters, 8 meters, and 10 meters | 6 branches 1 | 1 unit | ≥1500L/min | 160kg |
