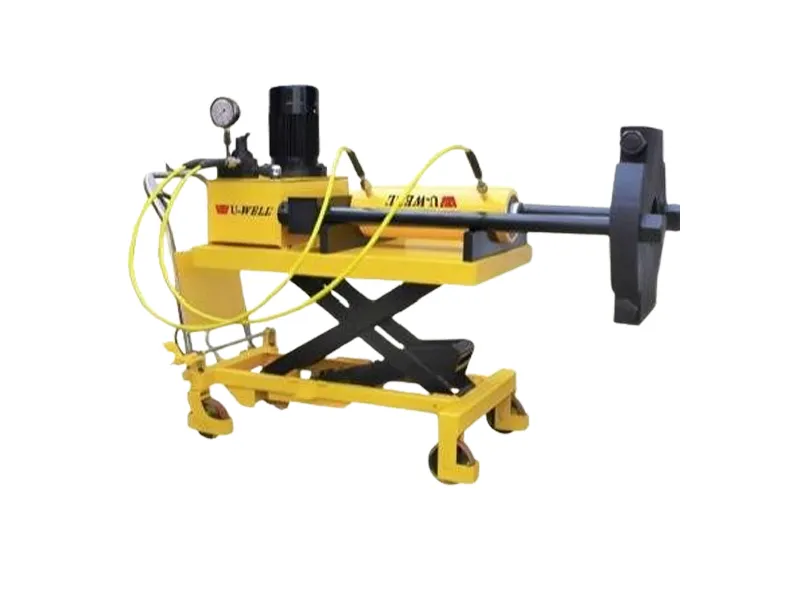

It is suitable for dismantling work on coal mills, turbine cams, induced draft fans, motor couplings, bearings, gears, etc. in thermal power plants.
The unique dual-speed pump configuration allows the cylinder to be operated for positioning the wheel disc at low pressure, and for lifting or retracting the workpiece without opening the claws at high pressure, ensuring safety and reliability.
Made of high-strength alloy steel, with a large-tonnage cylinder, it delivers high output.
Vehicle-mounted design, easy to move.
Model | Reach Range (mm) | Spread Range (mm) | Stroke (mm) | Overall Length (mm) | Power Source | Weight (kg) |
14CMP80 | 80 | 280 | 130 | 370 | 70 | 550 |
14CMP100 | 100 | 350 | 170 | 420 | 70 | 780 |
14CMP150 | 150 | 400 | 210 | 450 | 70 | 1080 |
14CMP200 | 200 | 500 | 450 | 650 | 70 | 1250 |

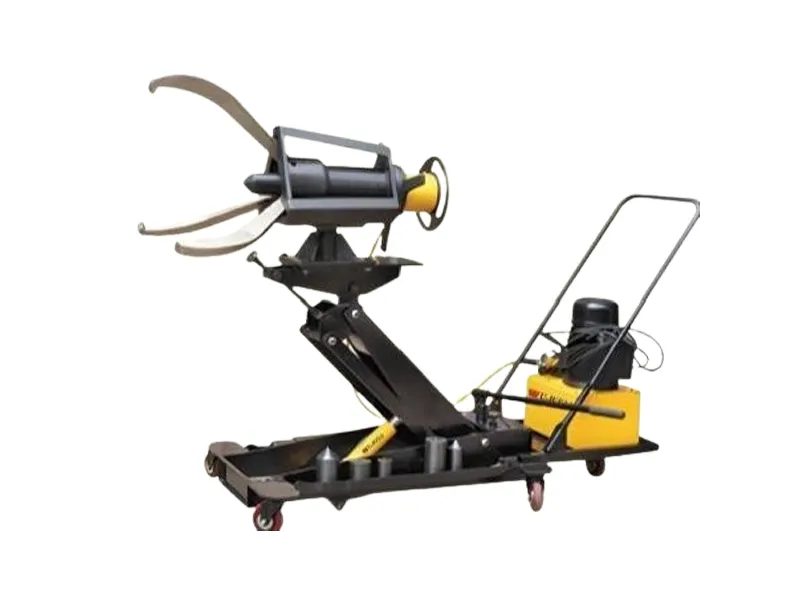

Model | Claw count | (tons) | Spread (mm) | Stroke (mm) | Raising H. (mm) | Weight (kg) |
PH-123T | 3/2 | 100 | 191-1778 | 304-1219 | 673-1690 | 908 |
PH-100T | 3 | 100 | 191-1778 | 304-1219 | 673-1690 | 855 |
PH-102T | 2 | 100 | 191-1778 | 304-1219 | 673-1690 | 772 |
PH-200T | 4 | 200 | 165-1778 | 304-1219 | 673-1690 | 1882 |

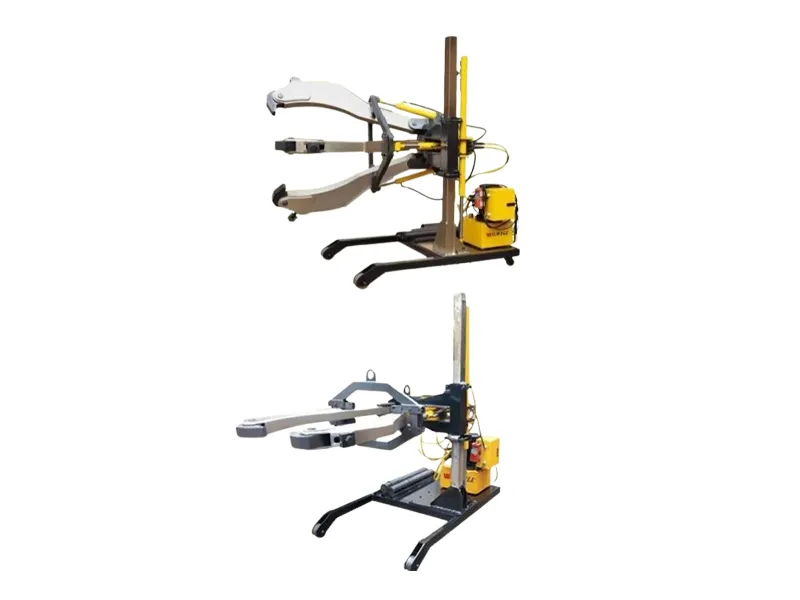

| Model | Model | Spread(mm) | Reach(mm) | Height Range(mm) | Weight(kg) |
| PH113 | PH113 | 63-457 | 304 | 480-1420 | 138 |
| PH116 | PH116 | 76-635 | 355 | 480-1420 | 138 |
