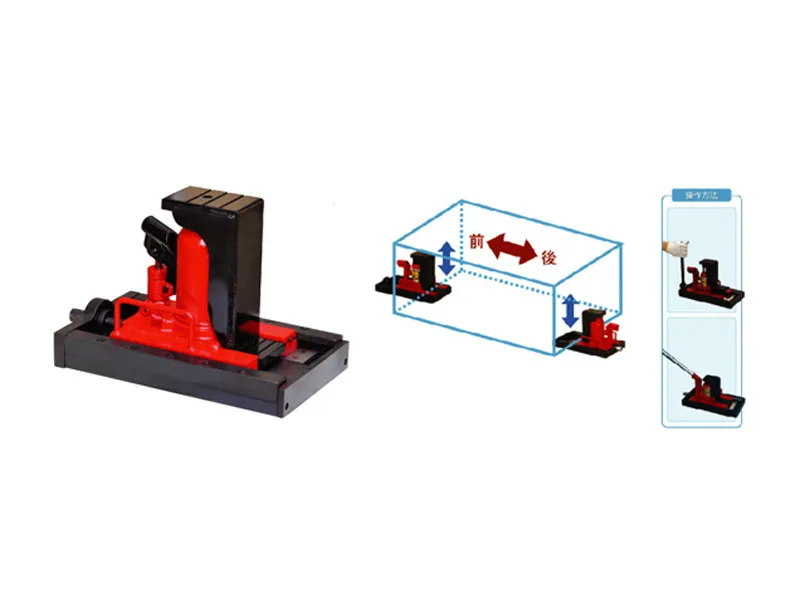

The sliding table claw jack, paired with a movable sliding table, enables horizontal adjustment and can be easily operated using a ratchet tool (standard accessory).
It allows 100mm of horizontal movement, suitable for fine adjustments in the front-to-back direction.
The mobile claw jack features a guide rail mechanism, ensuring the sliding table and jack are securely integrated without wobbling.
To ensure stable installation, a minimum of two units must be used.
Primarily used for installation and fine adjustments of large machinery.
| Technical data | F-60TL | F-100TL | F-200TL |
| Full load capacity | 30 kN (3 t) | 50 kN (5 t) | 100 kN (10 t) |
| Toe Min height | 41 mm | 44 mm | 51 mm |
| Toe length | 80 mm | 75 mm | 80 mm |
| Lifting stroke | 62 mm | 63 mm | 51 mm |
| Slide width | 100 mm | 100 mm | 100 mm |
| Base length | 422 mm | 443 mm | 476 mm |
| Base width | 202 mm | 223 mm | 270 mm |
| Min height | 202 mm | 243 mm | 268 mm |
| Weight | 25 kg | 32 kg | 50 kg |
