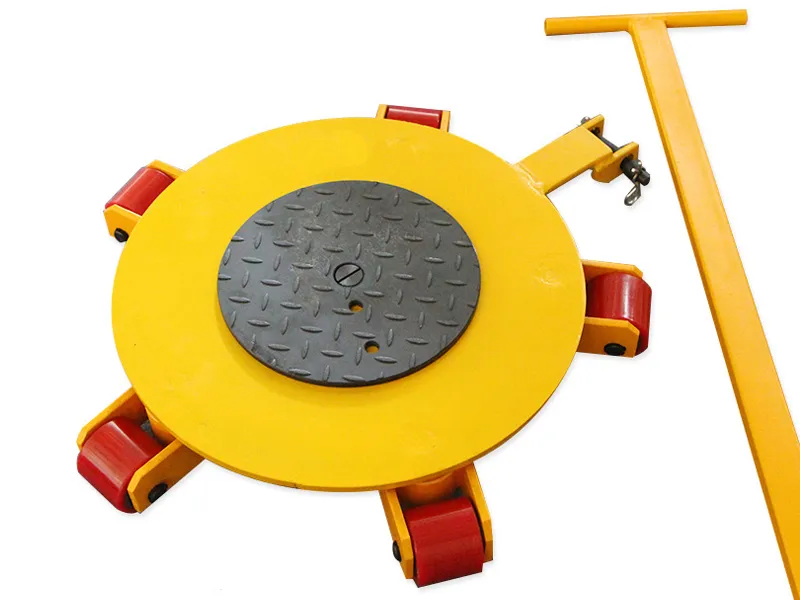

CRW Swivel Transport Trolley features 360° full rotation on each wheel for exceptional maneuverability.
CRW Swivel Transport Trolley has a single-unit load capacity of 2T to 4T; combining 3 or 4 units enables higher tonnage handling.
The CRW swivel dolly comes standard with PU rubber wheels, with nylon or alloy steel wheels available as options.
The CRW swivel dolly features a circular overall structure with a large disc diameter for an expansive load-bearing surface.
It is particularly suitable for moving heavy objects over medium to short distances, especially when used in conjunction with claw jacks and pry bars.
| Technical data | CRW2 | CRW3 | CRW4 |
| height/no. of wheels (80 x 70 mm) | 110mm/3 | 110 mm/4 | 110 mm/5 |
| Contact surface per cassette | Φ200 mm | Φ250 mm | Φ300 mm |
| steering angle | 360° | 360° | 360° |
| Overall dimensions | Φ348 mm | Φ413 mm | Φ483 mm |
| Tare weight in kg | 26 kg | 32 kg | 39 kg |
| Load capacity | 20 kN (2t) | 30kN (3t) | 40 kN (4t) |
