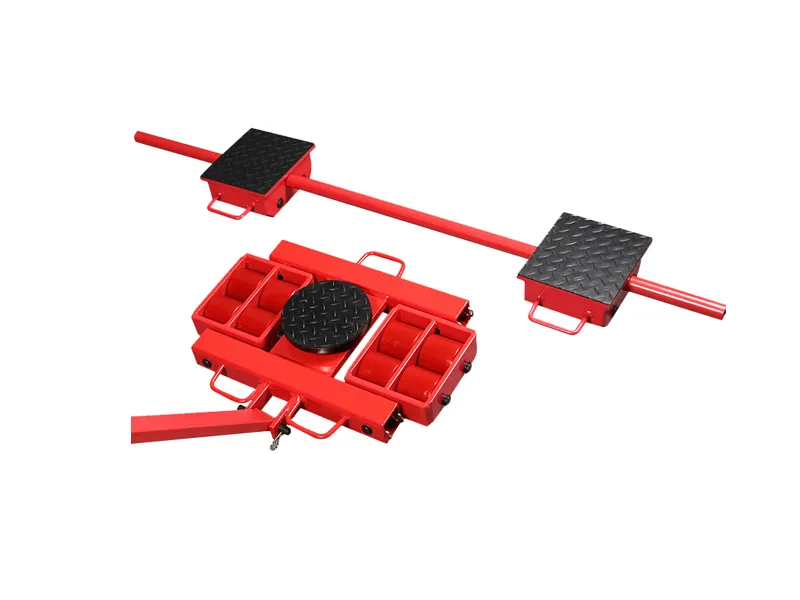

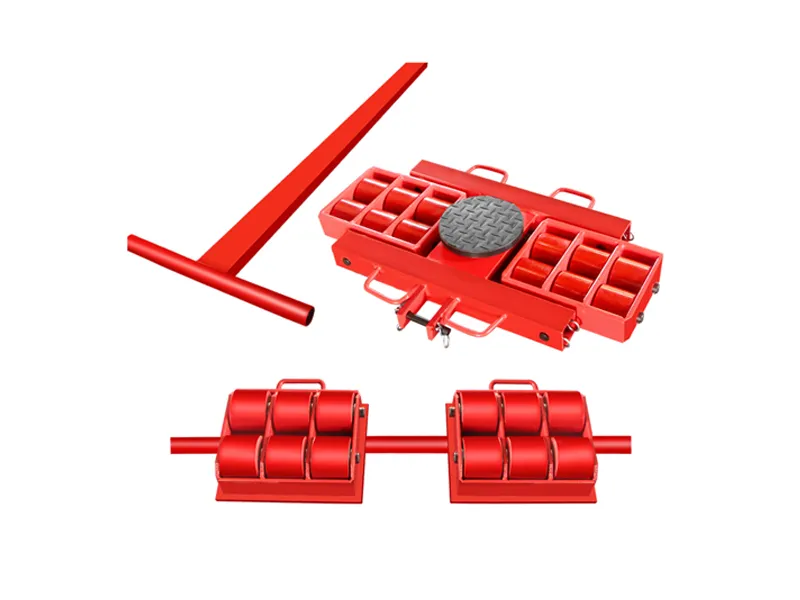

AB Series Modular Transport Tank.
Standard three-unit modular transport tank configuration.
Load capacity: 12T to 36T.
Reinforced components for high-frequency, sustained operation.
Standard rubber wheels; optional nylon or alloy steel wheels.
| Technical data | B3 | A6 | B6 | A12 |
| height/no. of wheels (80 x 70 mm) | 110 mm/2 | 110 mm/4 | 110 mm/4 | 110 mm/8 |
| Contact surface per cassette | 130 x 130 mm | ø150 | 220 x 195 mm | ø160 |
| Connecting rod, adjustable | 300 - 1000mm | 640 - 1000 mm | ||
| Swivel plate Ø170 mm, steering angle | ±90° | ±90° | ||
| Steeringrod | 1000 mm | 1000 mm | ||
| Overall dimensions | 130 x 130 x 110 mm | 230 x 225 x 110 mm | 260 x 210 x 110 mm | 540 x 480 x 110 mm |
| Tare weight in kg | 7 kg | 13 kg | 12 kg | 41 kg |
| Load capacity | 30kN(3t) | 60 kN (6t) | 60 kN (6t) | 120 kN (12t) |
