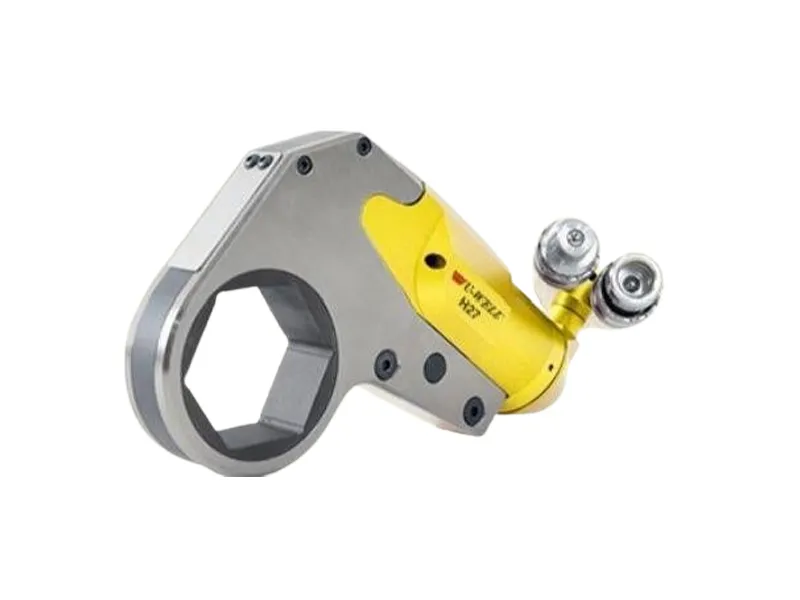

H series hollow hydraulic torque wrench is specifically designed for confined spaces. It can accommodate different bolt conditions by equipping a single power head with multiple working heads of various specifications. The working heads can be easily replaced without any tool assistance, and the simple replacement process can save a significant amount of time during work, thereby enhancing work efficiency. Made of aluminum-titanium alloy, an aviation material, it boasts a lightweight body that can withstand ultra-high-strength work. Jucai provides global after-sales service, possesses complete supply capabilities, and has obtained both German TUV and EU CE certifications.
Selection table for H series hydraulic torque wrenches
Model | Torque | NutOpposite Edge | Weight | Structure Size (mm) | |||||
N.m | mm | kg | L | H1 | H2 | W1 | W2 | A | |
H27 | 262～2625 | 19～46 | 0.9 | 193 | 125 | 97 | 32 | 51 | 10～15 |
306~3068 | 50~60 | 0.9 | 193 | 136 | 108 | 32 | 51 | 10～11 | |
H54 | 537～5372 | 27～65 | 1.9 | 250 | 158 | 125 | 41 | 64 | 11～19 |
603～6037 | 70~80 | 1.9 | 250 | 169 | 136 | 41 | 64 | 11.7～12 | |
H120 | 1173～11737 | 50~80 | 3.4 | 310 | 189 | 157 | 52 | 78 | 15～15.2 |
1434～14349 | 85～105 | 3.4 | 310 | 214 | 182 | 52 | 78 | 16~22 | |
H210 | 2121～21216 | 70～100 | 5.9 | 378 | 223 | 191 | 64 | 97 | 8~21 |
2312～23124 | 105～115 | 5.9 | 378 | 236 | 204 | 64 | 97 | 18~24 | |
H430 | 4379～43792 | 80～117 | 16.1 | 405* | 291* | 242* | 83 | 93 | 25～31* |
4848～48481 | 120～175 | 16.1 | 425* | 309* | 260* | 83 | 93 | 25～34* | |
Selection table for standard working heads of H series hollow torque wrenches
H27 | H54 | H120 | H210 | H430 | |||||||||||||||
Model | R | A | Maximum Torque | Model | R | A | Maximum Torque | Model | R | A | Maximum Torque | Model | R | A | Maximum Torque | Model | R | A | Maximum Torque |
H27-19 | 26 | 15 | 2625 | H54-27 | 36 | 19 | 5372 | H120-50 | 44 | 15 | 11737 | H210-70 | 59 | 18 | 21216 | H430-80 | 72 | 25 | 43792 |
H27-22 | 26 | 14 | 2625 | H54-30 | 35 | 17 | 5372 | H120-55 | 47 | 15 | 11737 | H210-75 | 62 | 18 | 21216 | H430-85 | 78 | 28 | 43792 |
H27-27 | 26 | 11 | 2625 | H54-32 | 35 | 16 | 5372 | H120-60 | 50 | 15 | 11737 | H210-80 | 65 | 18 | 21216 | H430-90 | 78 | 25 | 43792 |
H27-30 | 28 | 11 | 2625 | H54-34 | 35 | 16 | 5372 | H120-65 | 53 | 15 | 11737 | H210-85 | 68 | 21 | 21216 | H430-95 | 84 | 28 | 43792 |
H27-32 | 28 | 10 | 2625 | H54-36 | 35 | 14 | 5372 | H120-70 | 56 | 15 | 11737 | H210-90 | 71 | 18 | 21216 | H430-100 | 84 | 26 | 43792 |
H27-34 | 31 | 11 | 2328 | H54-41 | 35 | 11 | 5372 | H120-75 | 58 | 15 | 11737 | H210-95 | 77 | 21 | 21216 | H430-105 | 90 | 28 | 43792 |
H27-36 | 31 | 10 | 2625 | H54-46 | 37 | 11 | 5858 | H120-80 | 61 | 15 | 11737 | H210-100 | 77 | 18 | 21216 | H430-110 | 94 | 31 | 43792 |
H27-41 | 34 | 10 | 2625 | H54-50 | 41 | 12 | 5372 | H120-85 | 66 | 16 | 14349 | H210-105 | 79 | 18 | 23124 | H430-115 | 94 | 28 | 43792 |
H27-46 | 37 | 10 | 2625 | H54-55 | 44 | 13 | 5372 | H120-90 | 69 | 16 | 14349 | H210-110 | 87 | 24 | 23124 | H430-117 | 94 | 28 | 43792 |
H27-50 | 40 | 11 | 3068 | H54-60 | 47 | 12 | 5372 | H120-95 | 71 | 16 | 14349 | H210-115 | 87 | 21 | 23124 | H430-120 | 101 | 31 | 48481 |
H27-55 | 42 | 11 | 3068 | H54-65 | 50 | 12 | 5372 | H120-100 | 77 | 22 | 14349 | H430-125 | 101 | 28 | 48481 | ||||
H27-60 | 50 | 10 | 3068 | H54-70 | 52 | 12 | 6037 | H120-105 | 77 | 19 | 14349 | H430-130 | 101 | 25 | 48481 | ||||
H54-75 | 56 | 12 | 6037 | H430-135 | 105 | 26 | 48481 | ||||||||||||
H54-80 | 58 | 12 | 6037 | H430-140 | 110 | 29 | 48481 | ||||||||||||
H430-145 | 110 | 26 | 48481 | ||||||||||||||||
H430-150 | 115 | 29 | 48481 | ||||||||||||||||
H430-155 | 115 | 26 | 48481 | ||||||||||||||||
H430-160 | 121 | 29 | 48481 | ||||||||||||||||
H430-165 | 121 | 26 | 48481 | ||||||||||||||||
H430-170 | 128 | 30 | 48481 | ||||||||||||||||
H430-175 | 128 | 27 | 48481 | ||||||||||||||||
Maximum working pressure is 70 MPa, with an accuracy of ±3%.
There are a total of 5models ranging from 262 to 48481 N.m.
360°×360°rotating oil pipe joint, with no space constraints for use.
Acting directly on the nut, the torque is more precise and reliable.
Ultra-thin design, suitable for use in narrow spaces.
Power head and the working head are easy to disassemble and assemble.
New toothed anti-loose connector ensures smooth oil flow.
