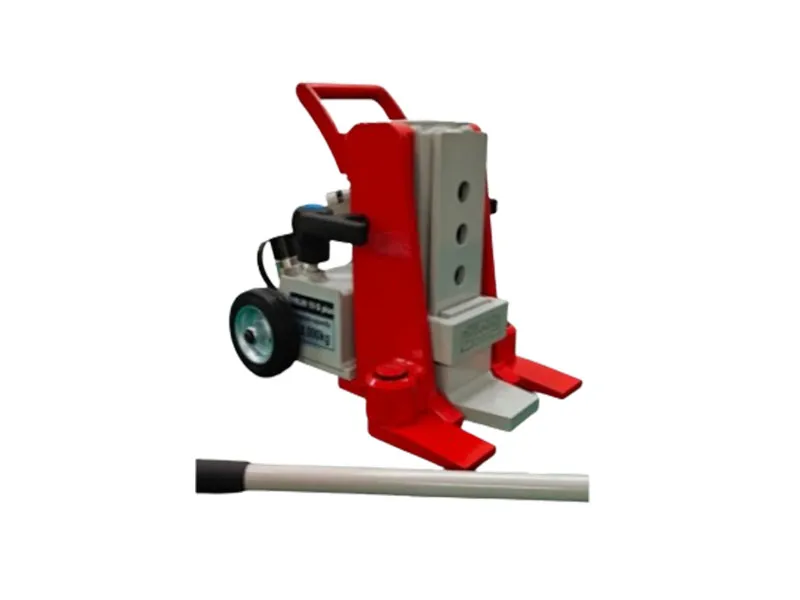

The claw part is detachable, and the lifting position can be adjusted as needed, making it suitable for lifting heavy loads of different heights.
The pump and jack are separated, ensuring safety and flexibility, and enabling remote operation.
The slide shoe design inside the guide rail prevents the piston from twisting inside the lifting cylinder. Compared with traditional jacks, this ensures better force distribution, less friction, and lower wear.
The toe part can rotate 180°, creating space for effective lifting.
The claw features a tilted design that allows rotation within a 6° range, providing smoother lifting.
Each unit is equipped with a detachable handle and lifting grip, with built-in rollers for easy relocation.
Made of alloy steel, featuring light weight and high load capacity, suitable for frequent position changes in hoisting and lifting operations.
Built-in safety relief valve prevents overloading.
Customization available for cleanroom applications and various special-purpose jacks.
| Parameter | Unit | HMJH-6G | HMJH-10G | HMJH-15G | HMJH-20G |
| Claw Load Capacity | Ton | 6 tons | 10 tons | 15 tons | 20 tons |
| Minimum Claw Lifting Height | mm | 12 | 15 | 20 | 20 |
| Maximum Claw Lifting Height | mm | 157 | 180 | 205 | 225 |
| Stroke | mm | 140 | 150 | 175 | 190 |
| Adjustable Claw Height | mm | 6×29 | 5×41 | 5×46 | 5×51 |
| Minimum Top Height | mm | 245 | 275 | 310 | 340 |
| Effective Claw Length | mm | 50 | 55 | 66 | 66 |
| Base Dimensions (L × W) | mm | 326×233 | 346×247 | 415×300 | 425×322 |
| Oil Capacity | L | 180cm³ | 300cm³ | 500cm³ | 730cm³ |
| Net Weight | kg | 23 | 29 | 48 | 60 |
