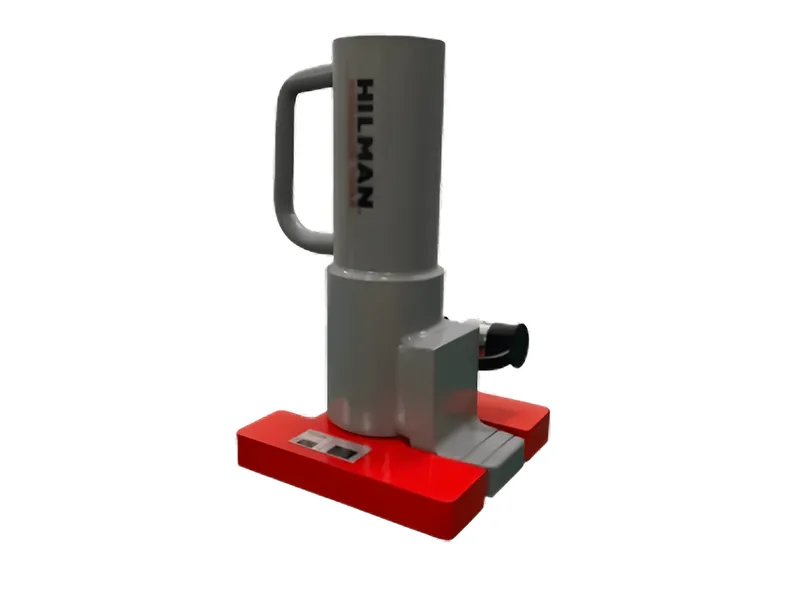

The claw can rotate 180° for convenient operation.
Equipped with a separate pump and hose, enabling remote lifting with a greater safety distance from the load.
The cylinder can rotate 360°, allowing wide-range and multi-directional operation.
The detachable pump design makes it suitable for use in confined spaces and horizontal positions.
The claw features an anti-slip pattern to increase friction with the equipment.
The jack can also be used for lateral pushing; swivel hose connectors allow flexible connection from any direction.
| ITEM | UNIT | HMDF-05S | HMDF-10S | HMDF-16S |
| Claw Load Capacity | Ton | 5 | 10 | 16 |
| Minimum Claw Height | mm | 13 | 20 | 25 |
| Stroke | mm | 245 | 260 | 200 |
| Maximum Claw Height | mm | 245 | 260 | 200 |
| Minimum Top Height | mm | 150 | 370 | 328 |
| Maximum Top Height | mm | 395 | 530 | 528 |
| Base Dimensions (L × W) | mm | 145×145 | 200×200 | 220×218 |
| Net Weight | kg | 11 | 20 | 27.5 |
