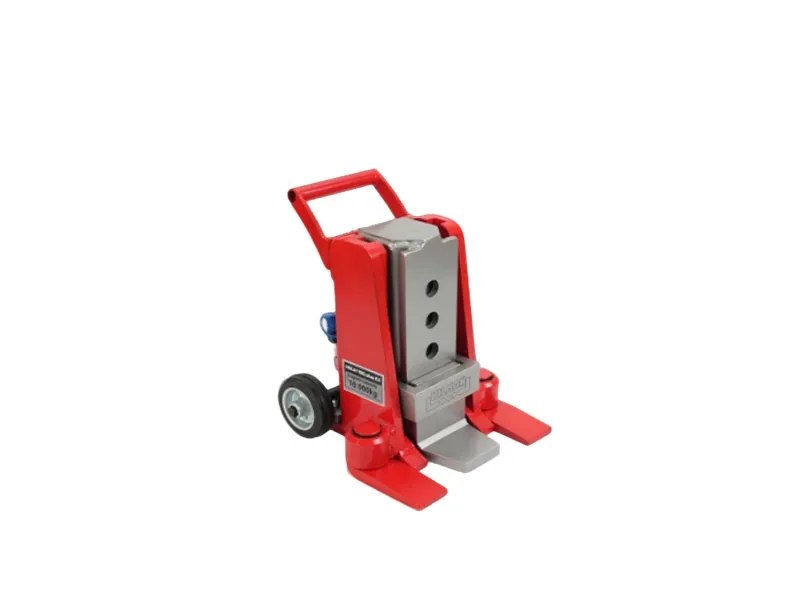

The claw part is detachable, and the lifting position can be adjusted as needed, making it suitable for lifting heavy loads of different heights.
The pump handle and jack are separated, operating safely and flexibly, and enabling remote operation.
The slide shoe guides the piston inside the guide rail. Compared with traditional jacks, this ensures better force distribution, less friction, and lower wear.
The top part can rotate 180°, creating space for effective lifting.
The claw features a tilted design that allows rotation within a ±6° range, providing smoother lifting.
Each unit is equipped with a detachable handle grip, with built-in rollers for easy relocation and lifting.
Made of alloy steel, featuring light weight and high load capacity, suitable for frequent position changes in hoisting and lifting operations.
Built-in safety relief valve prevents overloading.
Customization available for cleanroom applications and various special-purpose jacks.
| Item | Unit | 10G-EX | 15G-EX | 20G-EX | 30G-EX |
| Claw Load Capacity | Ton | 10 tons | 15 tons | 20 tons | 30 tons |
| Minimum Claw Lifting Height | mm | 15 | 20 | 20 | 20 |
| Maximum Claw Lifting Height | mm | 180 | 205 | 225 | 305 |
| Stroke | mm | 150 | 175 | 190 | 200 |
| Adjustable Claw Height | mm | 5×41 | 5×46 | 5×51 | 5×71 |
| Maximum Top Height | mm | 275 | 310 | 340 | 420 |
| Effective Claw Length | mm | 55 | 66 | 66 | 66 |
| Base Dimensions (L × W × H) | mm | 270×247 | 340×360 | 380×322 | 380×375 |
| 24h Capacity | L | 0.3 | 0.6 | 0.73 | 1.27 |
| Net Weight | kg | 24 | 41 | 52 | 92 |
