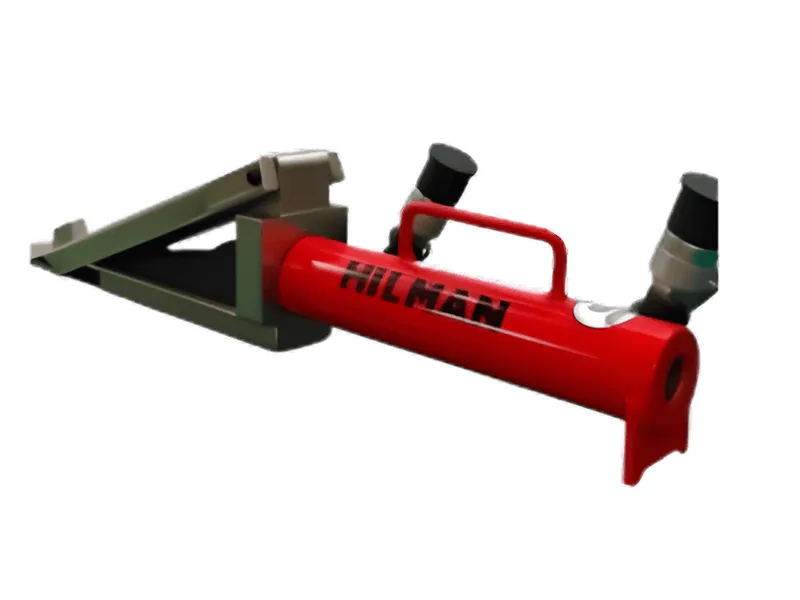

Lateral movement is adjustable; lifting is achieved by wedging, with a minimum clearance of 6 mm.
Lifting stroke up to 40 mm.
Provides safe and stable lifting and pushing motion: sandpaper, wooden blocks, or threaded rods can be used to enhance performance.
Detachable pump design allows operation in confined spaces and horizontal positions.
Pushing operation: unlike traditional wedge blocks, no reaction frame is required, enabling smooth horizontal pushing and greatly improving efficiency.
Adjustable lateral displacement: can be inserted into gaps as small as 6 mm, allowing powerful adjustment and lifting from as little as 6 mm clearance up to 40 mm height.
| Model | Capacity | Minimum Clearance | Maximum Lifting Height | Pushing Stroke | Net Weight |
| HMKP-30 | 30 tons | 6mm | 34mm | 150mm | 13KG |
| HMKP-40 | 40 tons | 6mm | 34mm | 150mm | 16.55KG |
| HMKP-50 | 50 tons | 10mm | 40mm | 150mm | 21.55KG |
