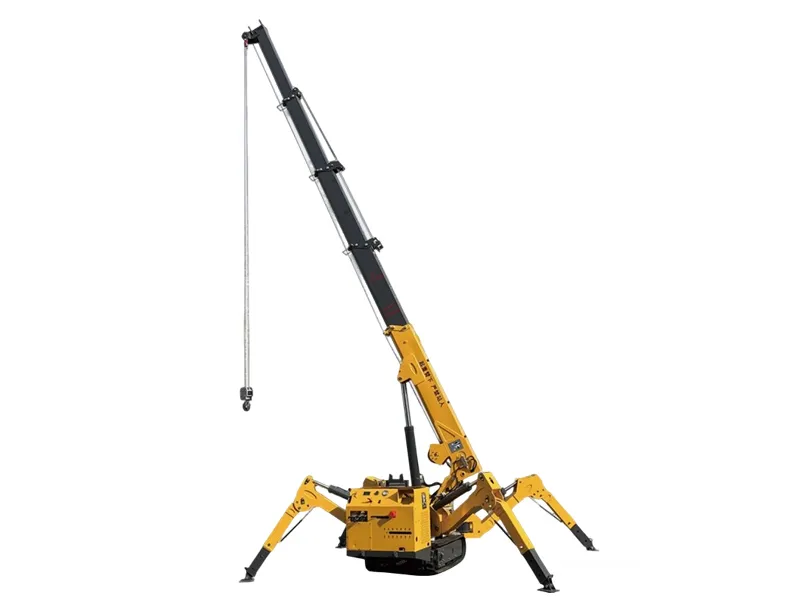

Small size, light weight, compact structure, widely used in narrowl spaces such as floor rooftop hoisting, substation maintenance, etc.
Rubber crawler chassis, no damage to the ground, suitable for various ground surfaces.
The boom is made of high-strength manganese steel, with stronger lifting capacity.
Basic Parameters of 3-ton Spider Crane | |||
Model | 3t | ||

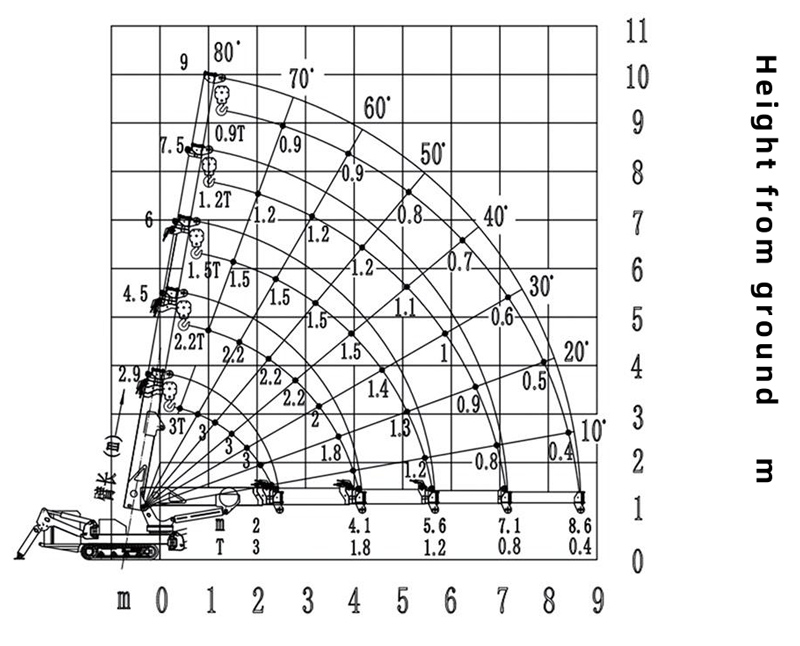

Maximum Working Radius | 8.6m×0.4t | ||
Maximum Ground Lifting Height | 9.2m | ||
Maximum Underground Lifting Height | ght 10mX1t(4 rope)20mX1t(2 rope)40mX0.74t(1 rope) | ||
Winch Device | Hook Speed | 0-8m/min(4 rope) | |
Rope Type | Φ 8 mm×40 m | ||
Telescopic System | Boom Type | Full automatic 5 section | |
TelescopicLength/Time | 3.1m-9.2m/20sec | ||
Boom Angle/Time | 0-80°/13sec | ||
Slew Angle/Time | 0-360°(Continuous)/60sec | ||
Outrigger | Outrigger movement form | Manual Spin Out, Hydraulic Telescopic, Automatic Support(Two Legs) | |

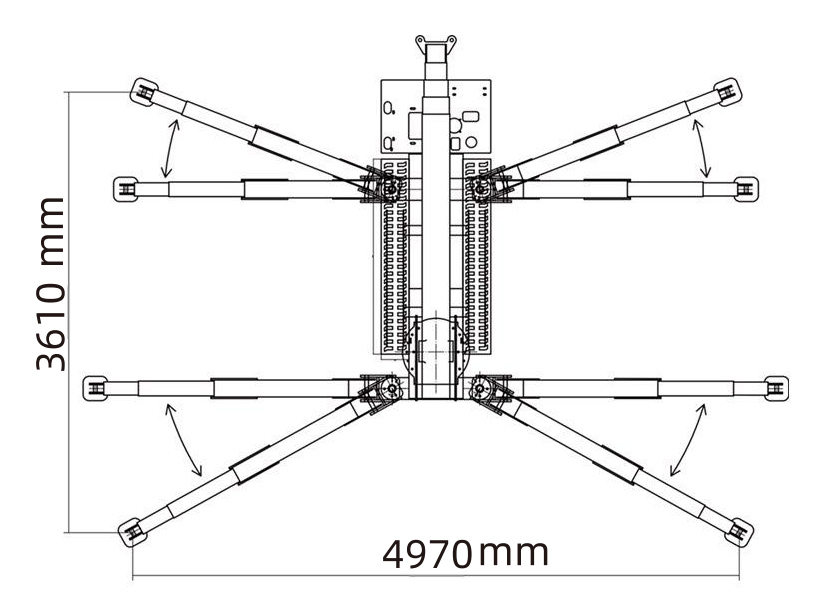

Maximum Extended Dimensions(mm) | 4970*3610 | ||
Traction system | Traction system | Hydraulicmotordriven | |
Walking Speed | 0-2.5km/h | ||
Grade Ability | 20°(36%) | ||
Power Supply Voltage | 380v | ||
Diesel Engine | Producer | Changchai | |
Model | 380/12kw | ||
Starting Method | Electric starting | ||
Operating Temperature | -5℃~40℃ | ||
Fuel Tank Capacity | diesel/30L | ||
diesel | 12v 45AH | ||
Fuel consumption rate | 274g/kW-h | ||
Noise grade | Rated speed≤81.5dBA(1m) | ||
Emission standard | National I standard | ||
Standard Features | Diesel engines and motors | ||

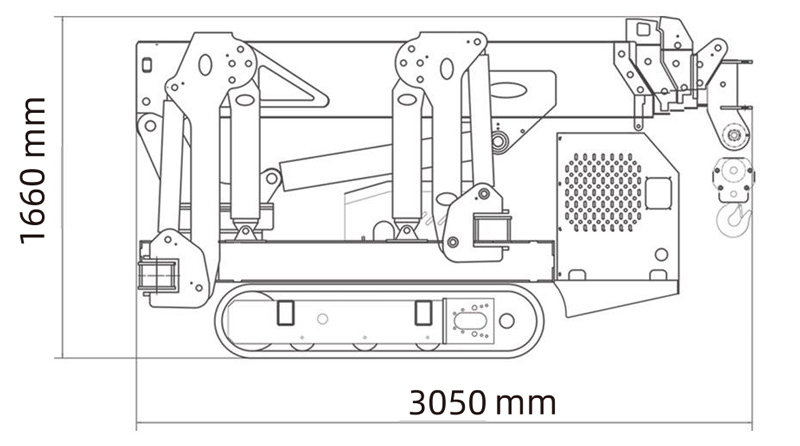

Dimension | Length×Width×Height | 3.05m×0.95m×1.66m | |
Vehicle Weight | 2.7T | ||
