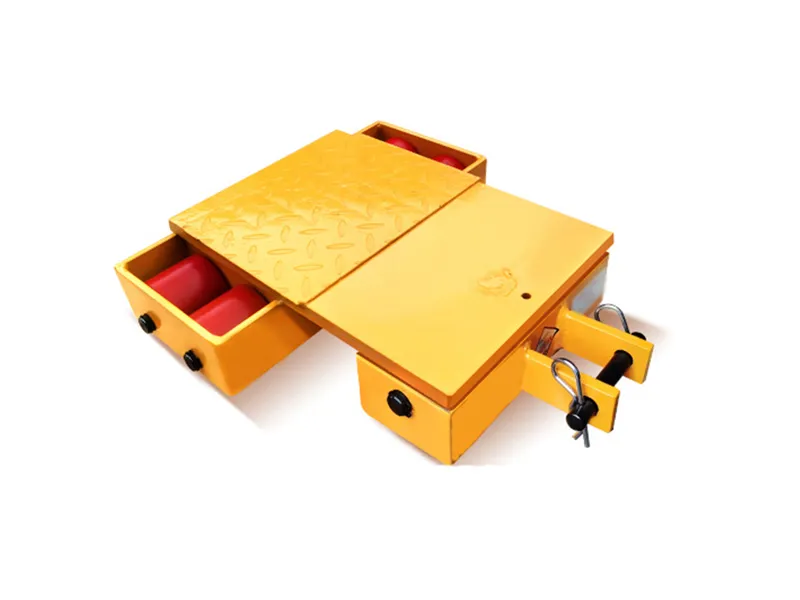

CRD Series Steering Transport Trolleys feature a specially designed turntable with multiple threaded holes. Screws securely connect the trolley to transported loads.
CRD Series Straight-Line Transport Trolleys handle single loads from 6T to 36T and can be combined for multiple units.
The CRD Straight-Line Transport Tank comes standard with rubber wheels, with nylon wheels or alloy steel wheels available as options.
Equipped with a control handle for easier and safer steering during forward movement.
Ideal for transporting heavy loads over medium to short distances, especially when used in conjunction with claw jacks and pry bars.
| Technical data | CRD6 | CRD8 | CRD10 | CRD12 |
| heightha of weels (80x 70 mm) | 110 mm/4 | 110 mm/6 | 110 mm/7 | 110 mm/8 |
| Overall dimensions | 385x 263 x 110 mm | 470x 263x 110 mm | 470x 263x 110 mm | 470x 263x 110 mm |
| Tare weight in kg | 23 kg | 30 kg | 31 kg | 32 kg |
| Load capacit | 60kN (6t) | 80kN (8t) | 100 kN (10t) | 120 kN (12t) |
