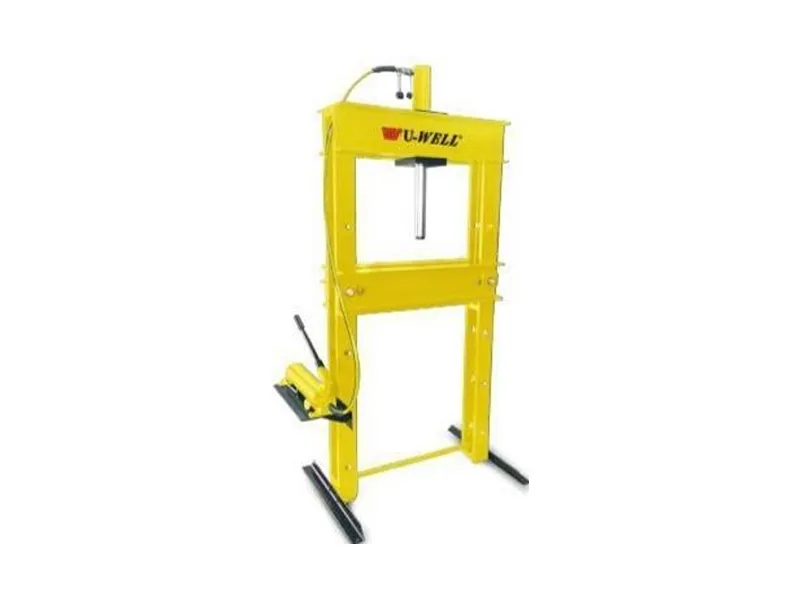

Capacity for work:10-100tons.
Maximum plate space & width: 42.0&41.5mm.
Maximum work pressure: 700bar.
Heavy welded frame is equipped to reinforce the strength and durability.
All pressure beds are equipped with heavy-duty rubber hose of 900 series in order to be durable.
25,50 and 100 tons pressure beds have a device to lift the vortex and turbine to easily adjust the plate space safetily.
Capacity (tons) | Model | Pump type | Hydraulic pump model | Hydraulic Cutterheads size | |||||
A Maximum | A Minimum | B | C | D | E | ||||
10 | IPE-1215 | IPE-220 | RC-1010 | 1016 | 62 | 一 | 1187 | 127 | 473 |
IPH-1240 | P-392 | RC-1010 | 1016 | 62 | 一 | 1187 | 127 | 473 | |
IPH-1234 | P-84 | RR-1010 | 1016 | 62 | 一 | 1187 | 127 | 473 | |
25 | IPE-2505 | IPE-220 | RC-256 | 1384 | 177 | 一 | 1447 | 301 | 736 |
IPE-2510 | IPE-220 | RC-2514 | 1384 | 177 | 一 | 1447 | 301 | 736 | |
IPH-2531 | P-80 | RC-2514 | 1384 | 177 | 一 | 1447 | 301 | 736 | |
30 | IPE-3060 | IPE-220 | RR-3014 | 1384 | 177 | 一 | 1447 | 301 | 736 |
IPH-3080 | P-84 | RR-3014 | 1384 | 177 | 一 | 1447 | 301 | 736 | |
50 | IPE-5010 | IPE-220 | RC-5013 | 1233 | 179 | 476 | 1371 | 263 | 730 |
IPH-5030 | P-462 | RC-506 | 1233 | 179 | 476 | 1371 | 263 | 730 | |
IPH-5031 | P-80 | RC-506 | 1233 | 179 | 476 | 1371 | 263 | 730 | |
IPE-5005 | IPE-220 | RC-506 | 1233 | 179 | 476 | 1371 | 263 | 730 | |
IPE-5060 | IPE-220 | RR-5013 | 1233 | 179 | 476 | 1371 | 263 | 730 | |
IPH-5080 | P-464 | RR-5013 | 1233 | 179 | 476 | 1371 | 263 | 730 | |
100 | IPE-10010 | IPE-220 | RC-10010 | 1079 | 177 | 508 | 1295 | 296 | 889 |
IPH-10030 | P-462 | RC-10010 | 1079 | 177 | 508 | 1295 | 296 | 889 | |
IPE-10060 | IPE-220 | RR-10013 | 1079 | 177 | 508 | 1295 | 296 | 889 | |
IPH-10080 | P-464 | RR-1006 | 1079 | 177 | 508 | 1295 | 296 | 889 | |
150 | IPE-15065 | IPE-220 | RR-15013 | 1231 | 317 | 711 | 1384 | 254 | 1219 |
200 | IPE-20065 | IPE-220 | RR-20013 | 1231 | 317 | 711 | 1384 | 254 | 1219 |
Hydraulic Cutterheads size | Weight(kg) | Model | ||||||||
F | G | H | J | K | L | M | N | |||
632 | 一 | 一 | 755 | 108 | 189 | 889 | 1320 | 135 | IPE-1215 | |
632 | 一 | 一 | 755 | 108 | 189 | 889 | 1320 | 71 | IPH-1240 | |
632 | 一 | 一 | 755 | 108 | 189 | 889 | 1320 | 85 | IPH-1234 | |
1028 | 101 | 336 | 762 | 133 | 271 | 673 | 1930 | 274 | IPE-2505 | |
1028 | 101 | 336 | 762 | 133 | 271 | 673 | 1930 | 313 | IPE-2510 | |
1028 | 101 | 336 | 762 | 133 | 271 | 673 | 1930 | 281 | IPH-2531 | |
1028 | 101 | 336 | 762 | 133 | 271 | 673 | 1930 | 325 | IPE-3060 | |
1028 | 101 | 336 | 762 | 133 | 271 | 673 | 1930 | 301 | IPH-3080 | |
1085 | 127 | 222 | 914 | 184 | 333 | 781 | 1930 | 495 | IPE-5010 | |
1085 | 127 | 222 | 914 | 184 | 333 | 781 | 1930 | 439 | IPH-5030 | |
1085 | 127 | 222 | 914 | 184 | 333 | 781 | 1930 | 420 | IPH-5031 | |
1085 | 127 | 222 | 914 | 184 | 333 | 781 | 1930 | 421 | IPE-5005 | |
1085 | 127 | 222 | 914 | 184 | 333 | 781 | 1930 | 499 | IPE-5060 | |
1085 | 127 | 222 | 914 | 184 | 333 | 781 | 1930 | 455 | PH-5080 | |
1295 | 171 | 222 | 914 | 222 | 395 | 841 | 1930 | 776 | IPE-10010 | |
1295 | 171 | 222 | 914 | 222 | 395 | 841 | 1930 | 751 | IPH-10030 | |
1295 | 171 | 222 | 914 | 222 | 395 | 841 | 1930 | 816 | PE-10060 | |
1295 | 171 | 222 | 914 | 222 | 395 | 841 | 1930 | 755 | PH-10080 | |
1706 | 231 | 333 | 1117 | 333 | 555 | 1212 | 2286 | 1794 | IPE-15065 | |
1706 | 231 | 333 | 1117 | 333 | 555 | 1212 | 2286 | 1794 | IPE-20065 | |
Capacity tons(kN) | Maximum daylight opening (mm) | Maximum platen width (mm) | Power type | Model | Hydraulic pump model | speed mm/sec. | ||||||
| Type | Hydraulic valve | |||||||||||
|
| stroke (mm) | Tool Feed Speed | Punching Speed | ||||||||
Hand | Electric | Hand | Electric | |||||||||
10 (89) | 1016 | 473 | ● | ● | IPE-1215 | ● | 254 | 28 | 3.8 | |||
1016 | 473 | ● | ● | IPH-1240 | ● | 254 | {7.8} | {1.7} | ||||
1016 | 473 | ● | ● | IPH-1234 | ● | 254 | {11} | {1.7} | ||||
25 (223) | 1384 | 736 | ● | ● | IPE-2505 | ○ | 152 | 16 | 1.6 | |||
1384 | 736 | ● | ● | IPE-2510 | ○ | 355 | 23 | 3.6 | ||||
1384 | 736 | ● | ● | IPH-2531 | ○ | 355 | {4.9} | {0.7} | ||||
30 (267) | 1384 | 736 | ● | ● | IPE-3060 | ● | 355 | 18 | 2.8 | |||
1384 | 736 | ● | ● | IPH-3080 | ● | 355 | {3.6} | {0.7} | ||||
50 (445) | 1233 | 730 | ● | ● | IPE-5010 | ● | 330 | 20 | 1.9 | |||
1233 | 730 | ● | ● | IPH-5030 | ● | 152 | {19} | {0.7} | ||||
1233 | 730 | ● | ● | IPH-5031 | ● | 152 | {2.3} | {0.3} | ||||
1233 | 730 | ● | ● | IPE-5005 | ● | 152 | 7.7 | 0.8 | ||||
1233 | 730 | ● | ● | IPE-5060 | 330 | 20 | 1.9 | |||||
1233 | 730 | ● | ● | IPH-5080 | ○ | 330 | {19} | {0.7} | ||||
100 (890) | 1079 | 889 | ● | ● | IPE-10010 | ● | 254 | 14 | 1.0 | |||
1079 | 889 | ● | ● | IPH-10030 | ○ | 254 | {10} | {0.4} | ||||
1079 | 889 | ● | ● | IPE-10060 | ● | 330 | 11 | 1.0 | ||||
1079 | 889 | ● | ● | IPH-10080 | 152 | {10} | {0.4} | |||||
150 (1335) | 1231 | 1219 | ● | ● | IPE-15065 | 330 | 9 | 1.4 | ||||
200 (1780) | 1231 | 1219 | ● | ● | IPE-20065 | 330 | 6.7 | 1.0 | ||||
