The machine body is compact, occupies little space, and has a wide range of applications.
The rubber track does not damage the ground and is suitable for various ground surfaces.
The safety design can prevent incorrect operation.
The boom is made of high-strength manganese steel with a stronger lifting capacity. The remote control device can be added for easy operation.
Basic Parameters of 5-ton Spider Crane | |||
Model | 5t | ||

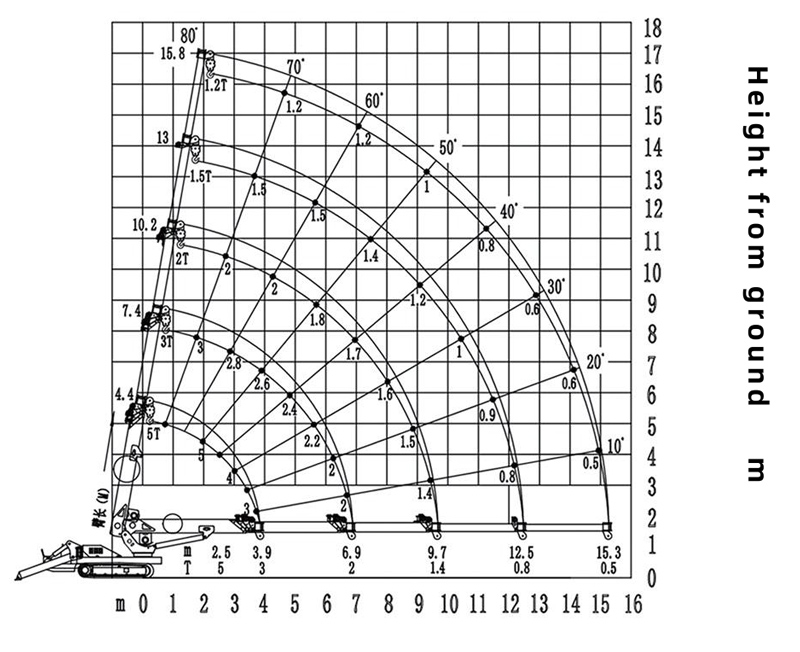

Maximum Working Radius | 15.3m×0.5t | ||
Maximum Ground Lifting Height | 16.3m | ||
Maximum Underground Lifting Height | 17m | ||
Winch Device | Hook Speed | 12m/min(4 rope) | |
Rope Type | Φ11mm×80m | ||
Telescopic System | Boom Type | Full automatic 5 section | |
TelescopicLength/Time | .4m-15.8m/20sec | ||
Boom Angle/Time | 0-80°/13sec | ||
Slew Angle/Time | 0-360°(Continuous)/60sec | ||
Outrigger | Outrigger movement form | Manual Spin Out, Hydraulic Telescopic, Automatic Support(Two Legs) | |

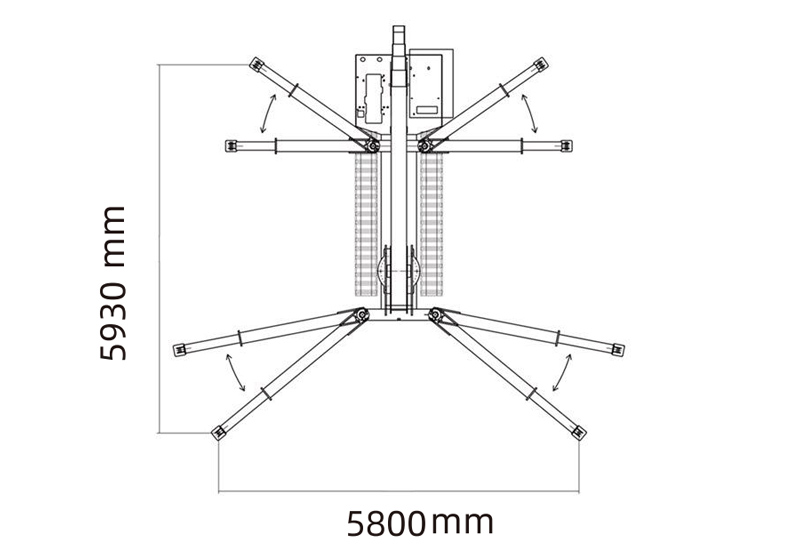

Maximum Extended Dimensions(mm) | 5800*5930 | ||
Traction system | Traction system | Hydraulicmotordriven | |
Walking Speed | 0-2.5km/h | ||
Grade Ability | 20°(36%) | ||
Power Supply Voltage | 380v | ||
Diesel Engine | Producer | ChangChai | |
Model | 490/34kw | ||
Starting Method | Electric starting | ||
Operating Temperature | -5℃~40℃ | ||
Fuel Tank Capacity | diesel/35L | ||
diesel | 24v 120AH | ||
Fuel consumption rate | 274g/kW-h | ||
Noise grade | Rated speed≤81.5dBA(1m) | ||
Emission standard | National Il standard | ||
Standard Features | Diesel engines and motors | ||

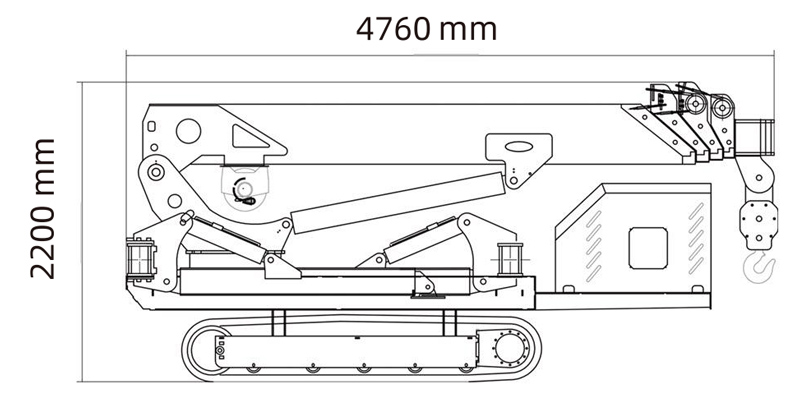

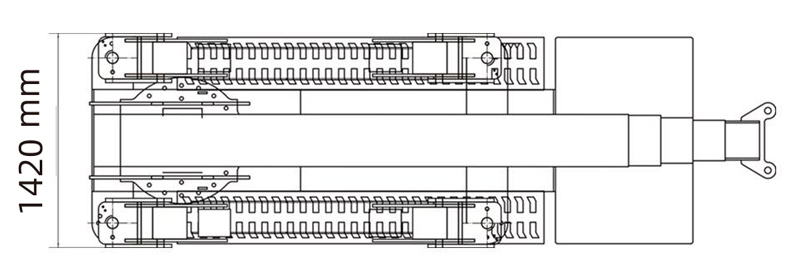

Dimension | Length×Width× Height | 4.76m×1.42m×2.2m | |
Vehicle Weight | 6.5T | ||
