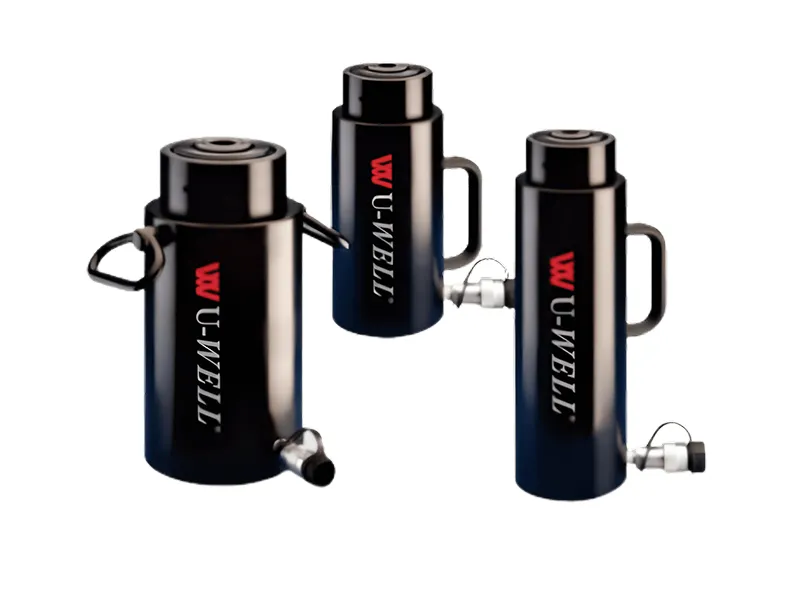

Aluminium Lock Nut provides mechanical load holding for extended periods.
Hardened steel stop ring increasing cylinder life and resistance to side-loads of up to 5%.
Hard-Coat finish on all surfaces resists damage and extends cylinder life.
Composite bearings increase cylinder life and side load resistance.
Handles included on all models.
Steel base plate and saddle for protection against load-induced damage.
Integral stopping prevents plunger over-travel and is capable of withstanding the full cylinder capacity.
High-strength return spring for rapid cylinder retraction.
CR-400 coupler and dustcap included on all models.
All cylinders meet ASME B-30.1 and ISO 10100 standards.
@700 bar Cylinder Capacity ton(kN) | Stroke (mm) | Model Number* | Cylinder Effective Area (cm) |
20(218) | 50 | RACL-202 | 31.2 |
100 | RACL-204 | 31.2 | |
150 | RACL-206 | 31.2 | |
200 | RACL-208 | 31.2 | |
250 | RACL-2010 | 31.2 | |
30(309) | 50 | RACL-302 | 44.2 |
100 | RACL-304 | 44.2 | |
150 | RACL-306 | 44.2 | |
200 | RACL-308 | 44.2 | |
250 | RACL-3010 | 44.2 | |
50(496) | 50 | RACL-502 | 70.9 |
100 | RACL-504 | 70.9 | |
150 | RACL-506 | 70.9 | |
200 | RACL-508 | 70.9 | |
250 | RACL-5010 | 70.9 | |
100(1002) | 50 | RACL-1002 | 143.1 |
100 | RACL-1004 | 143.1 | |
150 | RACL-1006 | 143.1 | |
200 | RACL-1008 | 143.1 | |
250 | RACL-10010 | 143.1 | |
150(1589) | 50 | RACL-1502 | 227.0 |
100 | RACL-1504 | 227.0 | |
[ 150 | RACL-1506 | 227.0 | |
200 | RACL-1508 | 227.0 | |
250 | RACL-15010 | 227.0 |
Optional Bolt-on Tilt Saddle Dimensions(mm) | ||||
For Cylinder Model/Capacity ton | Tilt Saddle Model Number | Tilt Saddle Diameter J1 | Saddle Protrusion from Plunger K1 |
|
RACL-50 | CATG-50 | 50 | 24 | |
RACL-100 | CATG-150 | 91 | 31 | |
RACL-150 | CATG-200 | 118 | 35 | |
Steel Base Plate Mounting Holes | |||
Cylinder Model/ Capacity ton | Bolt Circle U (mm) | Thread V (mm) | Thread Depth” Z (mm) |
RACL-20 | 70 | M6 | 12 |
RACL-30 | 80 | M6 | 12 |
RACL-50 | 110 | M6 | 12 |
RACL-100 | 150 | M10 | 12 |
RACL-150 | 200 | M10 | 12 |
Including Base Plate Height of 6mm
Oil Capacity (cm²) | Height A (mm) | Extended Height (mm) | Outside Diameter D (mm) | Cylinder Bore Diameter E (mm) | Plunger Diameter F (mm) | Bottom to Advance Port H (mm) | Saddle Diameter J (mm) | Saddle Protrusion from Plunger (mm) | Locknut Height S (mm) | Weight (kg) | Model Number* |
156 | 224 | 274 | 85 | 63 | Tr 55×4 | 27 | 40 | 3 | 50 | 4.0 | RACL-202 |
312 | 274 | 374 | 85 | 63 | Tr 55×4 | 27 | 40 | 3 | 50 | 4.6 | RACL-204 |
468 | 324 | 474 | 85 | 63 | Tr 55×4 | 27 | 40 | 3 | 50 | 5.2 | RACL-206 |
624 | 374 | 574 | 85 | 63 | Tr 55×4 | 27 | 40 | 3 | 50 | 5.8 | RACL-208 |
780 | 424 | 674 | 85 | 63 | Tr 55×4 | 27 | 40 | 3 | 50 | 6.4 | RACL-2010 |
221 | 231 | 281 | 100 | 75 | Tr 60×4 | 33 | 40 | 3 | 50 | 5.4 | RACL-302 |
442 | 281 | 381 | 100 | 75 | Tr 60×4 | 33 | 40 | 3 | 50 | 6.1 | RACL-304 |
663 | 331 | 481 | 100 | 75 | Tr 60×4 | 33 | 40 | 3 | 50 | 6.8 | RACL-306 |
883 | 381 | 581 | 100 | 75 | Tr 60×4 | 33 | 40 | 3 | 50 | 7.5 | RACL-308 |
1105 | 431 | 681 | 100 | 75 | Tr 60×4 | 33 | 40 | 3 | 50 | 8.2 | RACL-3010 |
354 | 236 | 286 | 130 | 95 | Tr 80×4 | 30 | 50 | 3 | 50 | 9.3 | RACL-502 |
709 | 286 | 386 | 130 | 95 | Tr 80×4 | 30 | 50 | 3 | 50 | 10.6 | RACL-504 |
1063 | 336 | 486 | 130 | 95 | Tr 80×4 | 30 | 50 | 3 | 50 | 11.9 | RACL-506 |
1417 | 386 | 586 | 130 | 95 | Tr 80×4 | 30 | 50 | 3 | 50 | 13.2 | RACL-508 |
1771 | 436 | 686 | 130 | 95 | Tr 80×4 | 30 | 50 | 3 | 50 | 14.5 | RACL-5010 |
716 | 296 | 346 | 180 | 135 | Tr 110×6 | 46 | 94 | 3 | 75 | 21.9 | RACL-1002 |
1431 | 346 | 446 | 180 | 135 | Tr 110×6 | 46 | 94 | 3 | 75 | 24.2 | RACL-1004 |
2147 | 396 | 546 | 180 | 135 | Tr 110×6 | 46 | 94 | 3 | 75 | 26.5 | RACL-1006 |
2863 | 446 | 646 | 180 | 135 | Tr 110×6 | 46 | 94 | 3 | 75 | 28.8 | RACL-1008 |
3578 | 496 | 746 | 180 | 135 | Tr 110×6 | 46 | 94 | 3 | 75 | 31.1 | RACL-10010 |
1135 | 323 | 373 | 230 | 170 | Tr 140×6 | 51 | 113 | 3 | 80 | 32.2 | RACL-1502 |
2270 | 373 | 473 | 230 | 170 | Tr 140×6 | 51 | 113 | 3 | 80 | 36.2 | RACL-1504 |
3405 | 423 | 573 | 230 | 170 | Tr 140×6 | 51 | 113 | 3 | 80 | 40.2 | RACL-1506 |
4540 | 473 | 673 | 230 | 170 | Tr 140×6 | 51 | 113 | 3 | 80 | 44.2 | RACL-1508 |
5675 | 523 | 773 | 230 | 170 | Tr 140×6 | 51 | 113 | 3 | 80 | 48.2 | RACL-15010 |
