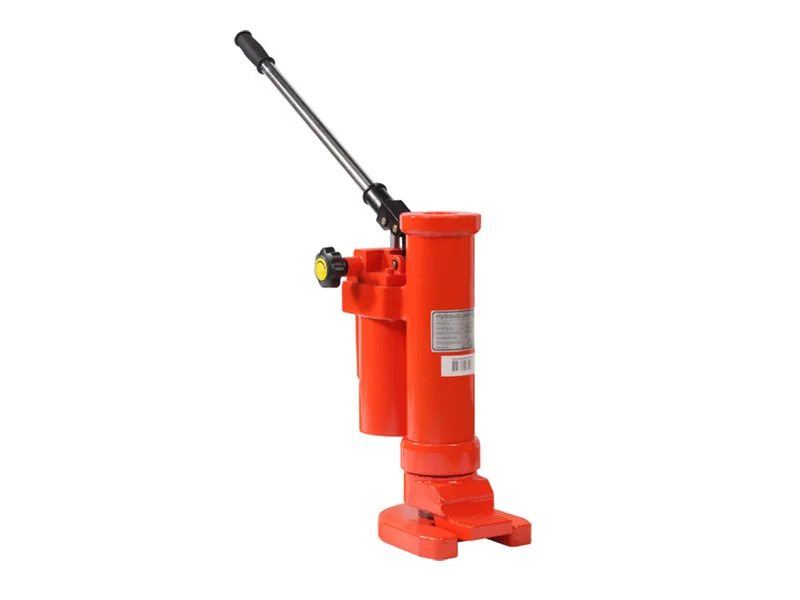

Industrial requirements, quality assurance, compliant with American ASME B30.1 and European CE safety standards.
Aluminum alloy valve body for enhanced aesthetics and lightweight design.
Entire cylinder body rotates 360 degrees.
Controllable unloading valve facilitates precise positioning.
Primarily used in lifting equipment where space is limited between machinery and the ground.
| Technical data | HK05 | HK10 | HK25 |
| Full load capacity | 50 kN (5 t) | 100 kN (10 t) | 250 kN (25 t) |
| Toe Min height | 25 mm | 30 mm | 58 mm |
| Lifting stroke | 230 mm | 260 mm | 273 mm |
| Base size | 203×140 mm | 190×170 mm | 377×210 mm |
| Packing size | 365×200×430 mm | 380×225×485 mm | 540×320×615 mm |
| Weight | 25 kg | 35 kg | 102 kg |
