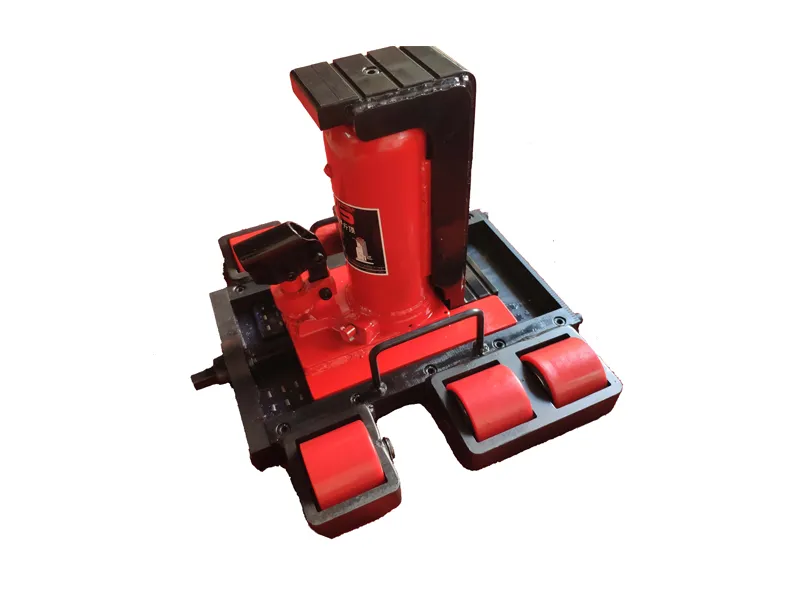

The roller-equipped sliding platform jack enables forward, backward, left, and right movement, as well as vertical lifting.
It allows 100mm of horizontal movement, ideal for precise fine adjustments.
Operating the ratchet handle facilitates easy and safe movement of heavy loads.
The roller-type mobile jack features a guide rail mechanism, with the sliding platform tightly integrated to the jack. Polyurethane casters ensure safe mobility.
To ensure stable installation, a minimum of two units must be used.
Primarily used for installing and fine-tuning large machinery.
| Technical data | FR-60TL | FR-100TL | FR-200TL |
| Full load capacity | 30 kN (3 t) | 50 kN (5 t) | 100 kN (10 t) |
| Toe Min height | 50 mm | 44 mm | 51 mm |
| Toe length | 100 mm | 75 mm | 100 mm |
| Lifting stroke | 62 mm | 65 mm | 137 mm |
| Slide width | 100 mm | 100 mm | 100 mm |
| Base length | 422 mm | 443 mm | 443 mm |
| Base width | 345 mm | 375 mm | 375 mm |
| Min height | 205 mm | 252 mm | 268 mm |
| Weight | 28 kg | 39 kg | 50 kg |
